Service and maintenance
8.4 Replacing the fuses in the 3RM19 fuse module
SIRIUS 3RM1 motor starter
138 Manual, 06/2016, A5E0345285095020A/RS-AE/005

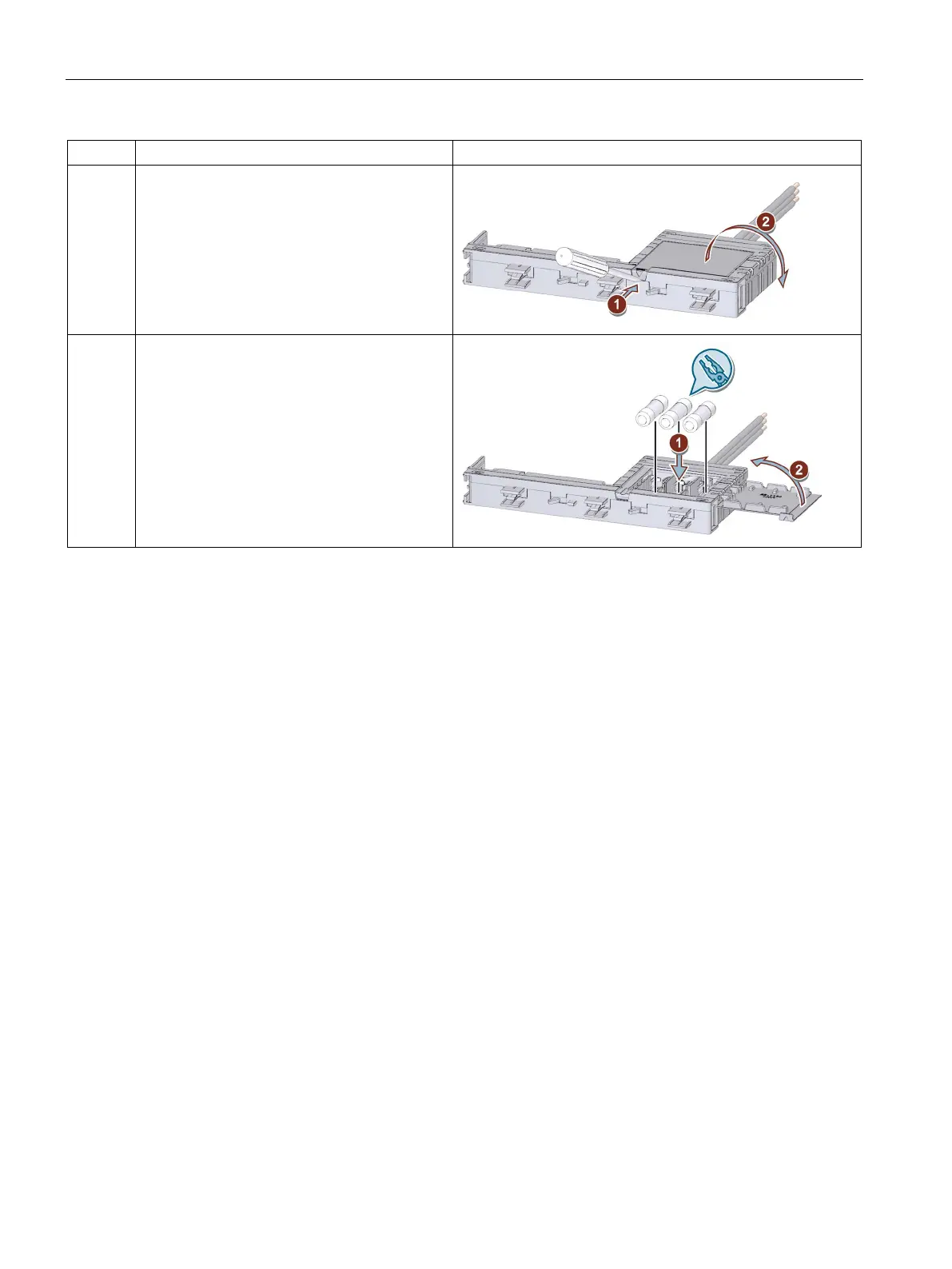

2 Turn the module onto its side so that the cover
of the fuse compartment is facing upwards.
1. Use a screwdriver to lift up the locking
device on the fuse compartment.
2. Open the flap of the fuse compartment.
3
1. Use a pair of pliers to remove the defective
fuses from the fuse compartment.
Use a pair of pliers to insert new fuses of an
identical type.
2. Close the fuse compartment.
3. Install and connect up the motor starter
again.
4. Place the fuse module on the adapter again.
For further information about dismantling and installation procedures, see the following
chapters:
● "Disassembling devices from a fuse module (Page 92)"
● "Dismantling the fuse module (Page 95)".
● "Mounting the fuse module (Page 93)"
● "Mounting the devices on a fuse module (Page 91)"
For further information about connection and disconnection procedures, see chapter
"Connecting the fuse module (option) (Page 124)".
