Configuration
4.5 Ambient conditions
SIRIUS 3RM1 motor starter
64 Manual, 06/2016, A5E0345285095020A/RS-AE/005
Dimension drawing showing clearance to be maintained from grounded parts for the RM1 motor
starter
a =
50 mm
b =
3.5 mm

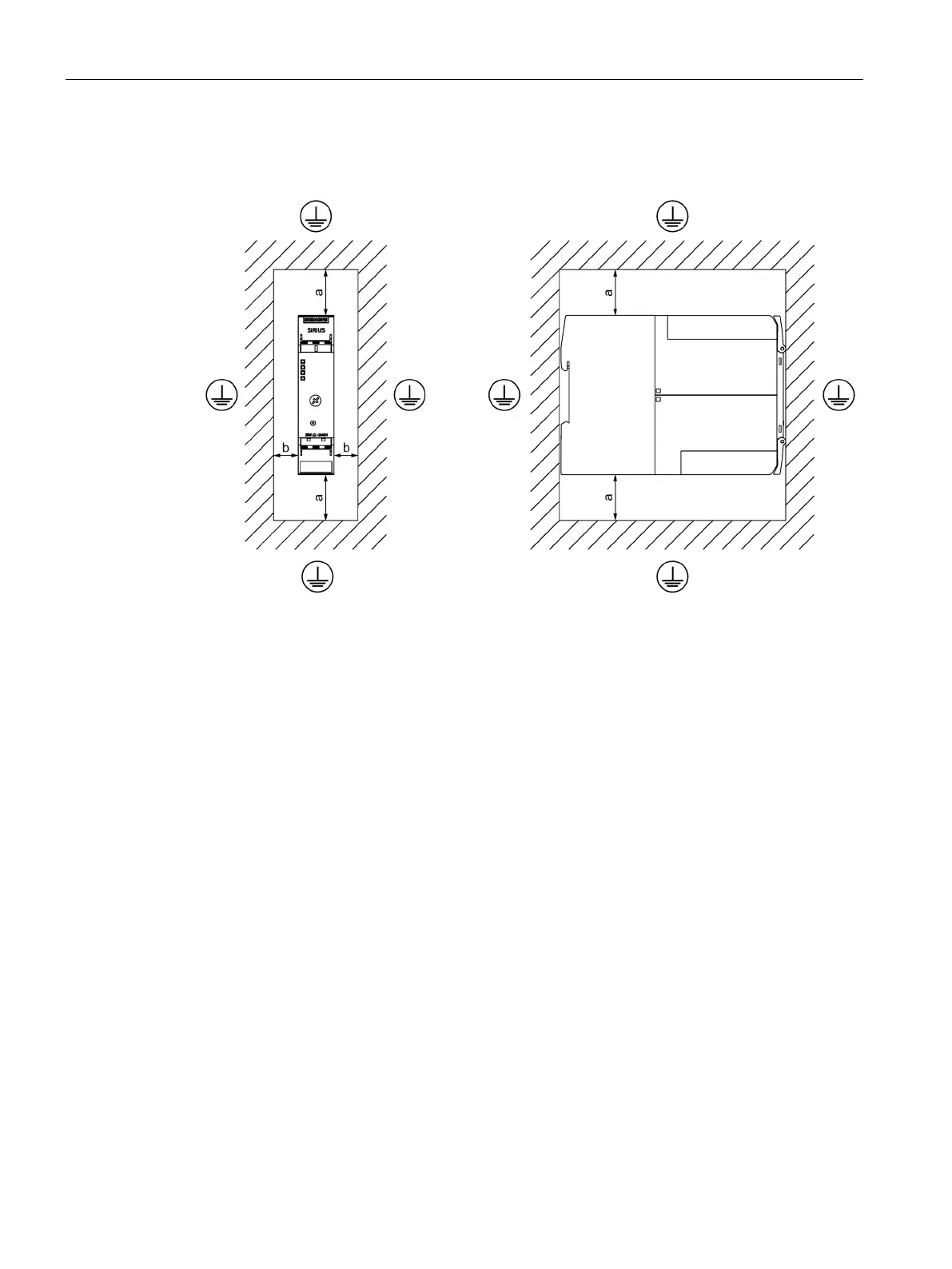

Figure 4-1 Dimension drawing 3RM1 with grounding clearances, side and front
