Configuration
4.9 Examples/applications
SIRIUS 3RM1 motor starter
Manual, 06/2016, A5E0345285095020A/RS-AE/005
85
SIRIUS 3SK1 Advanced basic unit
SIRIUS 3RM1 Failsafe (3RM11 Failsafe or 3RM13 Failsafe) safety-related motor starters
SIRIUS 3RV2 motor starter protector
SIRIUS 3SU1 EMERGENCY STOP

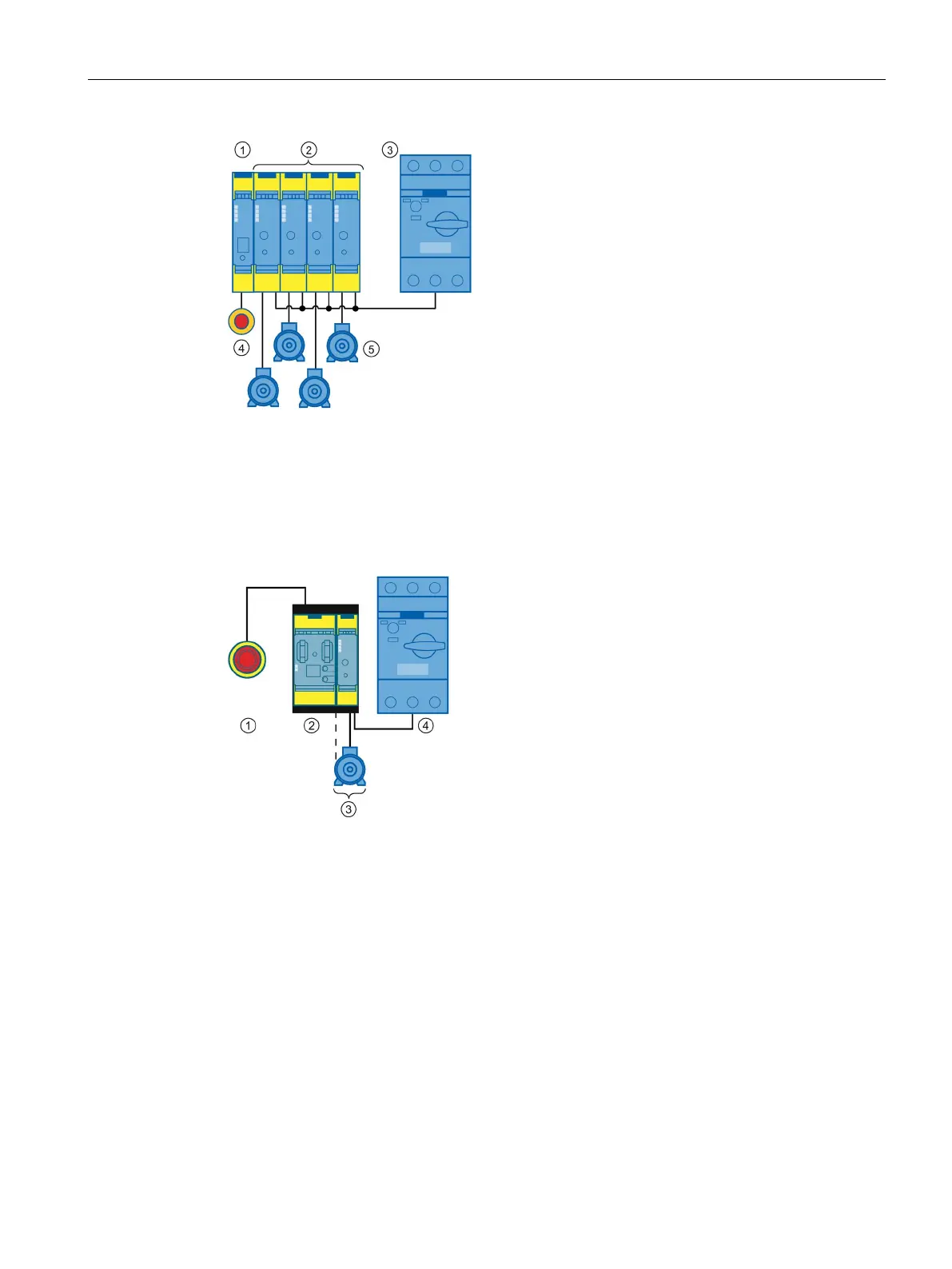

Figure 4-8 Configuration with 3SK1 safety relay and device connectors
SIRIUS 3SU1 EMERGENCY STOP
3RM1 Failsafe motor starter and motor
SIRIUS RV2 motor starter protector
Figure 4-9 Configuration with 3SK2 safety relay and device connectors
You will find further information on operation in safety-related applications in the 3SK safety
relay manuals, see Chapter "Further documentation (Page 13)." Follow the safety
instructions and information contained there.
You will find more typical circuits in the Appendix "Typical circuits (Page 167)."
