7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
101
Mounting the direct-on-line starter (size S2)
The figure below shows the work steps for mounting the direct-on-line starter in size S2.
①/② Hook the feeder into the upper hooking position of the motor starter protector, and swivel
the feeder to the busbar adapter.
③ Press the lock on the contactor down using a screwdriver, and push the feeder onto the
DIN rail of the busbar adapter.
④ Insert the connecting cables into the corresponding main conductor terminals. Screw the
main conductor terminals tight.

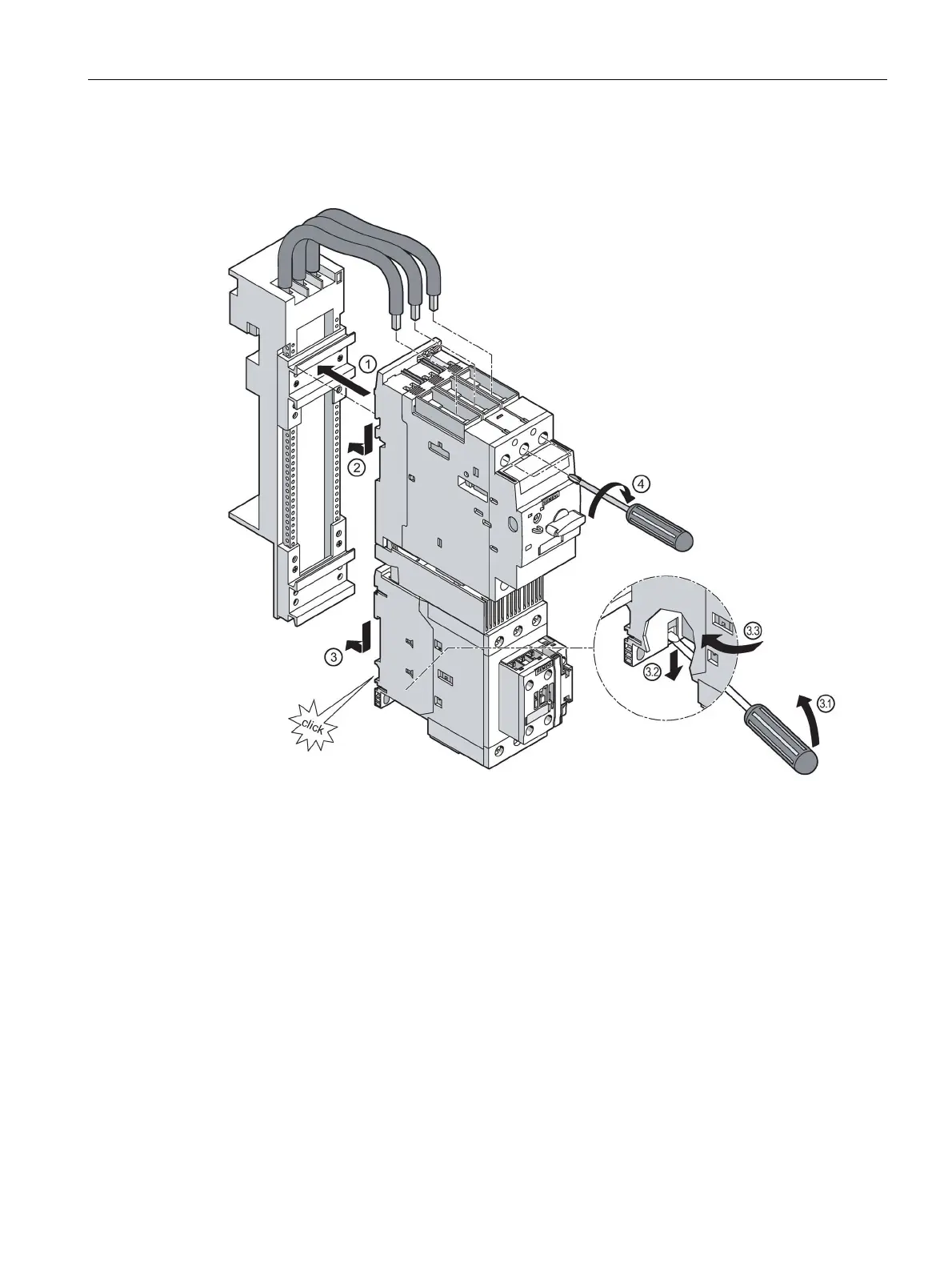

Figure 7-43 Mounting on the busbar adapter (direct-on-line starter, screw-type connection system,
size S2)
