Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
68 Manual, 09/2016, A5E03656507520A/RS-AB/003

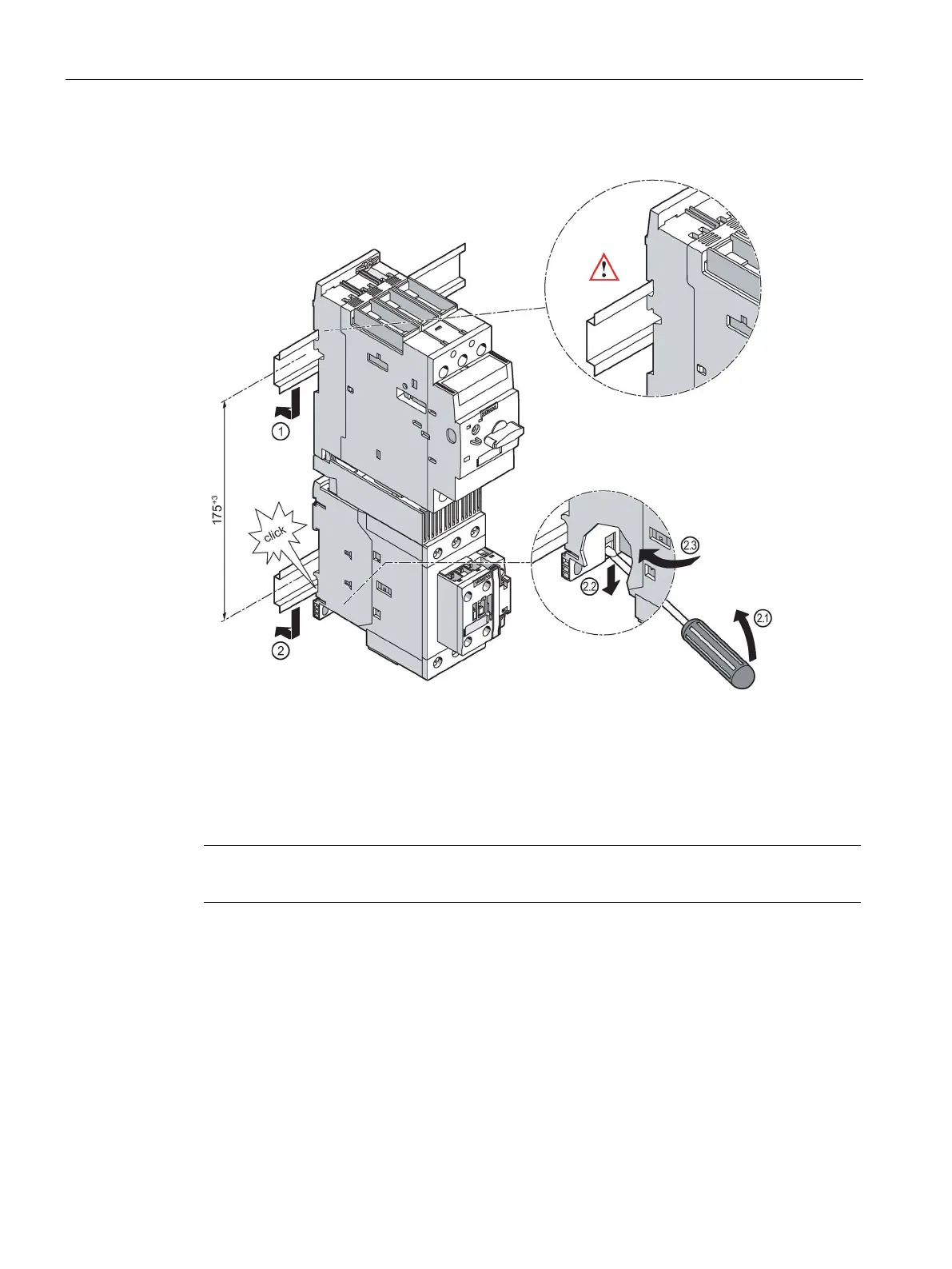

Place the feeder (upper hooking position of the motor starter protector) on the upper edge of
the DIN rail, and press it down as shown in the figure.
Press the locking device down with a screwdriver. (2.1 / 2.2) Then push the device back with a
swivel action so that it snaps onto the DIN rail. (2.3)
Figure 7-23 Mounting on DIN rail without adapter (size S2)
Note
Disassemble by carrying out the above steps in reverse order for all sizes.
