Mounting
7.2 Mounting and disassembling load feeders
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
63
Mounting an S0 load feeder with hybrid connection system
Insert the connectors (a) on the link module into the corresponding main conductor
terminals (a) on the contactor. Make sure that the guide tabs are inserted into the slots on the
contactor.
Insert the guide tabs (c) into the corresponding slots at the same time.
The link module will sit flush with the contactor on the left- and right-hand sides.

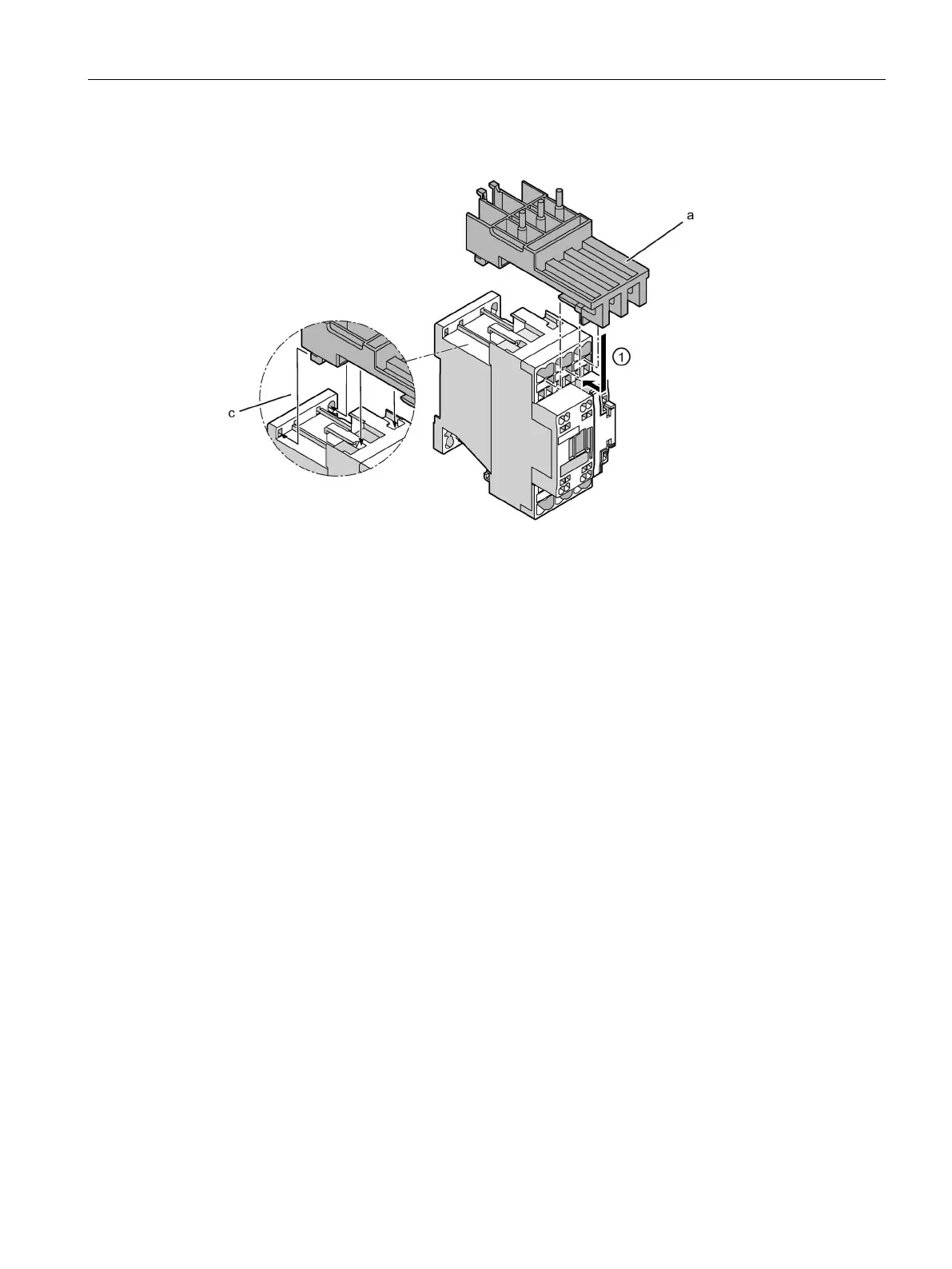

Figure 7-19 Mounting an S0 load feeder with hybrid connection system
