Mounting
7.2 Mounting and disassembling load feeders
SIRIUS - SIRIUS 3RA load feeders
64 Manual, 09/2016, A5E03656507520A/RS-AB/003
Attach the contactor and the link module to the bottom of the motor starter protector. Check the
Insert the pins into the corresponding main conductor terminal.
Screw all connectors tight.

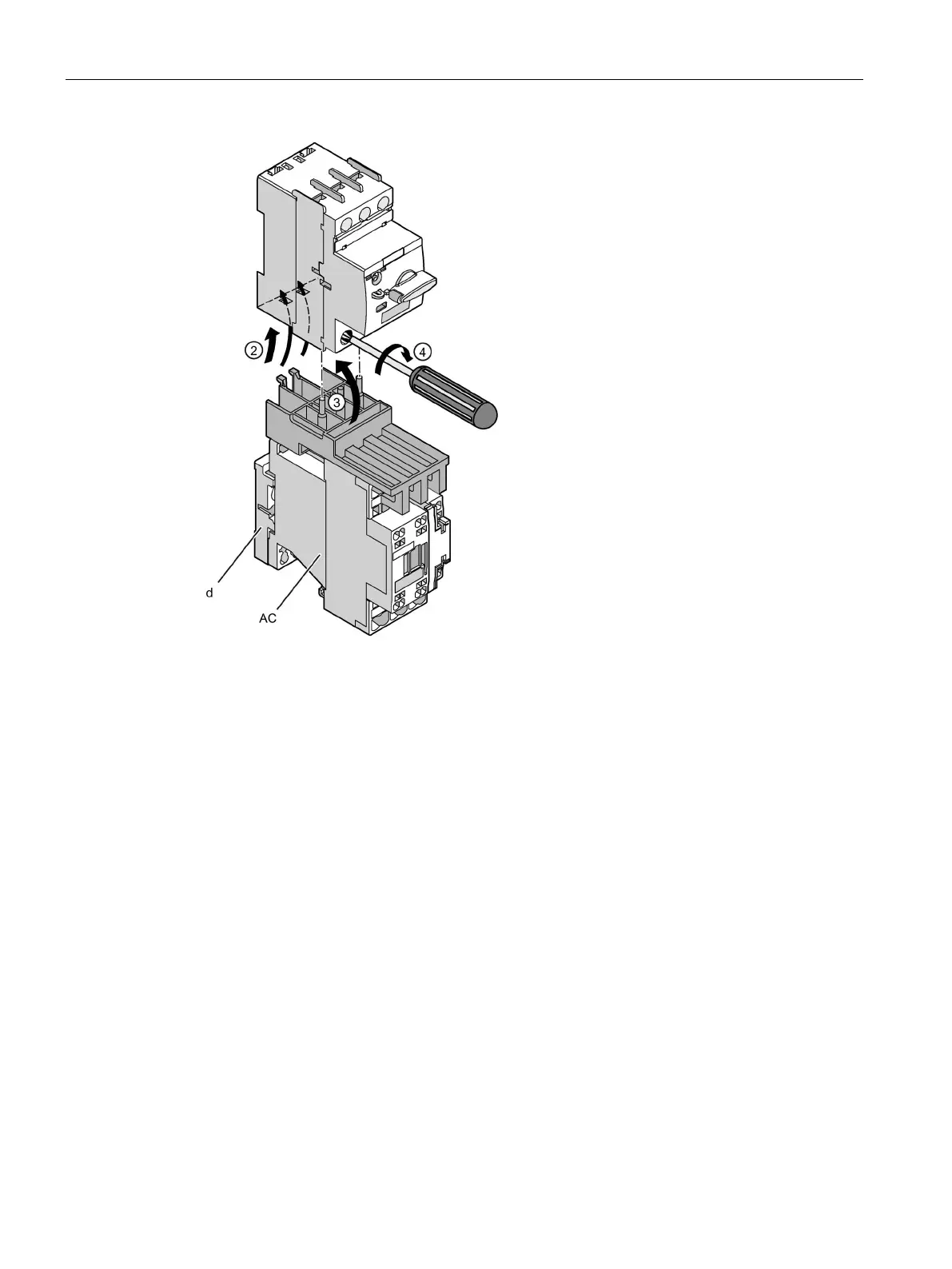

Figure 7-20 Mounting an S0 load feeder with hybrid connection system
