Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
98 Manual, 09/2016, A5E03656507520A/RS-AB/003
Mounting components on the busbar adapter

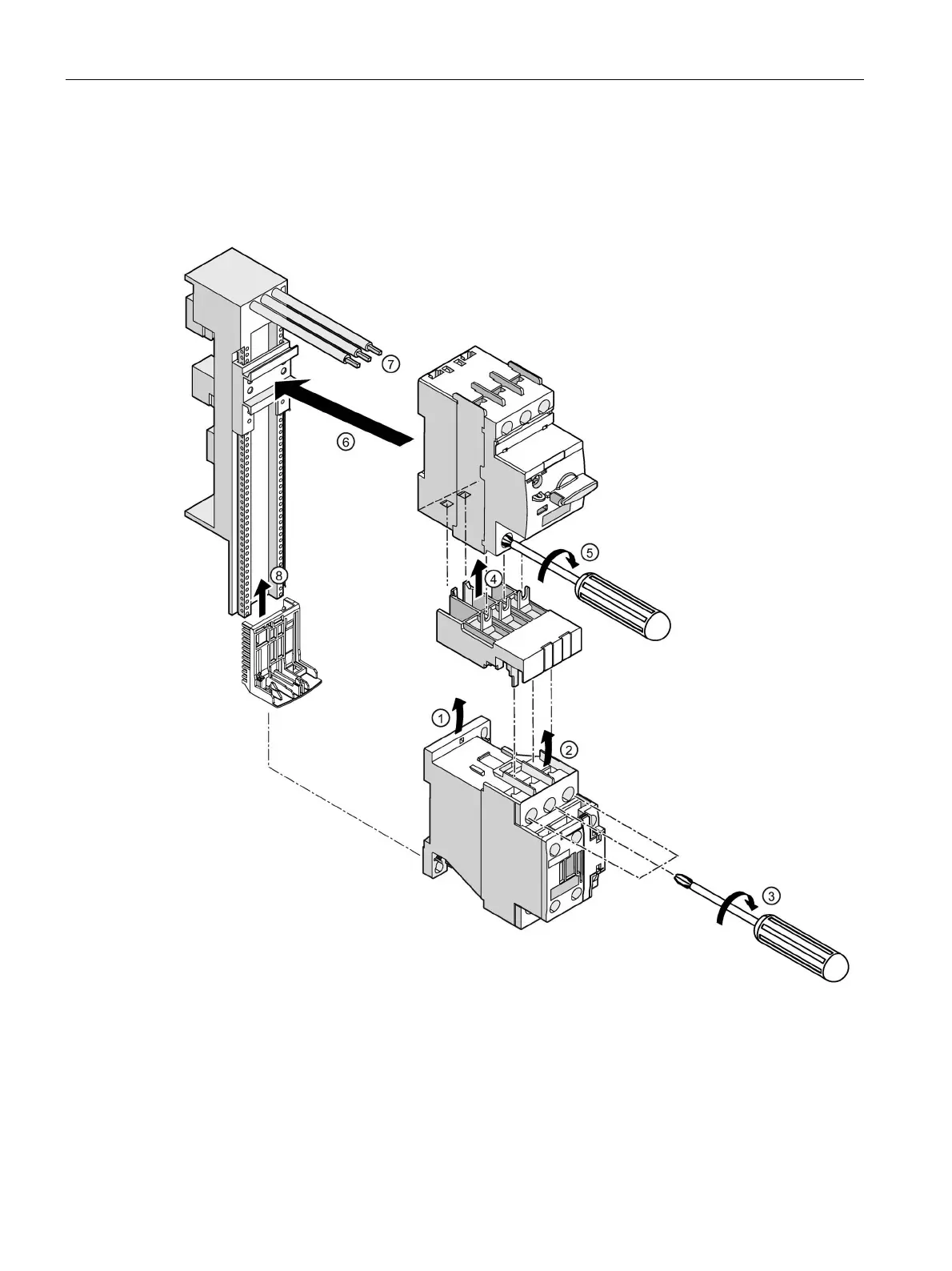

Mounting the direct-on-line starter (sizes S00 and S0)
The load feeder components can be attached to the busbar adapter without tools.
① Mount the link module on the contactor.
② Insert the connectors into the corresponding main conductor terminals.
③ Screw the main conductor terminals tight.
④ Place the contactor and the link module on the bottom of the motor starter protector. Insert the guide tabs into the
slots on the motor starter protector. Insert the connectors into the corresponding main conductor terminals at the
same time.
