Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
74 Manual, 09/2016, A5E03656507520A/RS-AB/003
7.3.2.1 Mounting direct-on-line starters and reversing starters on DIN rail adapters
(sizes S00 and S0)
Mounting the DIN rail adapter on the DIN rail
The DIN rail adapter snaps onto the DIN rail (no tools are required).
Mounting the direct-on-line starter / reversing starter on the DIN rail adapter: Size S00 and S0

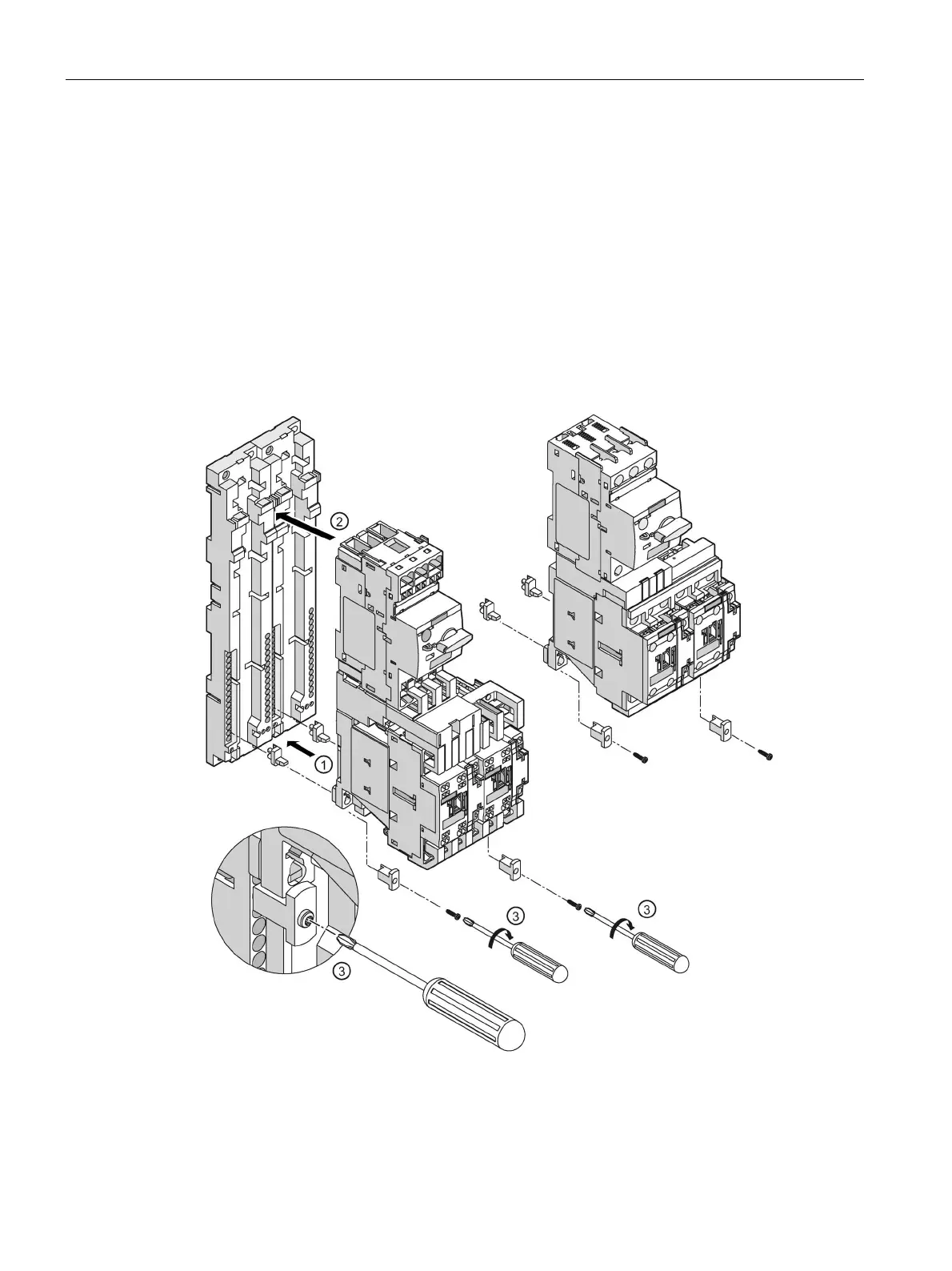

The figure below illustrates DIN rail adapter mounting using the example of the size S0
reversing starter with spring-loaded connection system and screw-type connection system.
The devices are snapped onto the DIN rail adapter and screwed onto the adapter.
Left Size S0 reversing starter with DC operation and spring-loaded connection system
Right Size S0 reversing starter with DC/AC operation and screw-type connection system
