Dimension drawings (dimensions in mm)
C.2 3RA2 fuseless load feeders – Size S00 to S3 for DIN rail
SIRIUS - SIRIUS 3RA load feeders
156 Manual, 09/2016, A5E03656507520A/RS-AB/003
3RA2 fuseless load feeders – Size S3 for DIN rail
Note
The following versions of the fuseless load feeder are not available as 3RA2
pre-assembled
combinations.

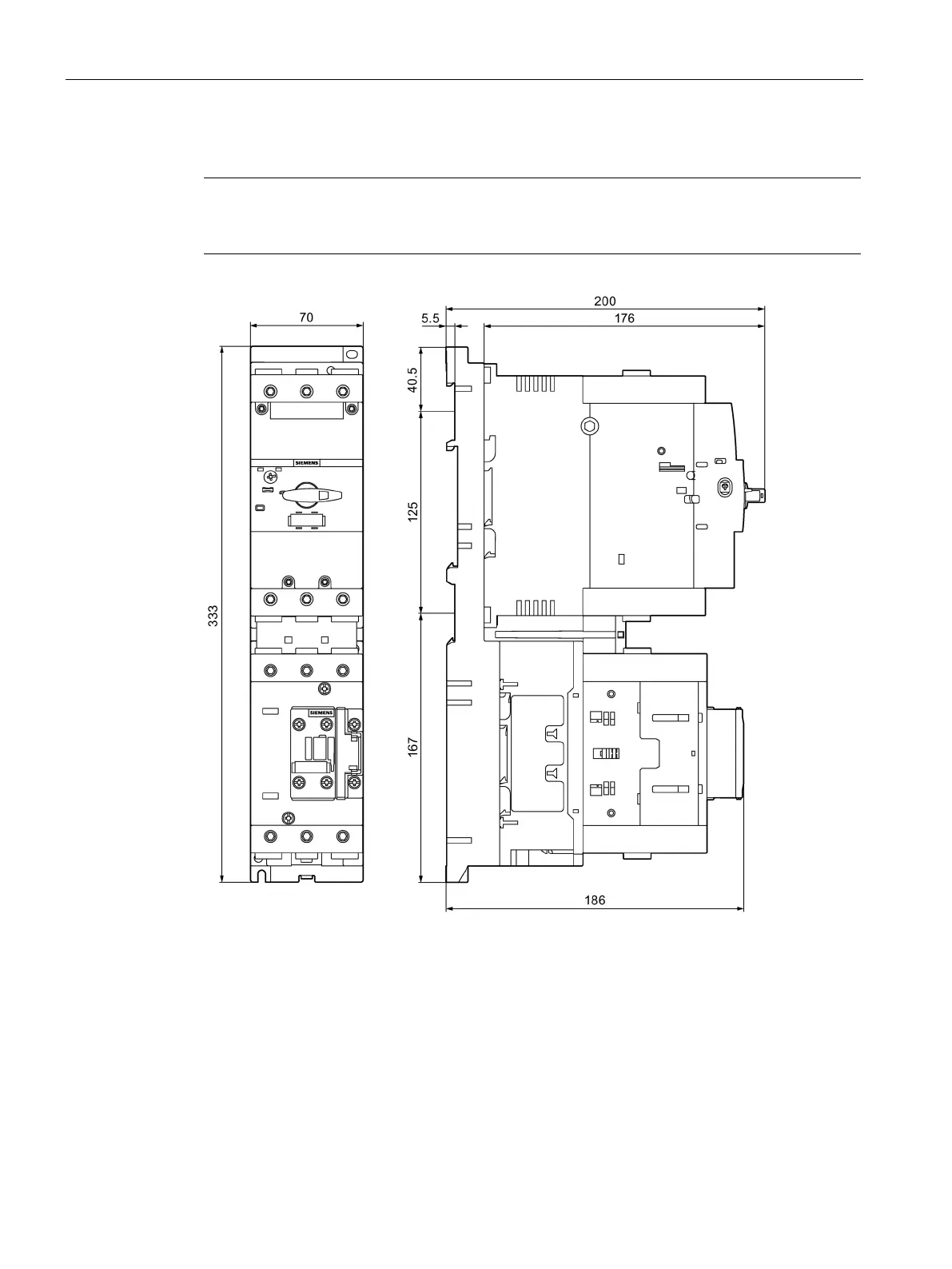

Figure C-20 Direct-on-line starter S3, screw-type connection system, DIN rail
adapter 3RA2942-1AA00
