Dimension drawings (dimensions in mm)
C.2 3RA2 fuseless load feeders – Size S00 to S3 for DIN rail
SIRIUS - SIRIUS 3RA load feeders
144 Manual, 09/2016, A5E03656507520A/RS-AB/003
C.2
3RA2 fuseless load feeders – Size S00 to S3 for DIN rail
3RA2 fuseless load feeders – Size S00 for DIN rail

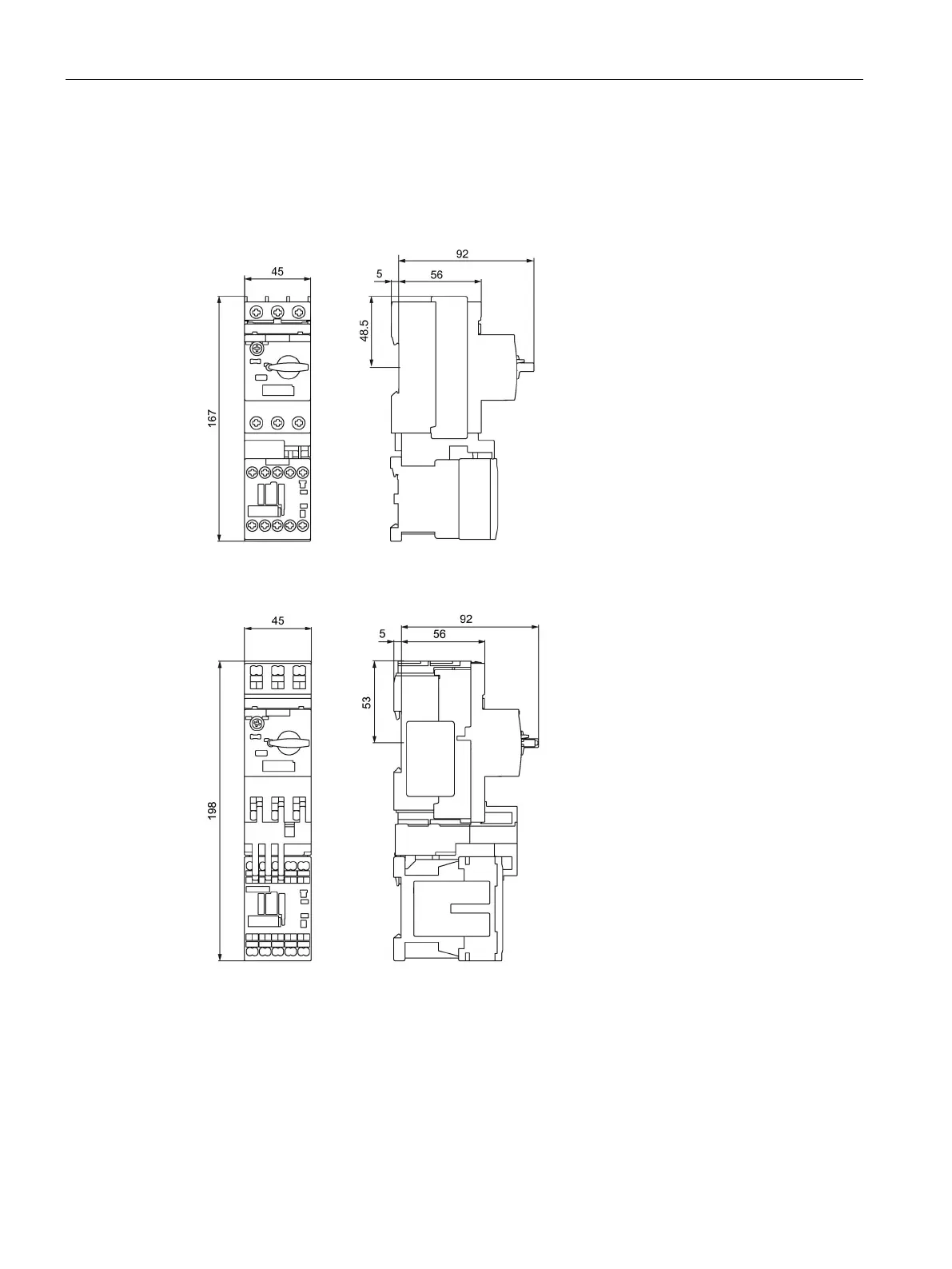

Figure C-1 S00 direct-on-line starter, AC/DC, screw-type connection system
3RA2110-..A
Figure C-2 S00 direct-on-line starter, AC/DC, spring-loaded connection system
3RA2110-..E
