Mounting
7.2 Mounting and disassembling load feeders
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
65
Main conductor terminals on the contactor (size S0)

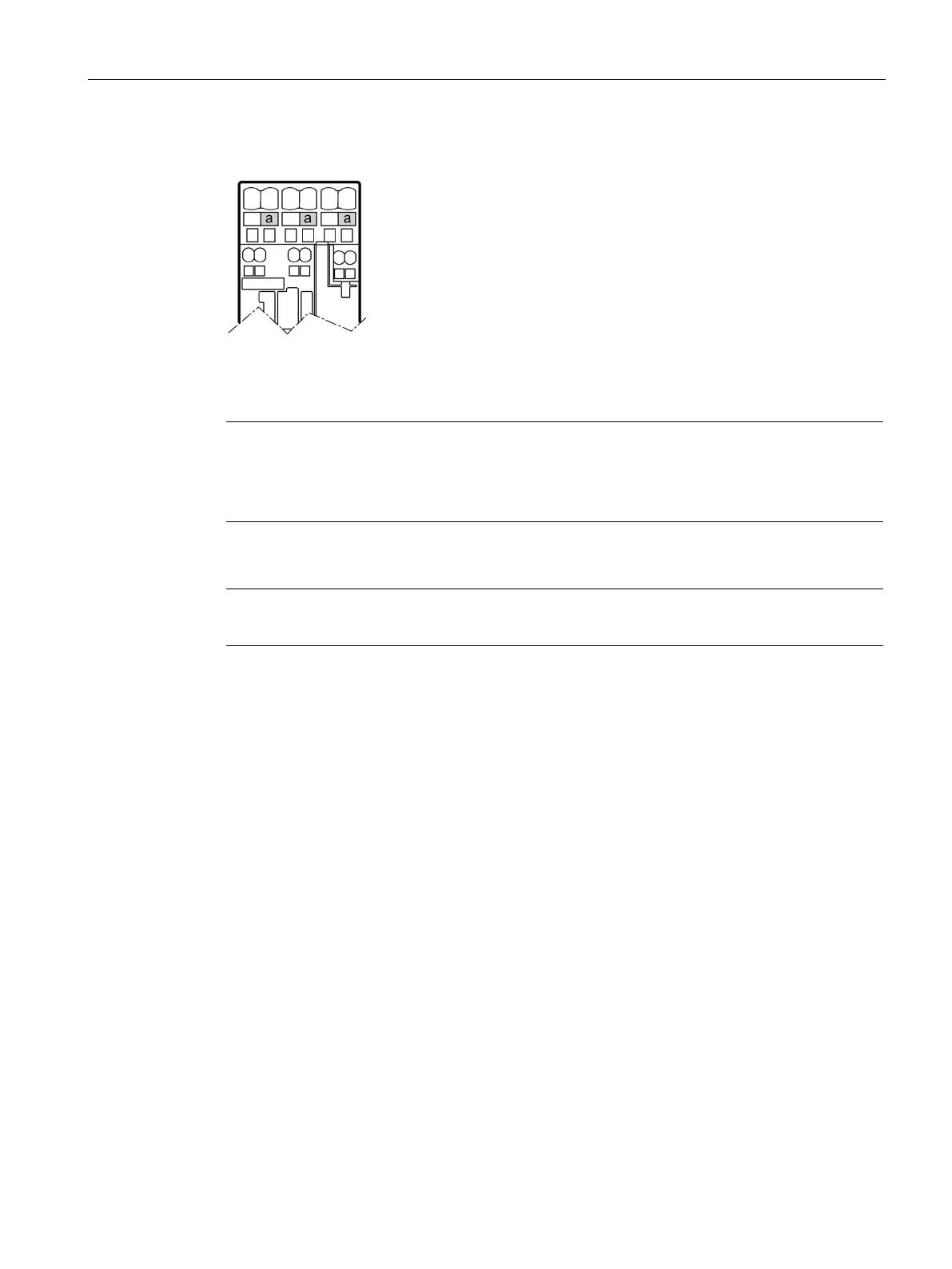

Figure 7-21 Main conductor terminals on the contactor (size S0)
Note
Contactor size S0 alternating current (AC)
S0
contactors with AC operation and spring-loaded connection system need a spacer (d) for
DIN rail or busbar adapter mounting.
Note
Reverse the above sequence to disassemble both sizes
S00 and S0.
