7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
96 Manual, 09/2016, A5E03656507520A/RS-AB/003
Mounting the busbar adapter on the busbar
Attaching the busbar adapter to the busbar is a very straightforward process. The busbar
hooks on the rear of the adapter will hold the structure securely on the bar even under
severe ambient conditions.
Press the button on the top of the busbar adapter to release the holder. The holder should flip
out from the front of the busbar adapter.

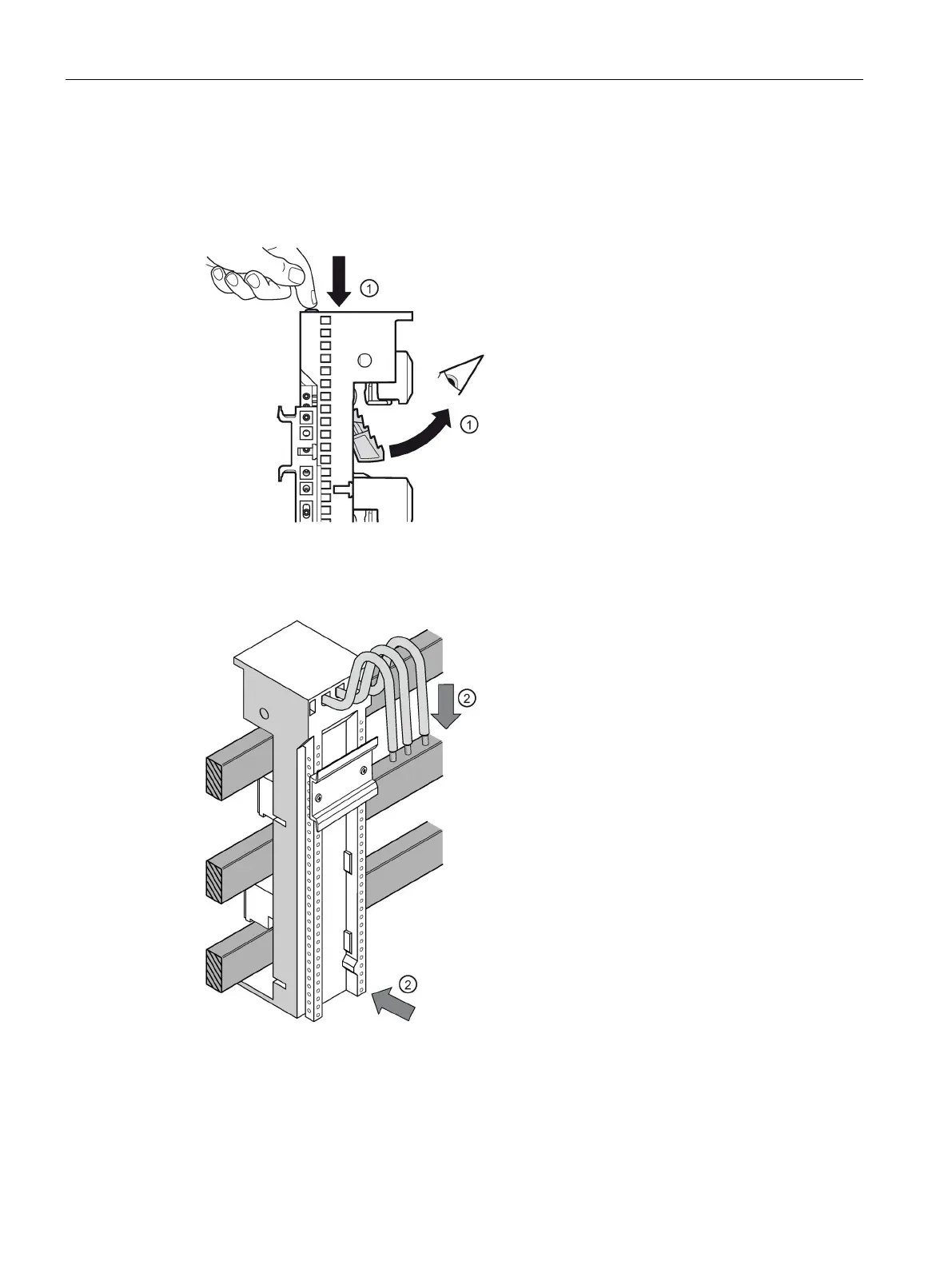

Figure 7-37 Mounting the busbar adapter on the busbar
Attach the busbar adapter to the busbars from above.
Figure 7-38 Mounting the busbar adapter on the busbar
