Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
107
Installing the vibration and shock kit
For special vibration and shock acceleration requirements, the vibration and shock kit can be
used to secure the feeder on the busbar adapter.
Installing the vibration and shock kit for direct-on-line starters in sizes S00 and S0
The following figures show how to install the vibration and shock kit 8US1998-1CA10.

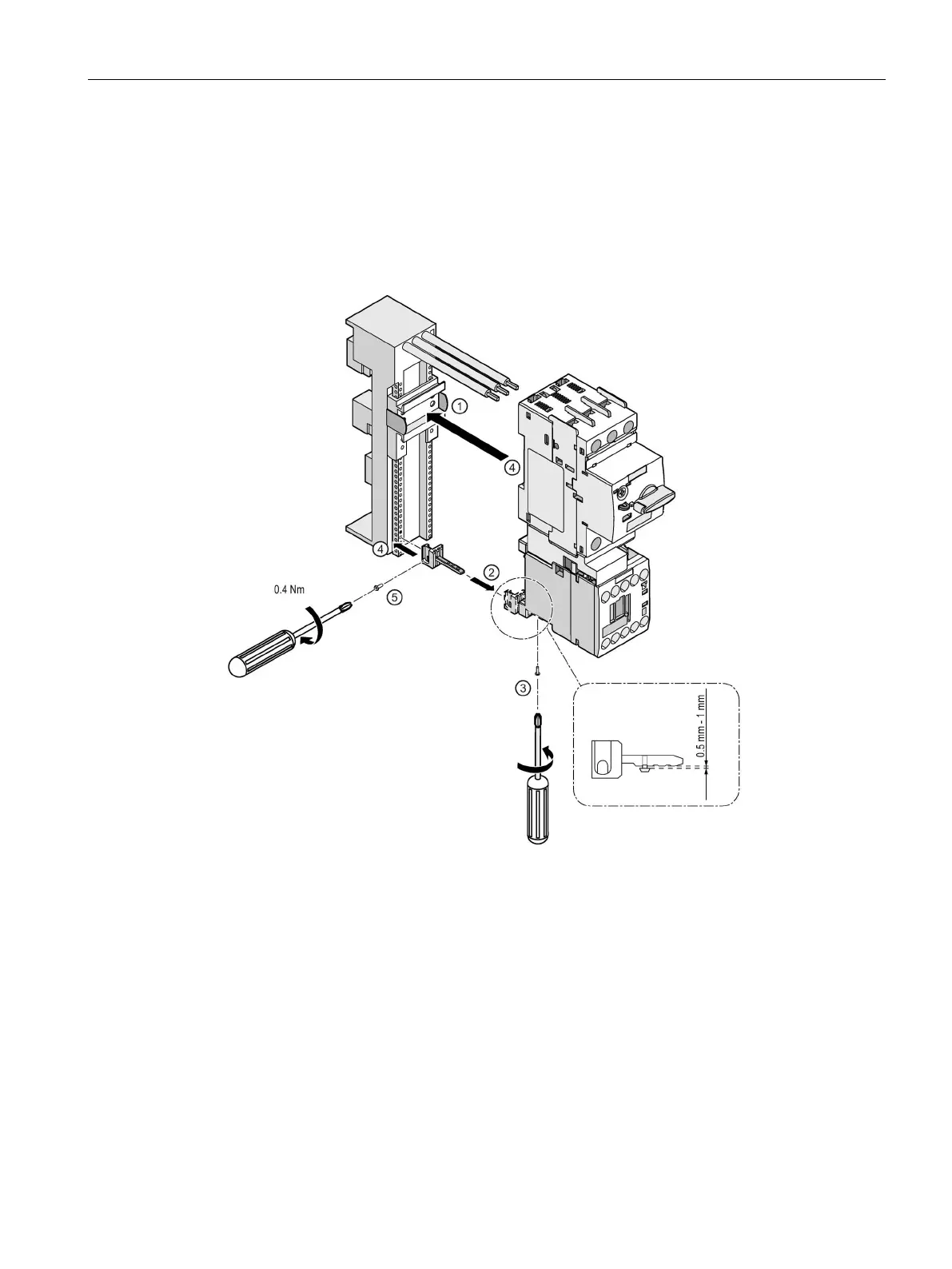

Figure 7-47 Installing the vibration and shock kit, direct-on-line starter, screw-type connection
system, size S00
