Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
102 Manual, 09/2016, A5E03656507520A/RS-AB/003
Mounting the reversing starter (sizes S00 and S0)

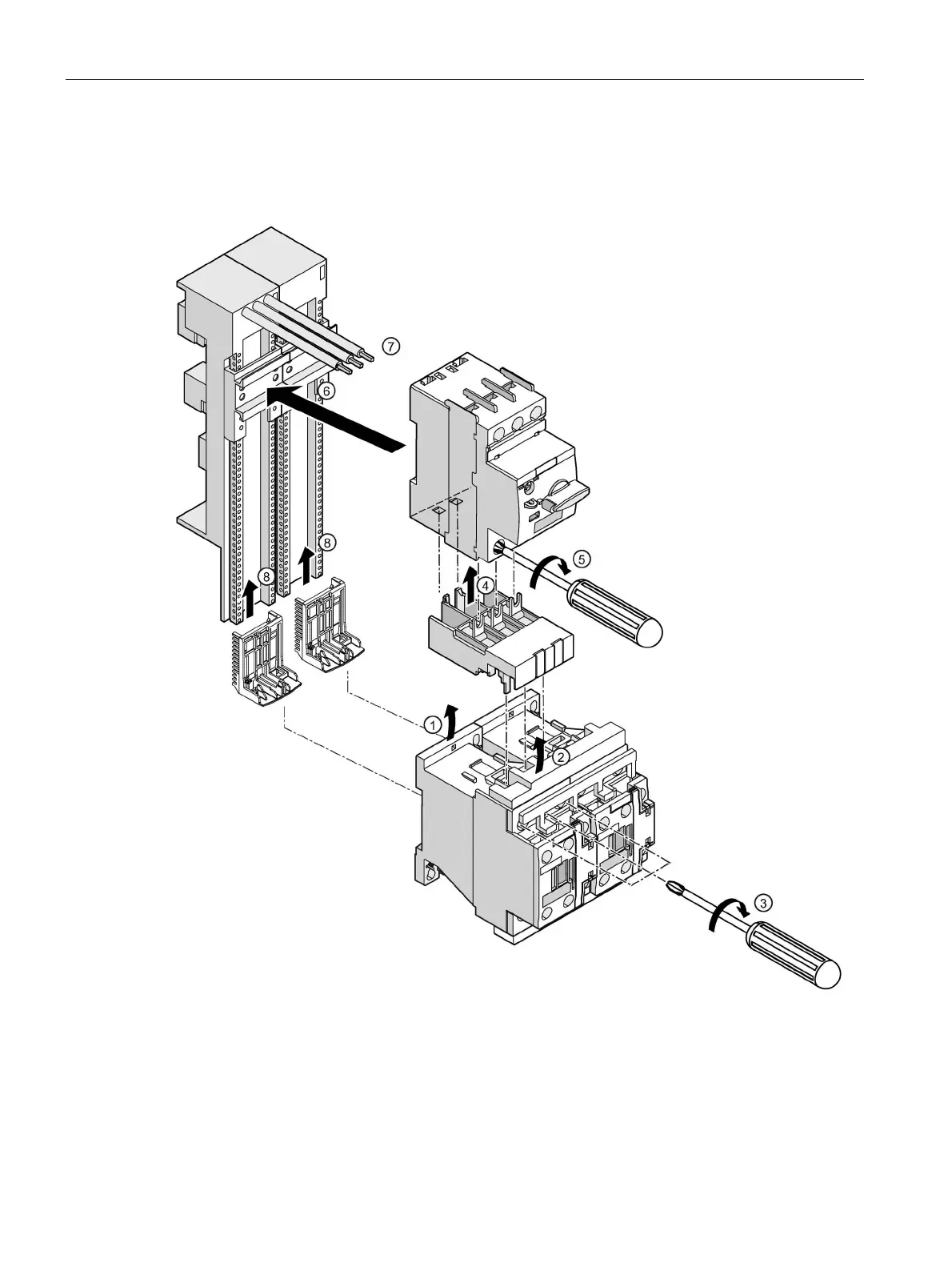

The figure below shows an example of the work steps for mounting the reversing starter in
screw-type connection system (size S0).
① Mount the link module on the contactor.
② Insert the connectors into the corresponding main conductor terminals.
③ Screw the main conductor terminals tight.
④ Place the contactor and the link module on the bottom of the motor starter protector. Insert the guide tabs into the
slots on the motor starter protector. Insert the connectors into the corresponding main conductor terminals at the
same time.
