7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
67
On DIN rails without DIN rail adapter
DIN rail mounting without adapter
Fuseless load feeders in the following sizes can be snapped onto DIN rails without adapters:
● Direct-on-line and reversing starters in size S00
● Direct-on-line starters in size S0 and S2
No tools are required for mounting and disassembling sizes S00 and S0. A screwdriver is
required for mounting and disassembling size S2.
Note
Vibration or shock load on size S00 reversing starters
In the case of vibration or shock load (such as in railway applications, for example), the
fuseless l
oad feeder (size S00 reversing starter) has to be mounted on a DIN rail adapter to
protect the individual devices against damage.

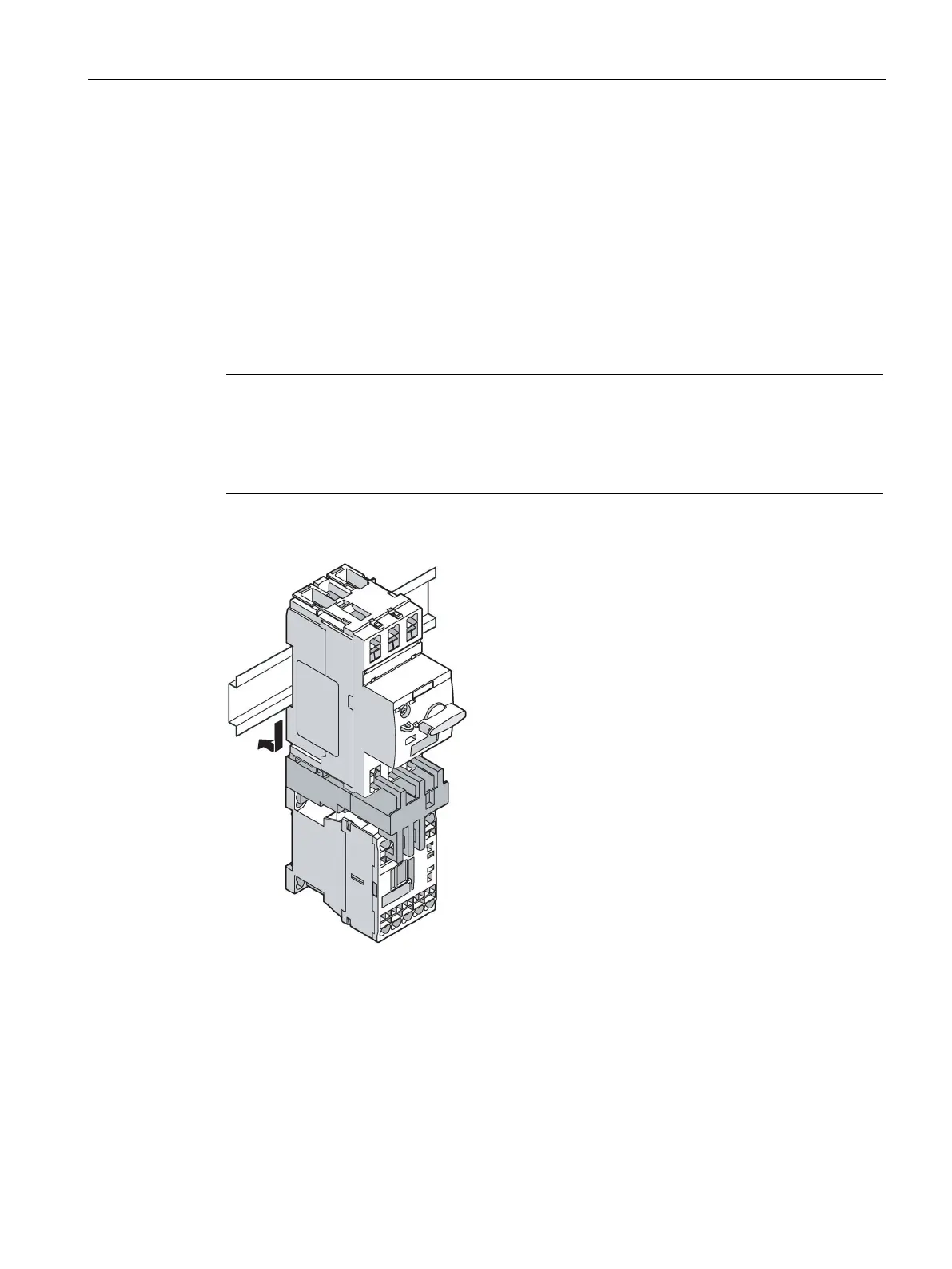

Figure 7-22 Mounting on DIN rail without adapter (size S00)
