Dimension drawings (dimensions in mm)
C.2 3RA2 fuseless load feeders – Size S00 to S3 for DIN rail
SIRIUS - SIRIUS 3RA load feeders
146 Manual, 09/2016, A5E03656507520A/RS-AB/003

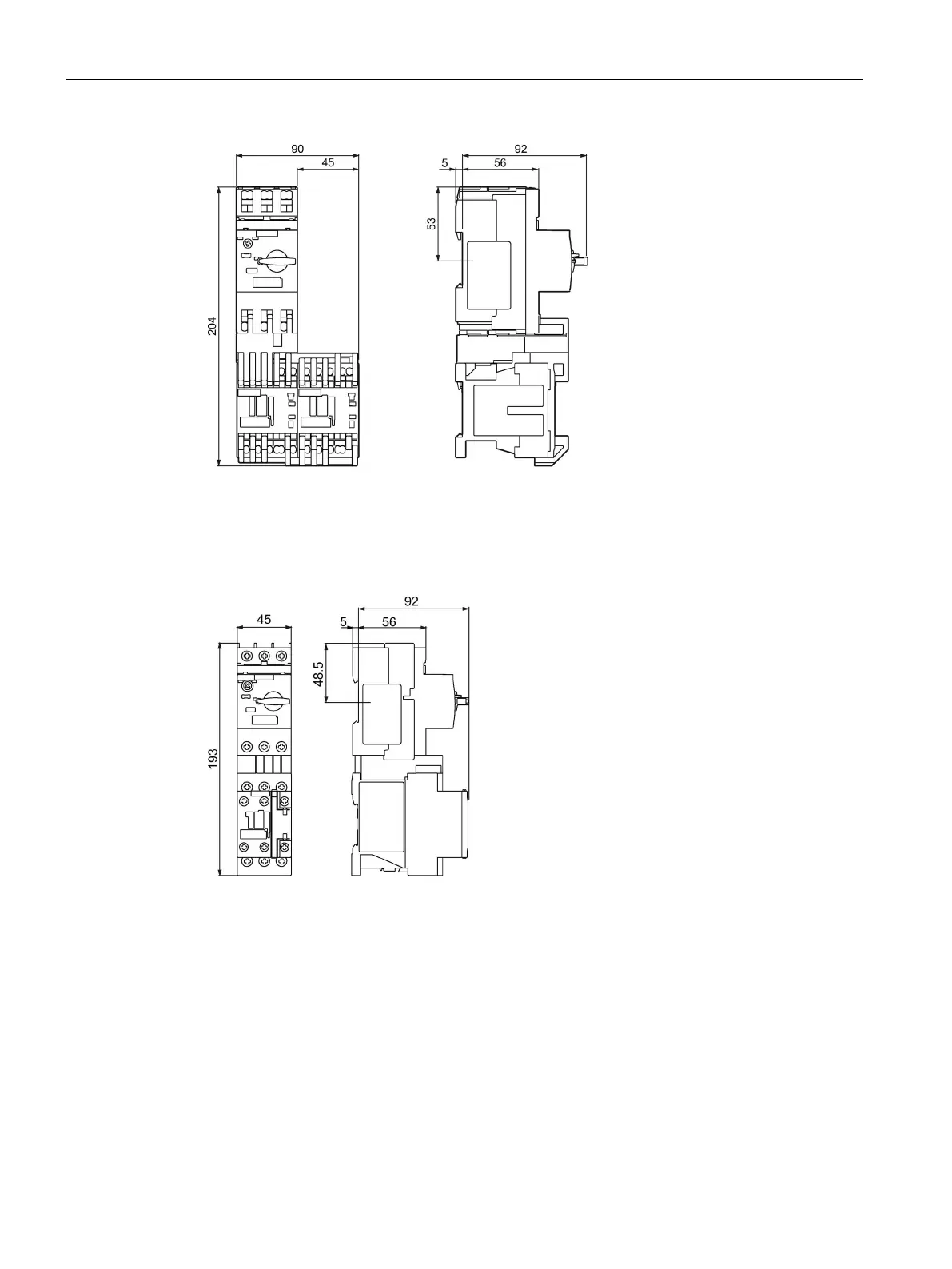

Figure C-5 S00 reversing starter, AC/DC, spring-loaded connection system
3RA2210-..E
3RA2 fuseless load feeders – Size S0 for DIN rail
Figure C-6 S0 direct-on-line starter, AC, screw-type connection system
3RA2120-..A
