Dimension drawings (dimensions in mm)
C.2 3RA2 fuseless load feeders – Size S00 to S3 for DIN rail
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
145

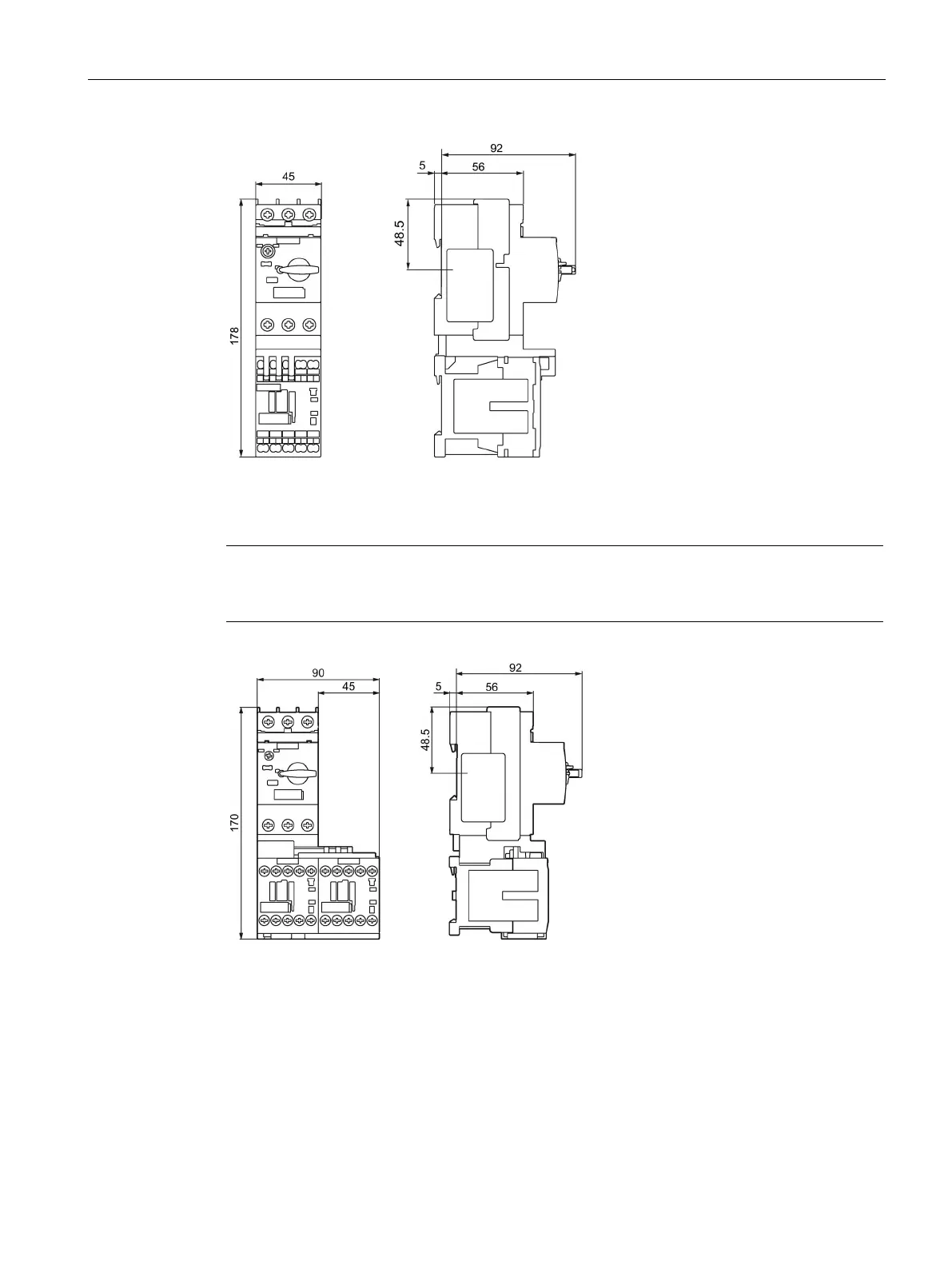

Figure C-3 S00 direct-on-line starter, AC/DC, hybrid connection system, link
module 3RA2911-2FA00
Note
The version of the fuseless load feeder (S00
direct-on-line starter, AC/DC) with hybrid
connection system is not available as a 3RA2
pre-assembled combination.
Figure C-4 S00 reversing starter, AC/DC, screw-type connection system
3RA2210-..A
