Disassembly of the busbar adapter from the busbar system

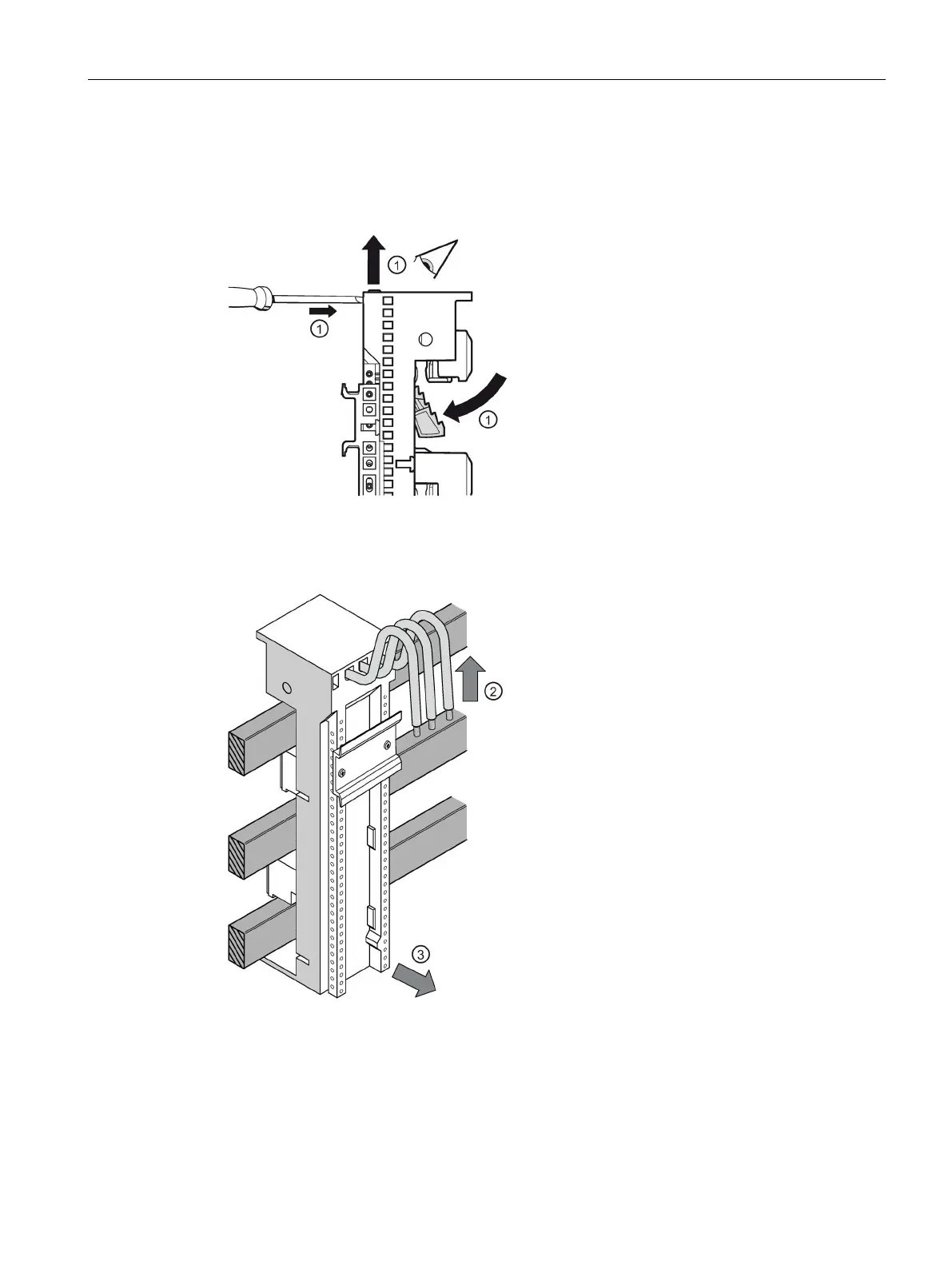

The diagrams below illustrate how the busbar adapter is disassembled from the busbar
system:
From the front, insert a screwdriver into the right-hand opening on the busbar adapter and lock
the holder. The button on the top of the busbar adapter should spring up and lock.
Figure 7-39 Disassembling the busbar adapter from the busbar
Remove the busbar adapter from the busbars. To do this, you will first need to push it up
slightly so that you can remove it by pulling it off toward you.
Figure 7-40 Disassembling the busbar adapter from the busbar
