Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
114 Manual, 09/2016, A5E03656507520A/RS-AB/003
The figure below shows mounting on a base plate without DIN rail adapter for size S00
reversing starters as well as for size S00 / S0 direct-on-line starters.

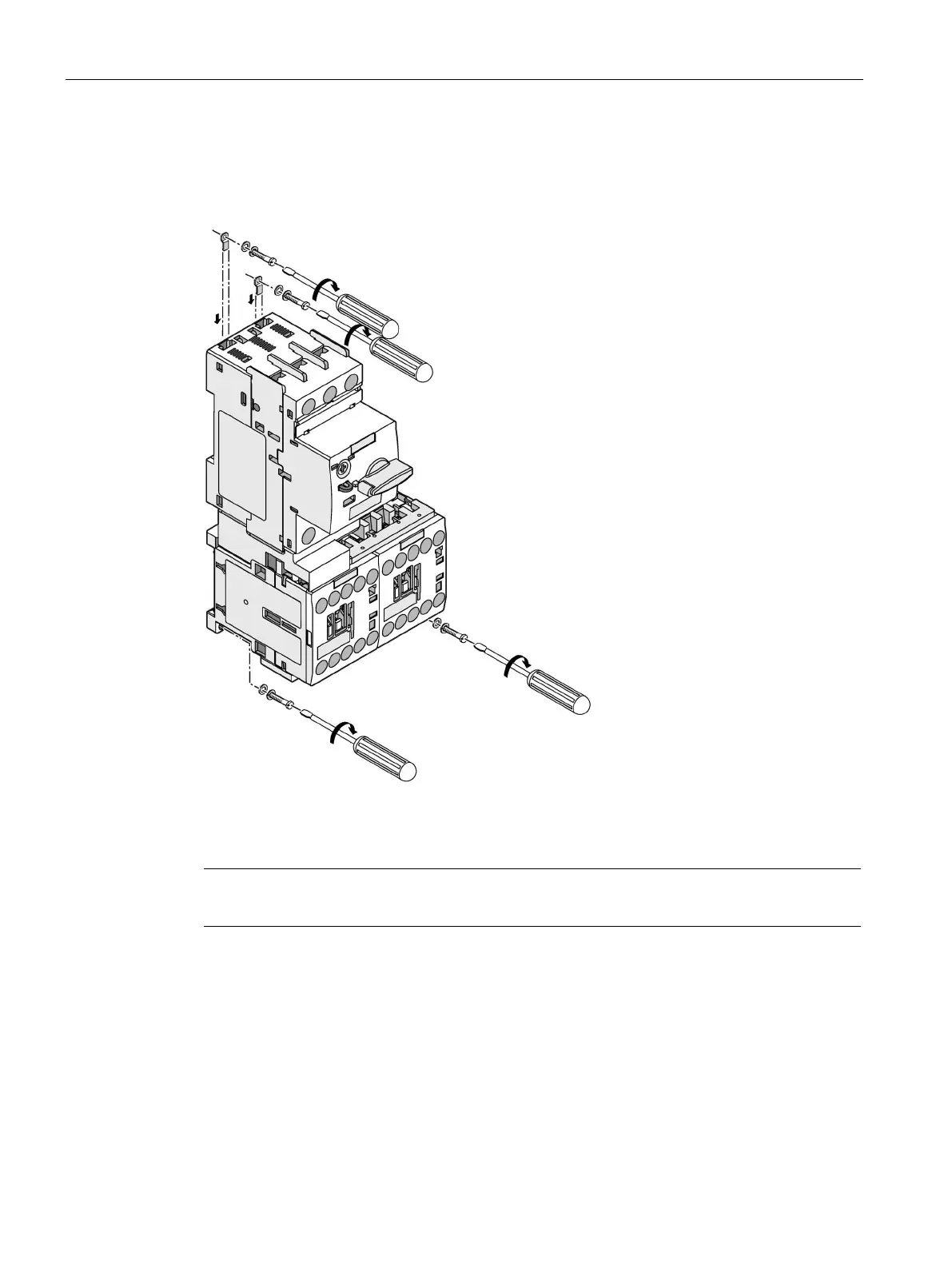

Figure 7-49 Mounting on base plate (reversing starter, screw-type connection system,
size S00)
x M4 screws (1.2 ... 1.6 Nm) should be used to fasten the reversing starter.
