Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
119
The figures below show mounting on a base plate with DIN rail adapter for size S3 direct-on-
line starters and reversing starters.

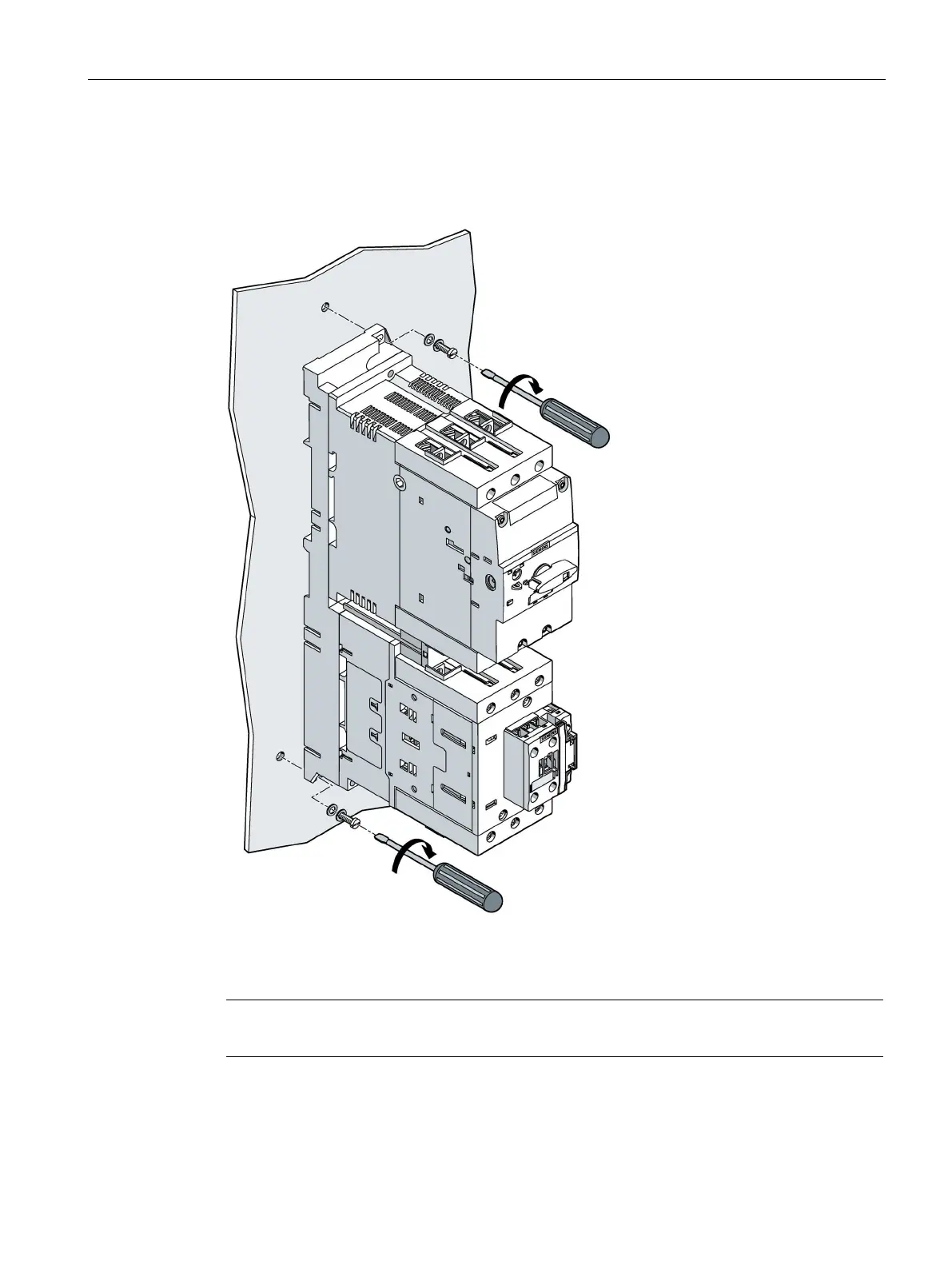

Figure 7-54 Mounting on base plate (direct-on-line starter with DIN rail adapter, screw-type
connection system, size S3)
x M4 screws (1.5 ... 1.6 Nm) should be used to fasten the DIN rail adapter.
