Dimension drawings (dimensions in mm)
C.3 3RA2 fuseless load feeders – Size S00 to S2 for 60 mm busbar systems
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
159

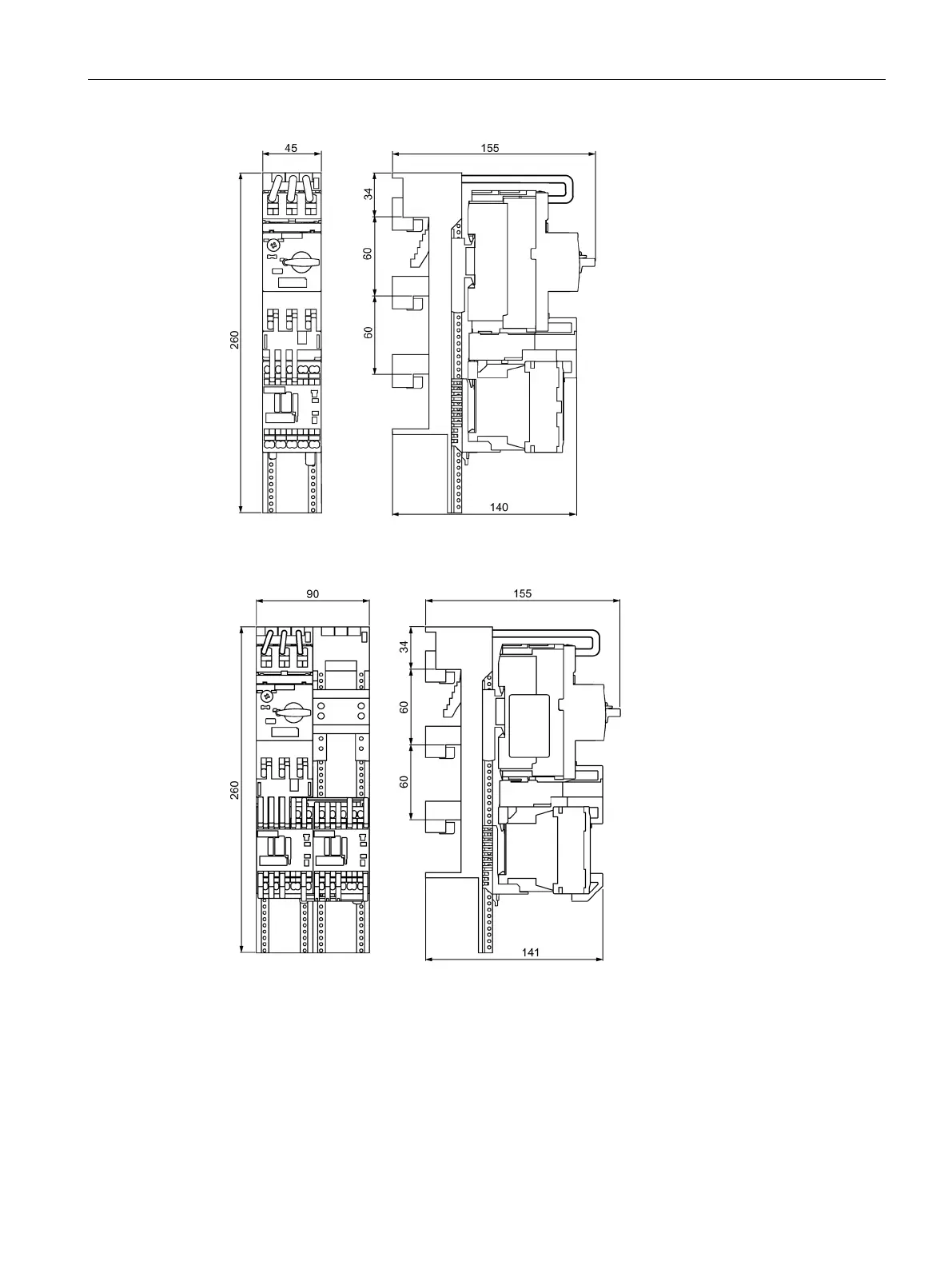

Figure C-24 S00 direct-on-line starter, AC/DC, spring-loaded connection system
3RA2110-..H
Figure C-25 S00 reversing starter, AC/DC, spring-loaded connection system
3RA2210-..H
