Mounting
7.2 Mounting and disassembling load feeders
SIRIUS - SIRIUS 3RA load feeders
52 Manual, 09/2016, A5E03656507520A/RS-AB/003
Insert the connectors on the link module (b) into the corresponding main conductor terminals
on the motor starter protector.
Insert the guide tabs (c) into the designated slots at the same time.
The link module will sit flush underneath the motor starter protector on the left- and right-hand

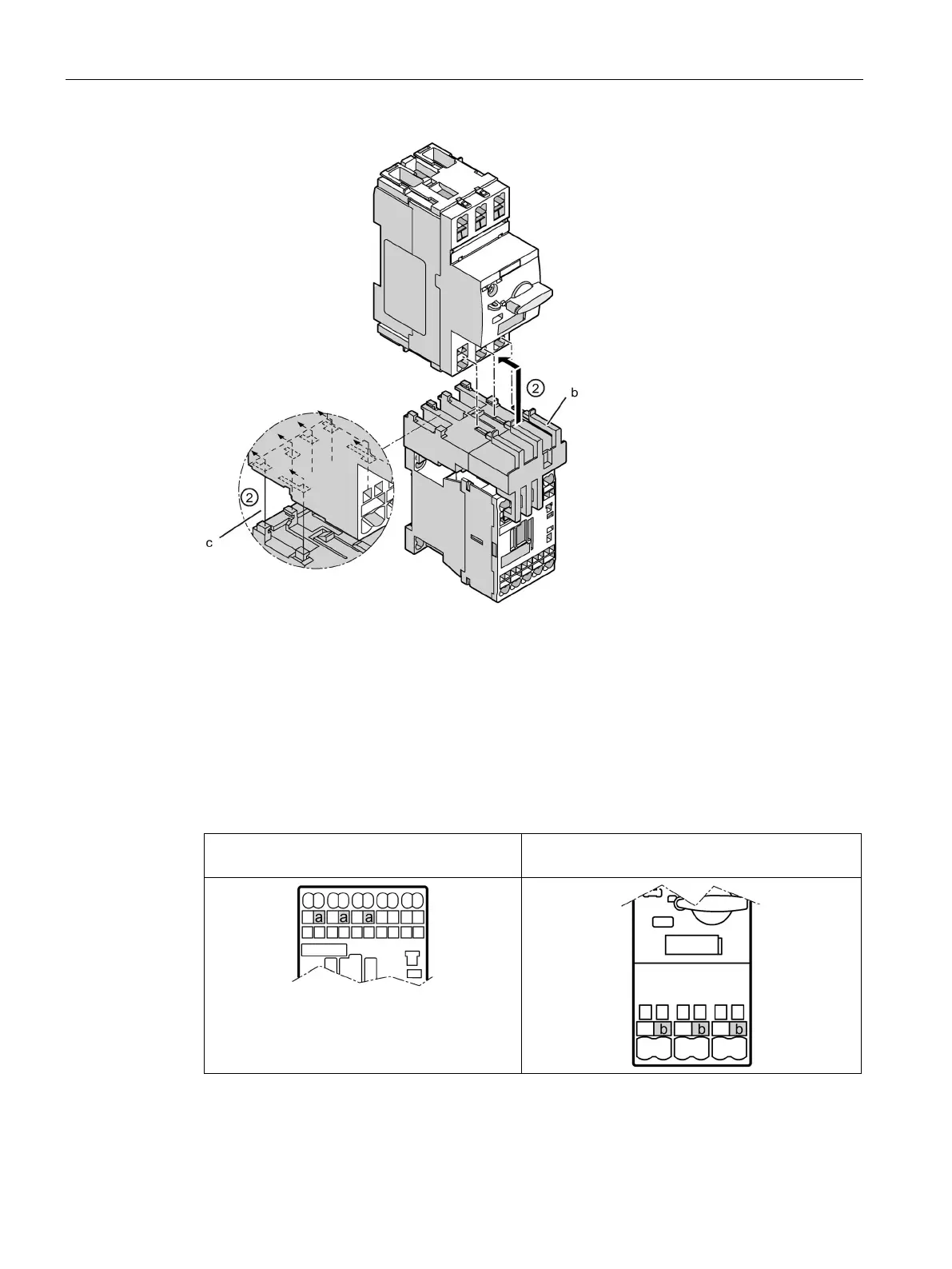

Figure 7-5 Mounting an S00 load feeder with spring-loaded connection system
Table 7- 5 Main conductor terminals on contactor and motor starter protector (size S00)
Main conductor terminals on the contactor (a)
(S00):
Main conductor terminals on the motor starter
protector (b) (S00):
