Mounting
7.2 Mounting and disassembling load feeders
SIRIUS - SIRIUS 3RA load feeders
54 Manual, 09/2016, A5E03656507520A/RS-AB/003

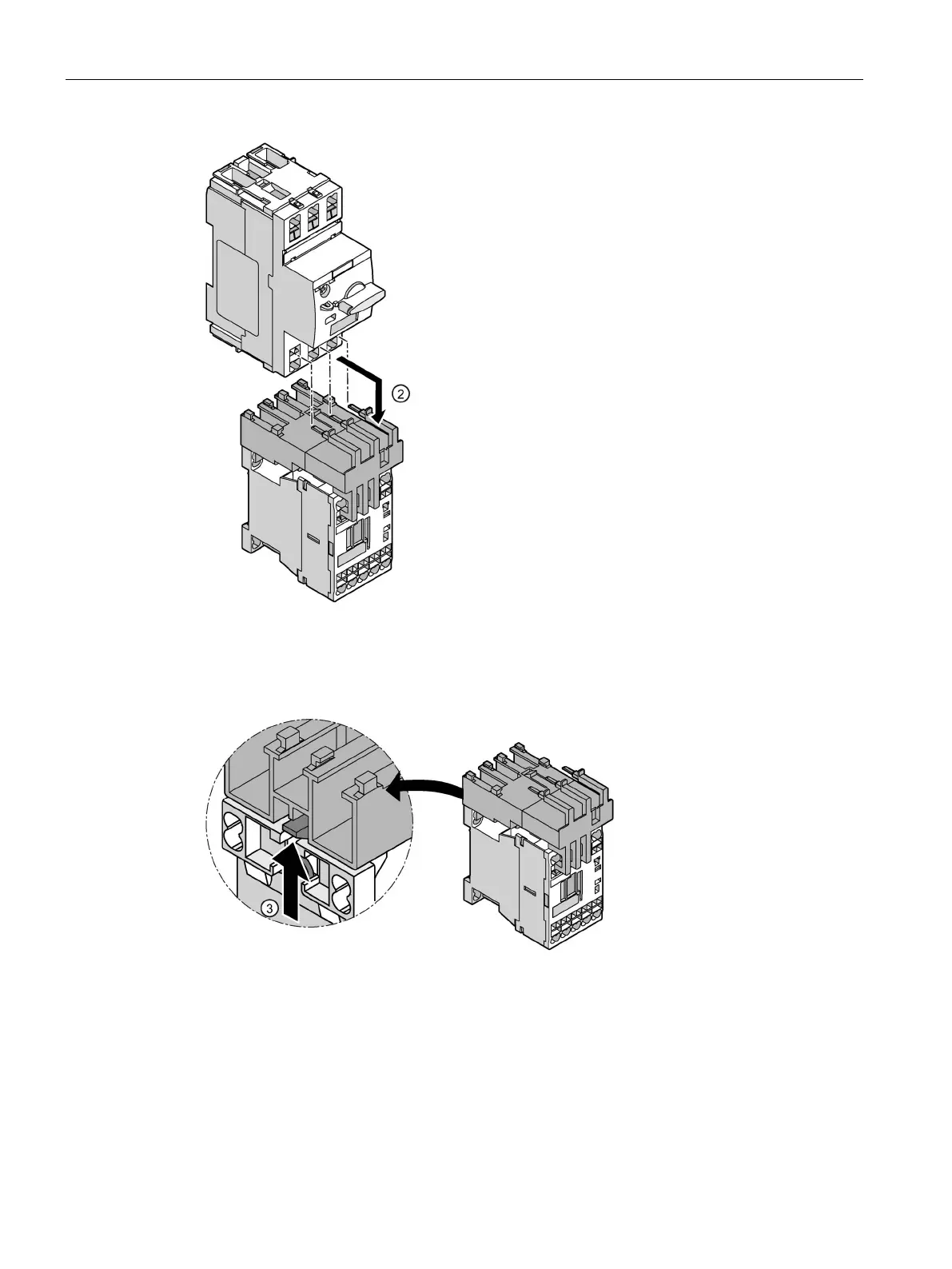

Pull the link module and the contactor attached to it toward you to remove it.
Figure 7-7 Disassembling an S00 load feeder with spring-loaded connection system
Push the release slide on the rear of the link module up.
Figure 7-8 Disassembling an S00 load feeder with spring-loaded connection system
