Mounting
7.2 Mounting and disassembling load feeders
SIRIUS - SIRIUS 3RA load feeders
60 Manual, 09/2016, A5E03656507520A/RS-AB/003

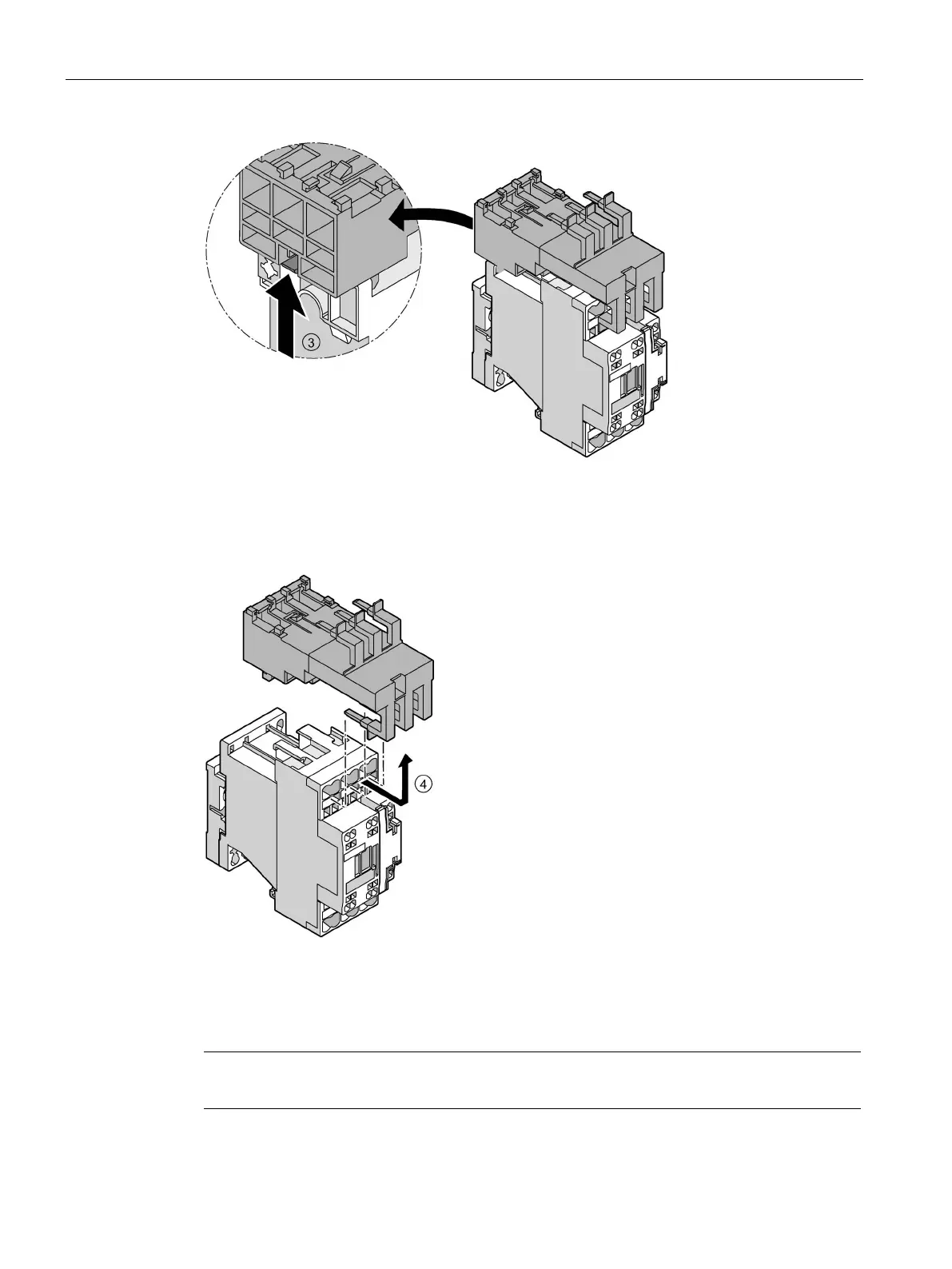

Push the release slide on the rear of the link module up.
Figure 7-14 Disassembling an S0 load feeder with spring-loaded connection system
Take the link module off the contactor.
Figure 7-15 Disassembling an S0 load feeder with spring-loaded connection system
Note
Proceed in the same way to disassemble the reversing starter (size
S0).
