Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
89

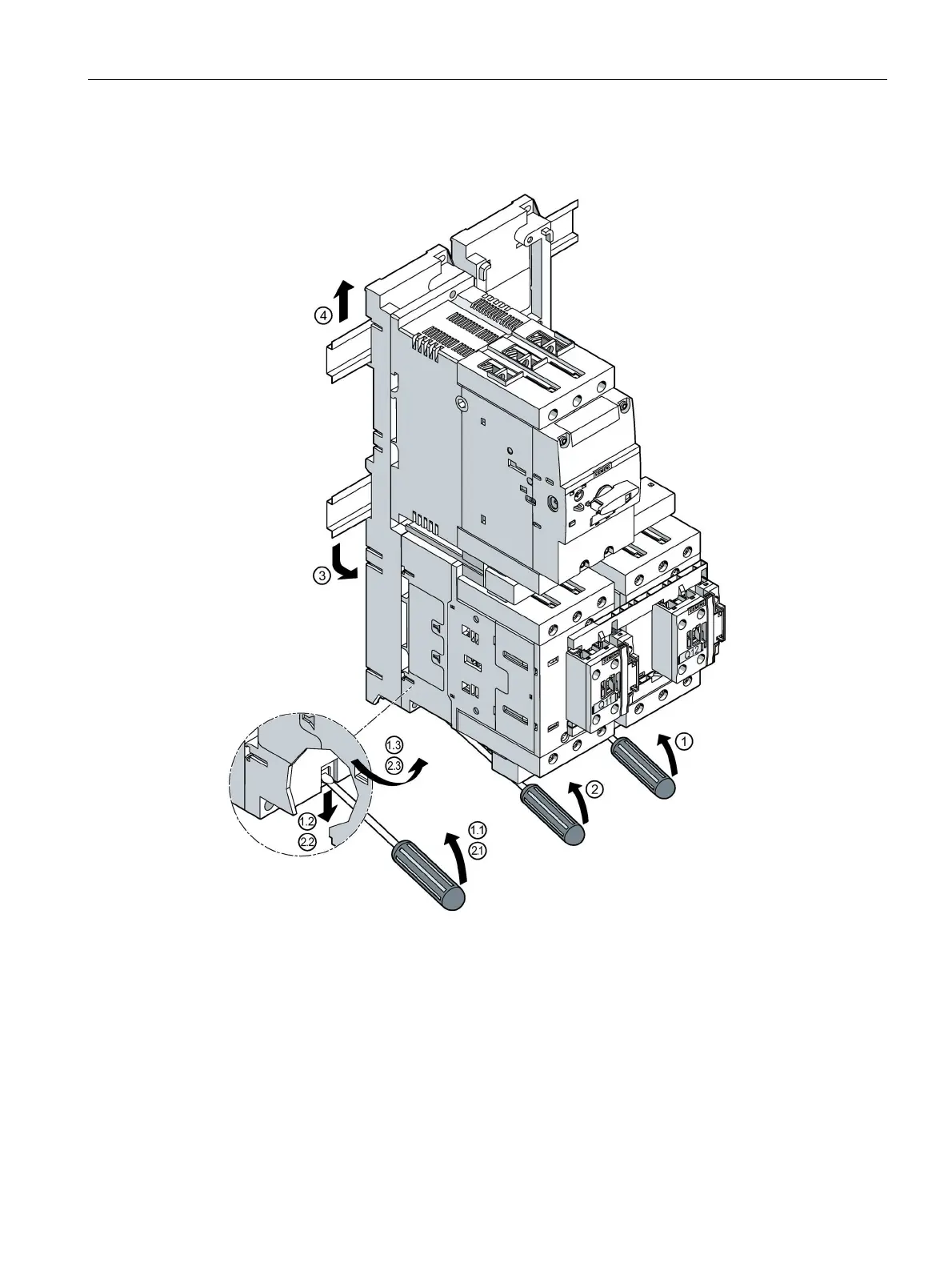

The procedure for disassembling the DIN rail adapter with mounted reversing starter of size
S3 is shown in the figure below. You require a screwdriver for disassembling.
①/② Press the locking devices down with a screwdriver. Then push the DIN rail adapter with
mounted feeder forwards against the pressure of the mounting spring.
③ Pull the DIN rail adapter with mounted feeder forwards with a swivel action.
④ Press the DIN rail adapter with mounted feeder upwards and remove the DIN rail adapter
with mounted feeder from the DIN rail.
