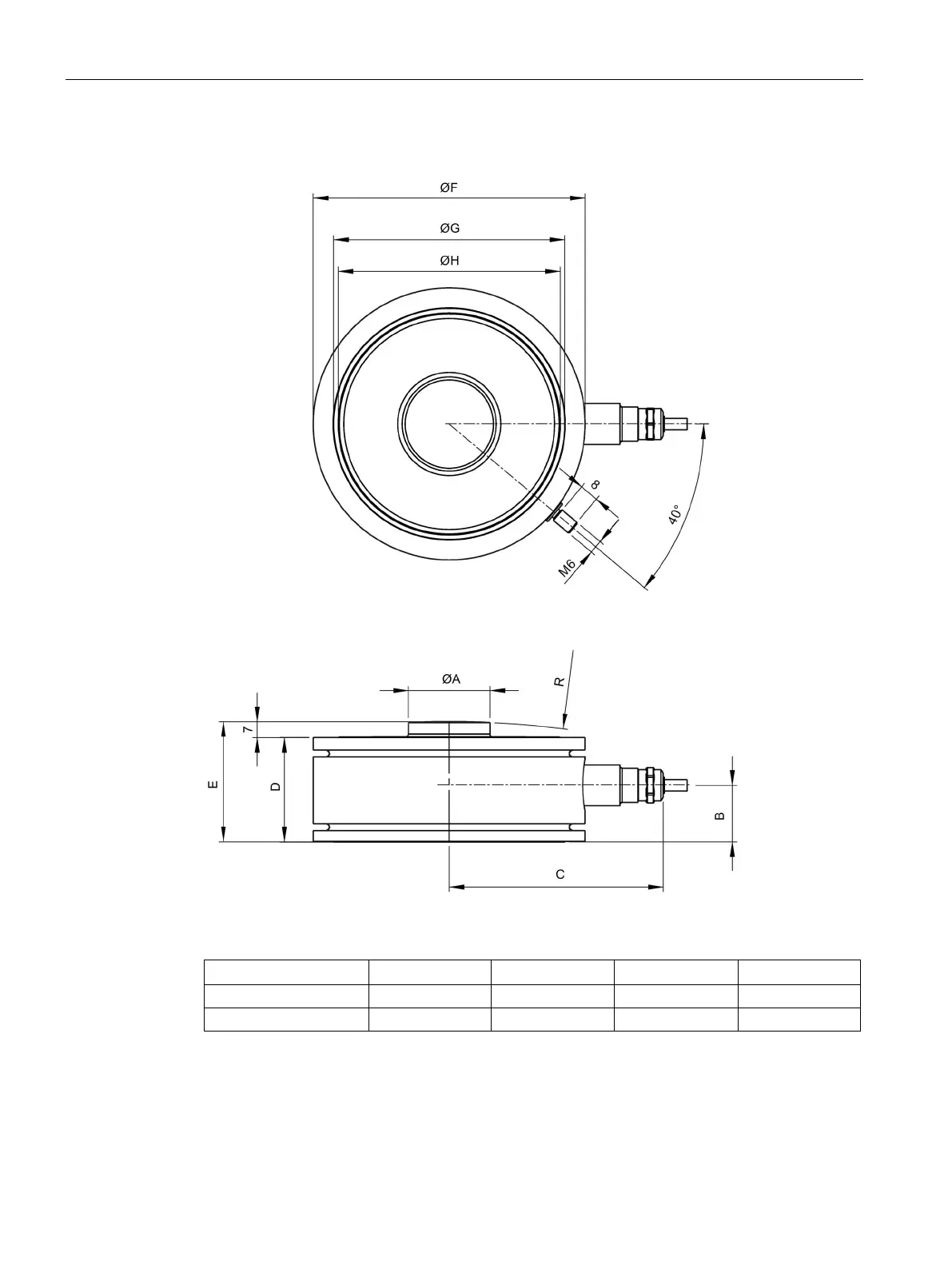

Figure 10-18 Dimension drawing for SIWAREX WL280 RN-S SA, rated load 60 kg, 130 kg, 280 kg
Dimension drawing for SIWAREX WL280 RN-S SA load cell for 0.5, 1 t
The dimension drawing also contains the dimensions of the pressure piece.
The pressure piece is included in the scope of delivery of the load cell.
Dimension drawings
10.16 SIWAREX WL280 RN-S SA
SIWAREX WL200
88 Operating Instructions, 12/2021, A5E02199611B-13
