Dimension drawings
10.16 SIWAREX WL290 DB-S CA
SIWAREX WL200
Operating Instructions, 07/2016, A5E02199611B-03
89
10.16
SIWAREX WL290 DB-S CA

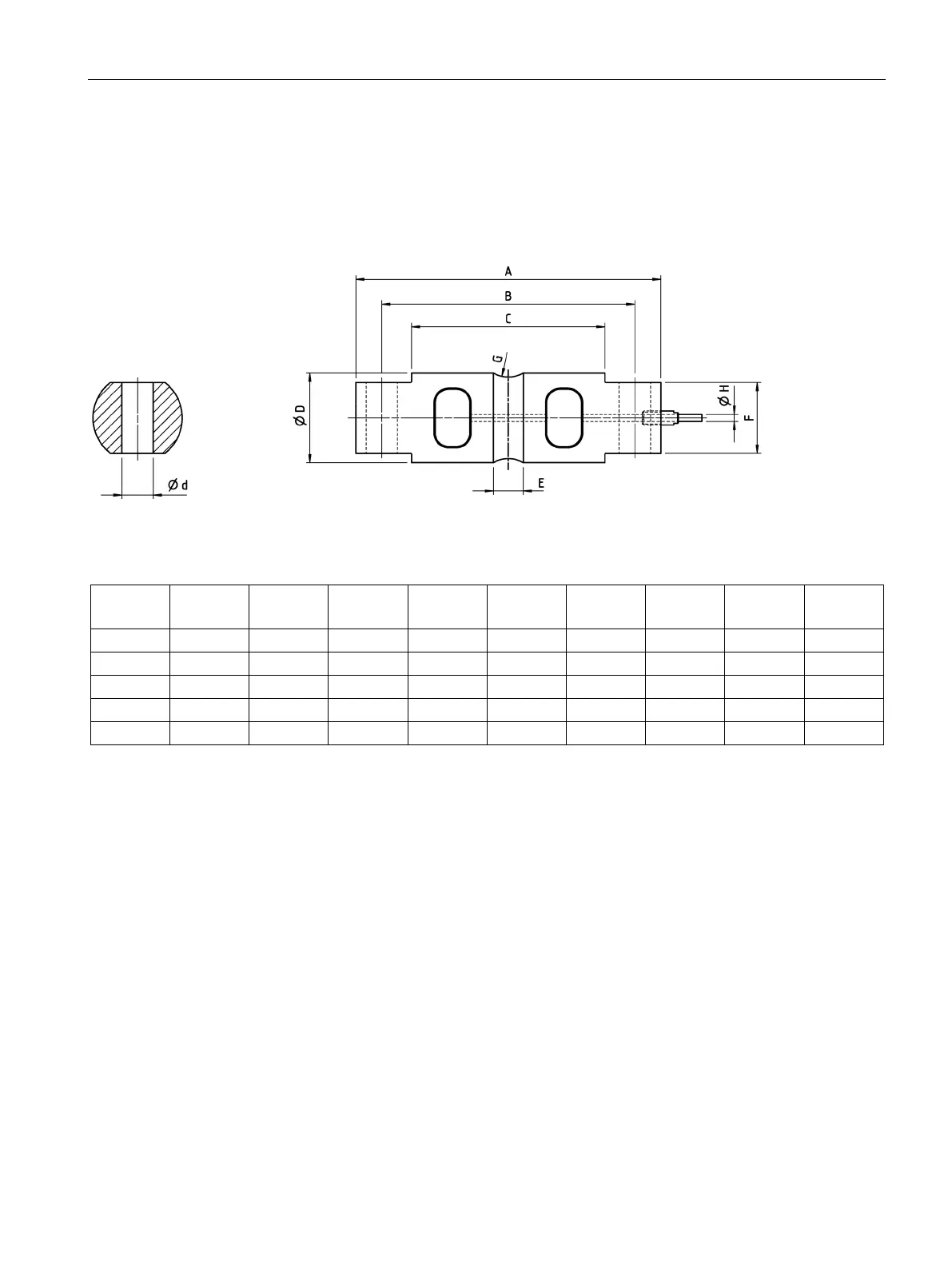

Dimension drawing of the load cell SIWAREX WL290 DB-S CA for 2.3; 4.5; 9.1; 13.6; 18; 23; 27; 34;
45; 68 t

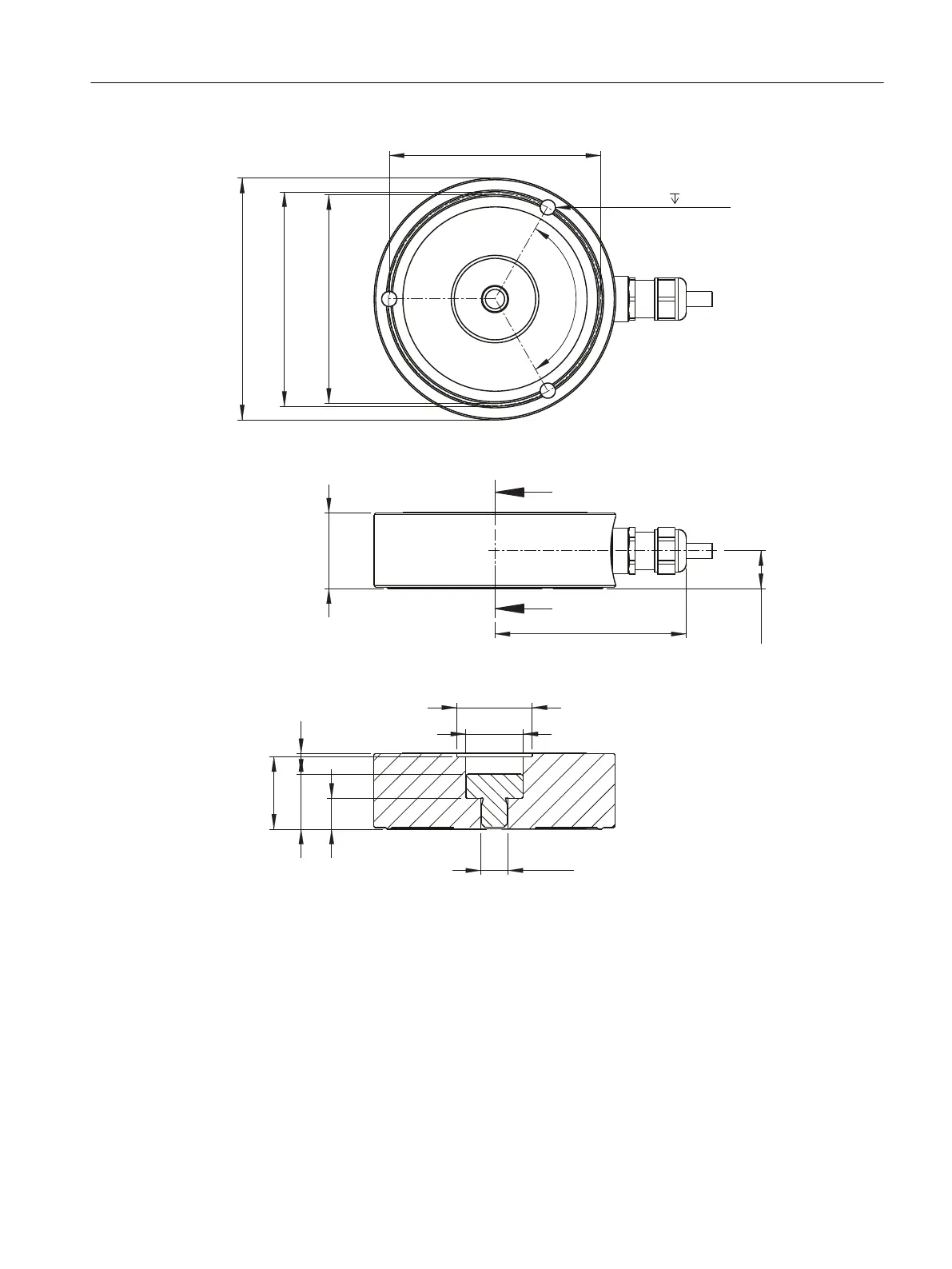

Figure 10-23 Dimension drawing of WL290 DB-S CA
Table 10- 1 Dimensions WL290 DB-S CA
Rated
load (t)
A (mm)
B (mm)
C (mm)
Ød (mm)
ØD (mm)
E (mm)
F (mm)
G (mm)
ØH (mm)
2.3, 4.5
206.2
174.6
133.1
16.7
43.2
15.7
28.4
R12.7
5
9.1
206.2
174.6
133.1
16.7
49.5
21.3
28.4
R12.7
5
13.6 … 34
260.4
215.9
165.1
26.9
76.2
25.4
60.2
R25.4
8
45
285.8
241.3
190.2
26.9
88.9
31
63.5
R38.1
8
68
285.8
241.3
190.2
26.9
99.1
31
71.1
R38.1
8
