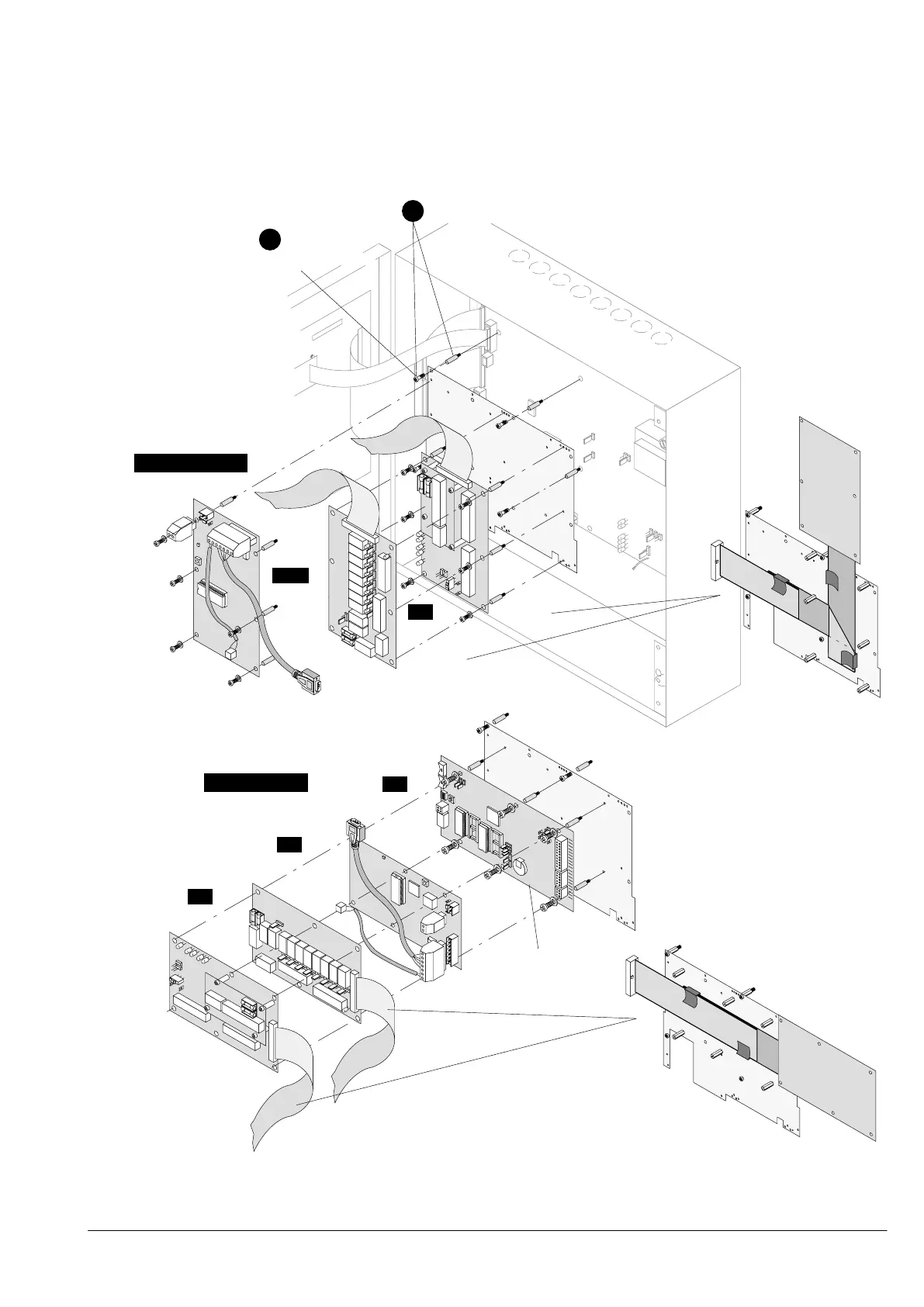

2.6 Mounting of optional cards FC330A-ECO (1 loop)
K3L070 VdS-interface card
K3G050 relay card
K3I080 RS232/LON converter card
K3I090 pager interface card
1
2
Unfasten 4 screws of master board
Connection see
manual e1669
Screw in studs (contained in Z3G280)
and fix adapter plate with 4 screws
K3L070
or
K3G050
K3I080
Z3G280
K3I080
K3I090
K3G050
K3L070
or
or
or
and
K3L070/K3G050
Z3G280
K3L070/K3G050
Z3G280
if two cards
if one card
