Parameterizing Steps 05.2006
6SE7087-2JD60 Siemens AG
9-48 Operating Instructions SIMOVERT MASTERDRIVES

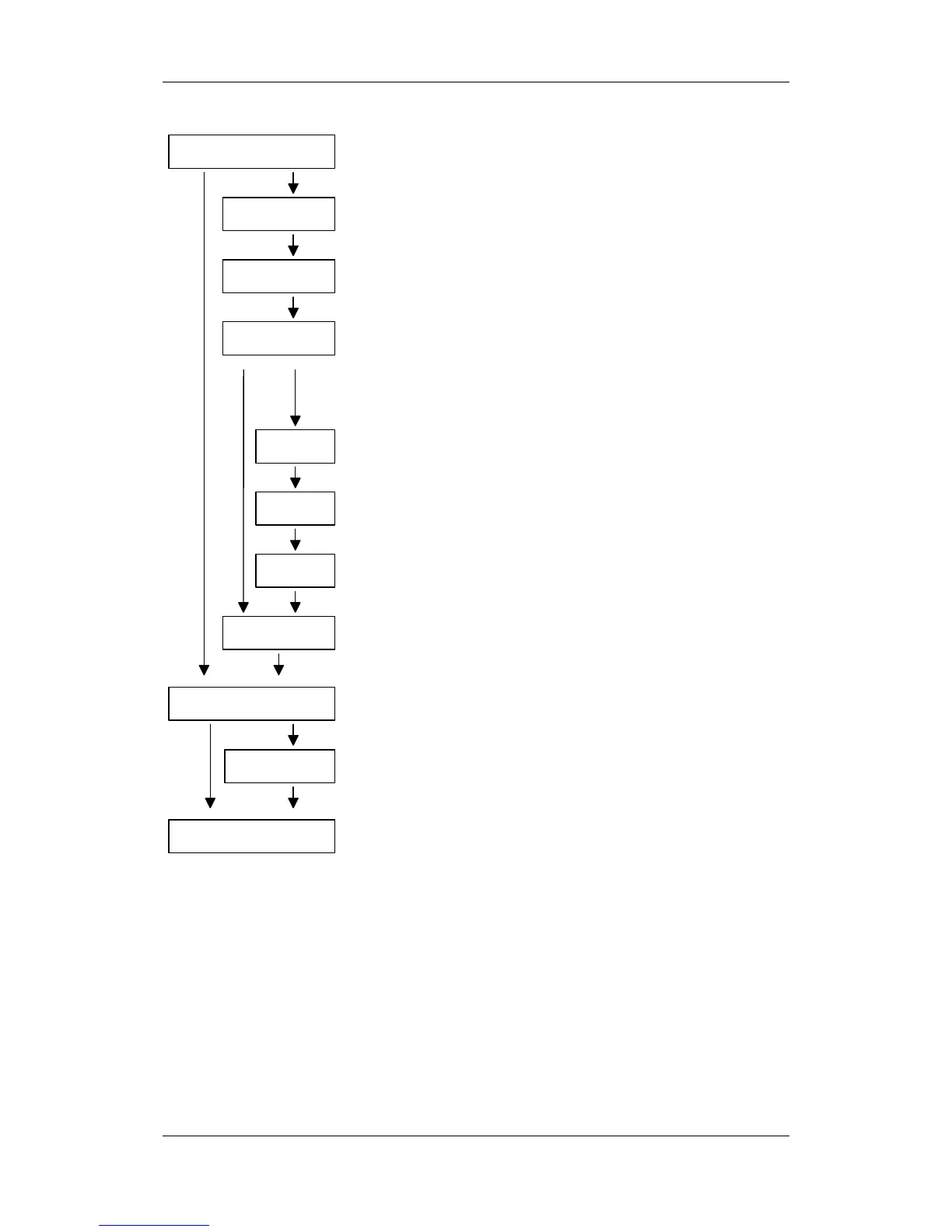

SLB inserted ?
no yes
P740 = ?
P741 = ?
Enter the SLB transmit power
(for plastic fiber-optic cables)
1: weak up to 15 m fiber-optic cable length
2: medium up to 25 m fiber-optic cable length
3: strong up to 40 m fiber-optic cable length
NOTE: If glass fiber-optic cables are used, the possible
lengths are increased by the factor 7.5.
P742 = ?
P740 = 0P740 > 0
P743 = ?
Enter the number of modules (incl. dispatcher)
in the SIMOLINK ring
P745 = ?
Enter the number of channels per module
P746 = ?
Enter the SIMOLINK cycle time in ms
P749.1...8 = ?
Enter the SLB read addresses
Enter the SLB module address
0: Unit operates as a dispatcher
greater than 0: Unit operates as a transceiver
Enter the SLB telegram failure time in ms
0: No monitoring
greater than 0: Monitoring time in ms
SIMOLINK bus interface
Enter the CB bus addresses
P918.1...2 = ?
CBx inserted ?
no
yes
Communications board (e.g. Profibus-DP)
Return to the parameter menu
P060 = 1
