CN-Series Hardware Installation and Maintenance Guide Configuring a VLAN

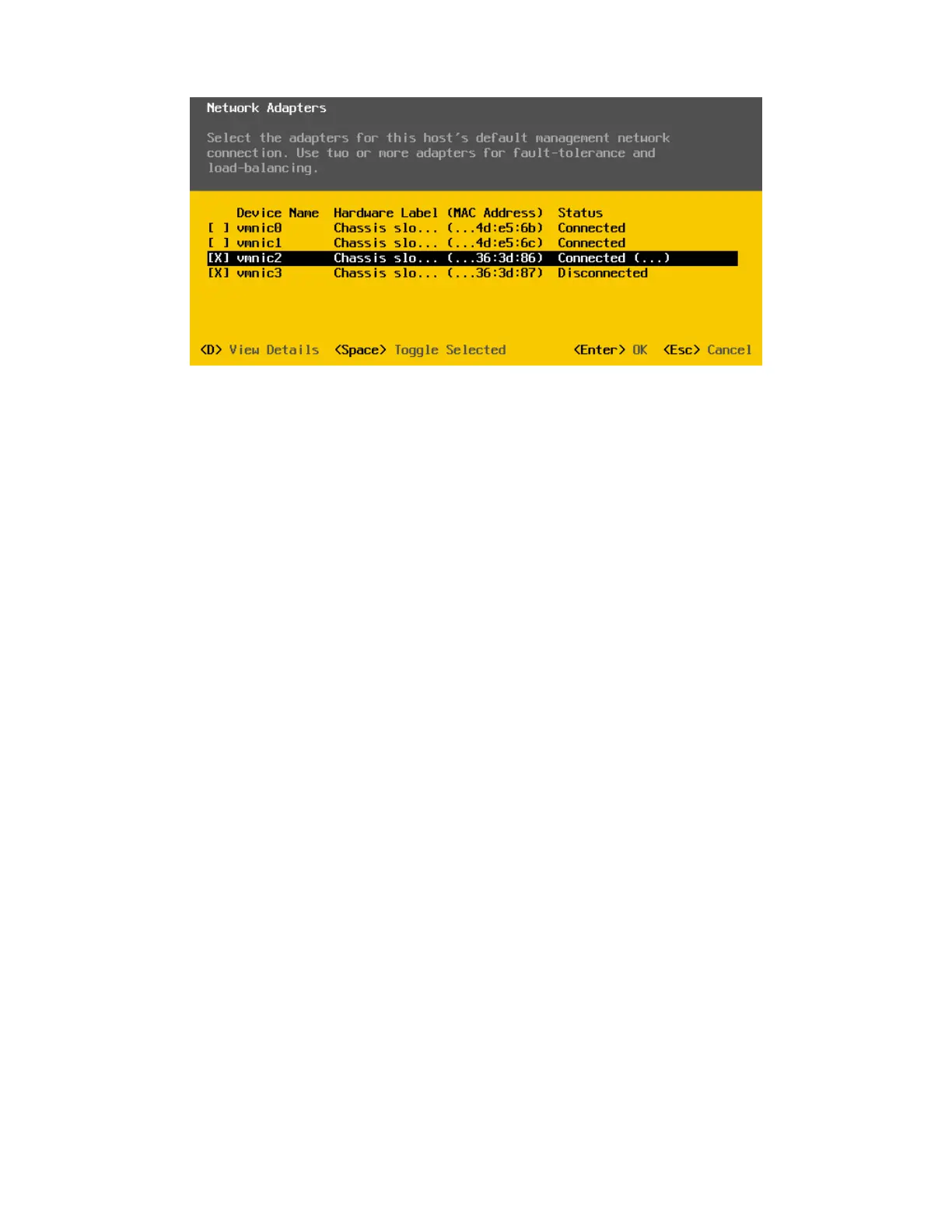

3. Select Network Adapters.
4. Ensure that vmnic0 and vmnic1 are not selected.
5. Ensure that vmnic2 and vmnic3 (1GbE ports 1 and 2) are selected.
6. Press Enter to return to the Configure Management Network screen.
Related Topics
Task 5—Configuring IPMI for Remote Management on page 27
Connecting to IPMI and Launching the Virtual Console on page 30
Accessing VMware ESXi Through the IPMI Virtual Console on page 33
Configuring a VLAN
Configuring a virtual LAN (VLAN)is optional.
Before You Begin
• You have configured IPMI and launched the Virtual Console.
• You have logged in to VMware ESXi.
To configure a VLAN:
1. Select Configure Management Network in the System Customization screen.
2. Select VLAN (Optional) to display the VLANscreen.
35
