Simpson Minilab PVF-C - Page 34

6 Operating Instructions
28 Minilab man-CH-PVF-C-V17-2

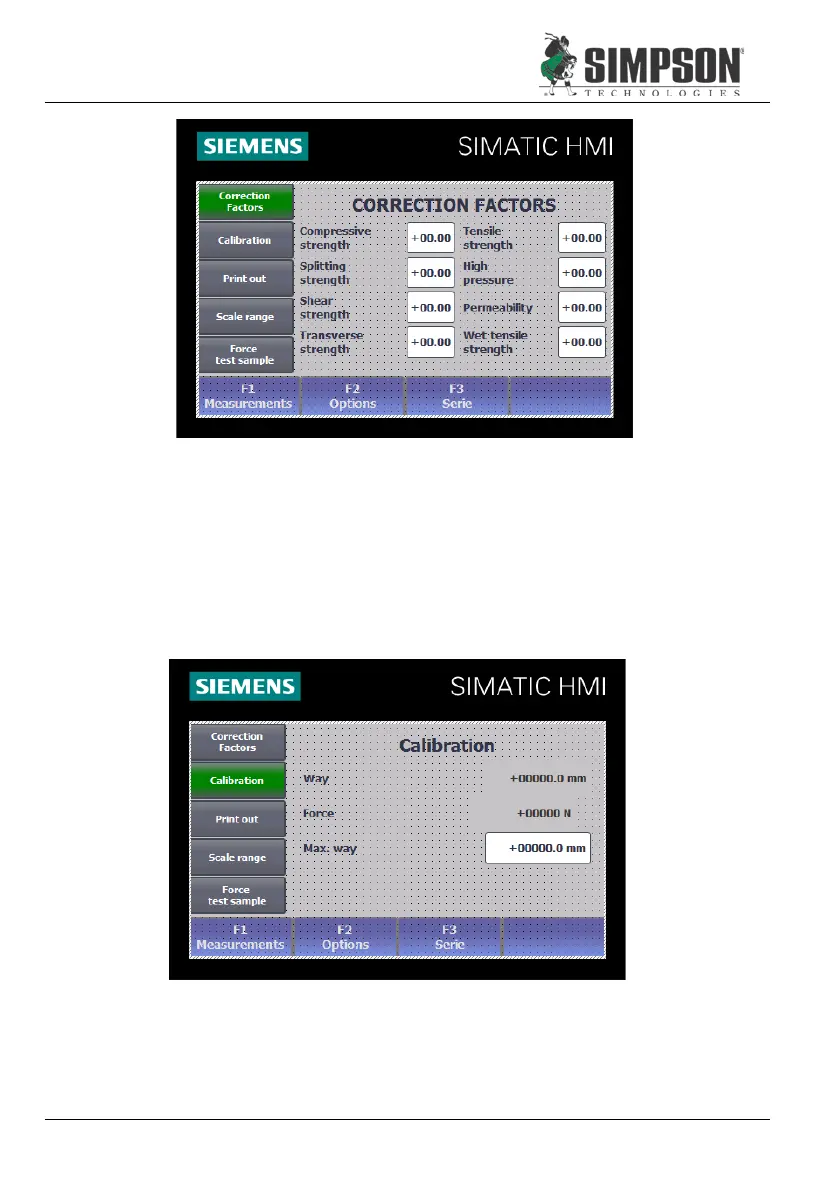

6.1.2.2 Calibration
The technical measurement settings may be found on the menu,
"Calibration.” “Way” indicates the piston displacement, and “Force”
indicates the force exerted by the piston on the sample during
measurement. In the "Max way" display box, the maximum displacement
for piston movement during a measurement should be entered (see
Section 7.3).
