Note ! The compass faceplate on the rate compass is the TOP. NEVER
mount it upside down! Level the sensor as close to horizontal as
possible.
AP50
CONTROL
UNIT
RATE
COMPASS

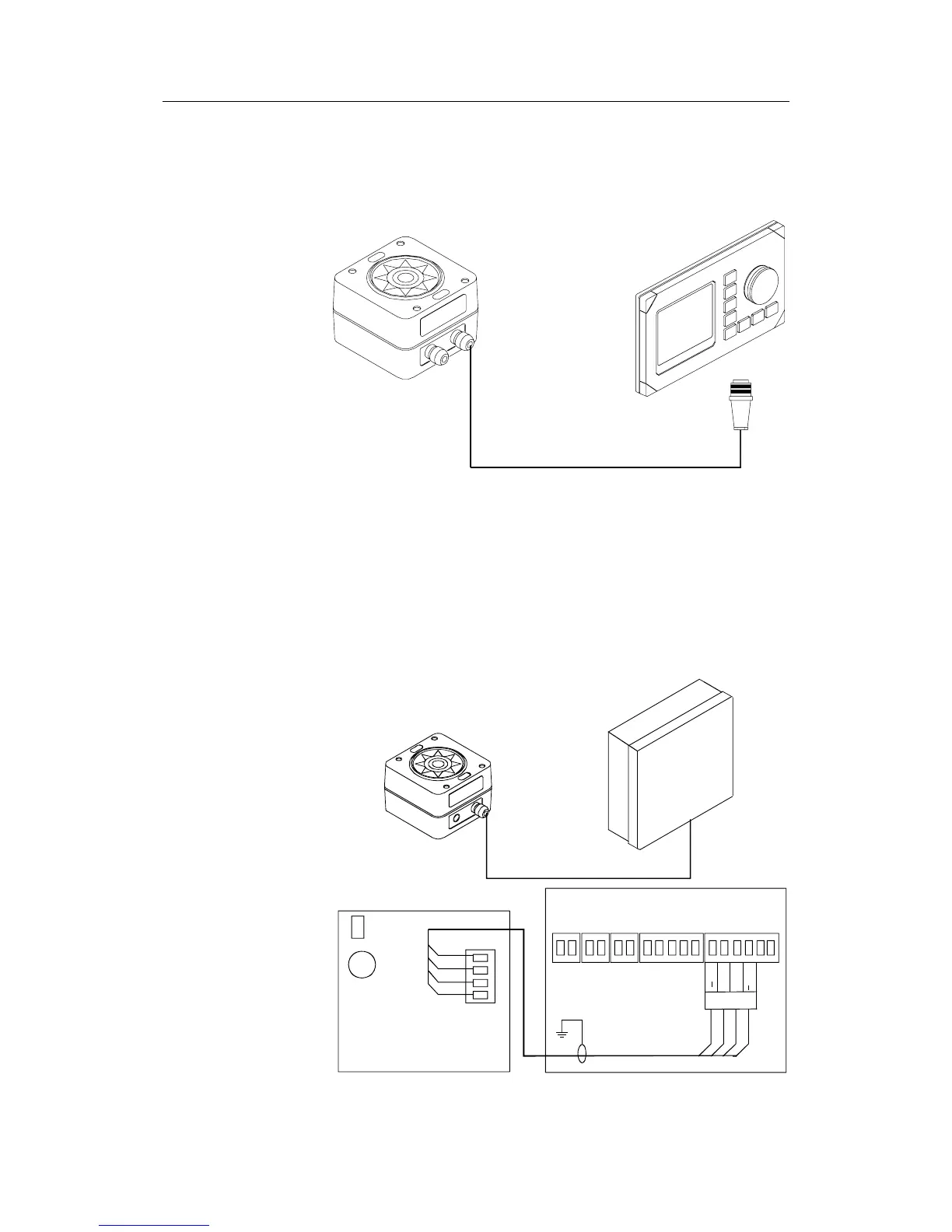

Figure 2-32 RC25 Connection to AP50 Control Unit
• Connect the Robnet connector to the AP50 Control Unit (or
GI51 or NI300X if installed).
• Alternatively, if there is no free receptacle, cut the connector
from the cable and connect the wires in parallel with the
wires going from the distribution unit to the control unit. Do
not connect the yellow and the green wires and ensure that
they do not connect with the terminal or chassis.
JD5X
DISTRIBUTION
UNIT
RATE
COMPASS
JD5X DISTRIBUTION UNIT
MAIN PCB
Robnet
Vsys+
Vsys
Gry
Pnk
PINK
GREY
PINK
GREY
WHITE
BROWN
Bus+ Bus
Bn
Wht
WHITE
BROWN
TB15
RC25
RATE
COMPASS
Figure 2-33 Alternative Connection to JD5X Distribution Unit Robnet
Terminal
