Simrad AP50 Installation Manual

Simrad AP50 Autopilot
52 20222410 / B
• Rudder / Feedback calibration
• Rudder test
• Rudder limit
• Rudder deadband
• Thruster type

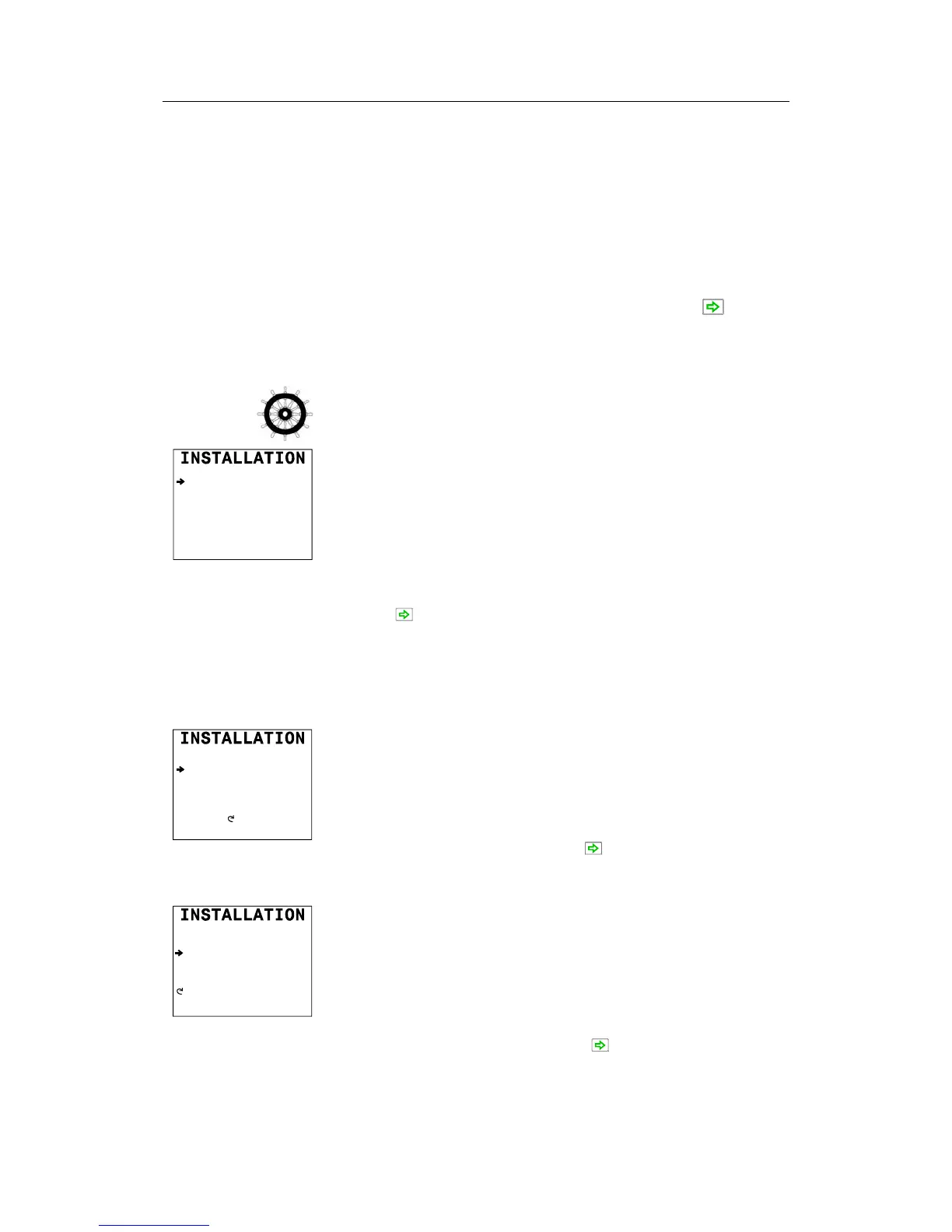

Select STANDBY mode and enter the Installation Menu as
previously described. Select "Dockside" by pressing (STBD)
button and confirm by rotating the course knob clockwise.
Master Operation
DOCKSIDE
Master operation Yes
Boat type Displacement
Boat length ---
Drive unit voltage ---
Rudd feedb cal STBD ---
Rudd feedb cal PORT ---
For vessel that comply with the European Marine Equipment
directive, one control unit must be set for Master operation, if
more than one control unit is connected. The other unit(s) is then
automatically set as a “slave”. The system can only be switched
off from the master unit (see also Operator Manual, Master
Operation).
If your system is to be wheelmarked you have to answer yes for
Master operation on one of the control units by rotating its
course knob. This applies only to commercial vessels classed to
follow the Marine Directive.
Press the (STBD) button to proceed to the next menu item.
Note ! Whenever boat type or boat length is changed, all steering
parameters will be reset to default values.
Boat Type
DOCKSIDE
Master operation Yes
Boat type Displacement
Boat length ---
Drive unit voltage ---
Rudd feedb cal STBD ---
Rudd feedb cal PORT ---
Displacement
Planing
Waterjet
The actual Boat type is selected by turning the course knob. The
options are: Displacement hull, Planing hull, and Waterjet
propelled.
The type of boat selected will affect the steering parameters and
the functions available in the autopilot system. Select the
appropriate Boat type and press the
(STBD) button.
Boat Length
DOCKSIDE
Master operation Yes
Boat type Displacement
Boat length 0-50 FEET
Drive unit voltage ---
Rudd feedb cal STBD ---
Rudd feedb cal PORT ---
0-50 FEET
40-70 FEET
60-100 FEET
90-130 FEET
120- FEET
The actual boat length is selected by turning the course knob.
The options are: 0-50 feet, 40-70 feet, 60-100 feet, 90-130 feet,
and 120- feet. For those boats that may qualify for two
categories (e.g. 45 ft.) it is recommended that faster/lighter boats
be placed in the shorter category.
The Boat length will affect the steering parameters. Select the
appropriate boat length and press the (STBD) button.
