Simrad AP50 Installation Manual

Simrad AP50 Autopilot
44 20222410 / B

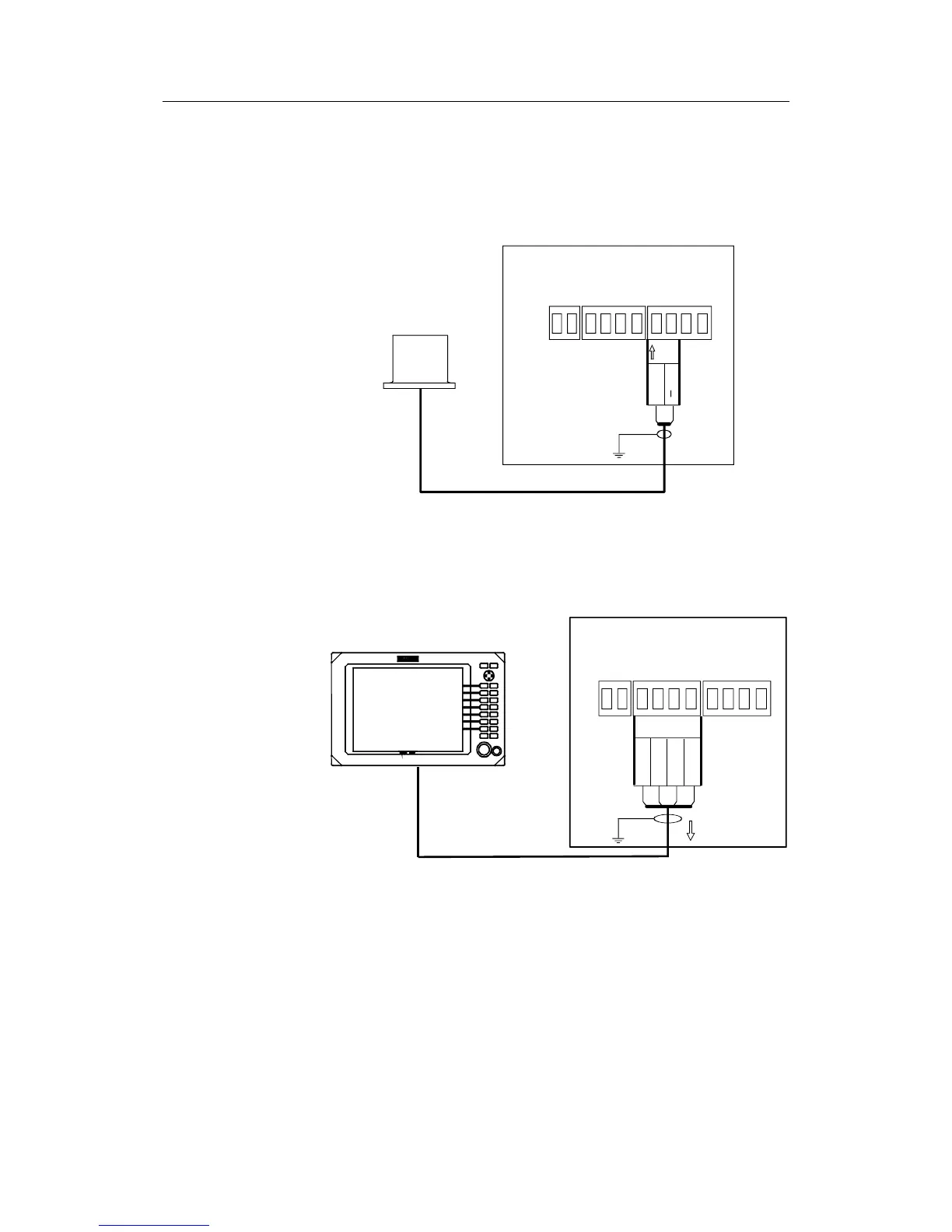

Input from “NMEA Compass”
A gyro compass or GPS compass (or other) with NMEA 0183
HDT (or HDG, HDM message) is connected to the JD5X
Distribution Unit NMEA Input2 terminal.
POWER PCB
TB6
TB7
TB8
RX2 RX2+
NMEA
Input2
JD5X DISTRIBUTION UNIT
NMEA
COMPASS
Figure 2-43 NMEA compass connection
Note ! An output of 10 Hz or faster is recommended.
Radar Clock/Data
JD5X DISTRIBUTION UNIT
POWER PCB
Radar
TB6 TB7
TB8
Data_h Data_c
Clk_h
Clk_c
RADAR
Figure 2-44 Radar Clock/Data Connections
