Simrad AP50 Autopilot
38 20222410 / B
2.13 S9 Steering Lever
Mounting
Refer to Figure 2-34. For bulkhead mounting, use the 8 bushings
enclosed with the unit. These are placed two and two against
each other and the screws are put through them. Direct contact
between S9 and a steel bulkhead is then avoided and corrosion is
prevented. The cover plate can be turned 360 degrees for the
most convenient position of cable outlet. For panel mounting
use the two mounting brackets enclosed with the unit (Figure
2-35).

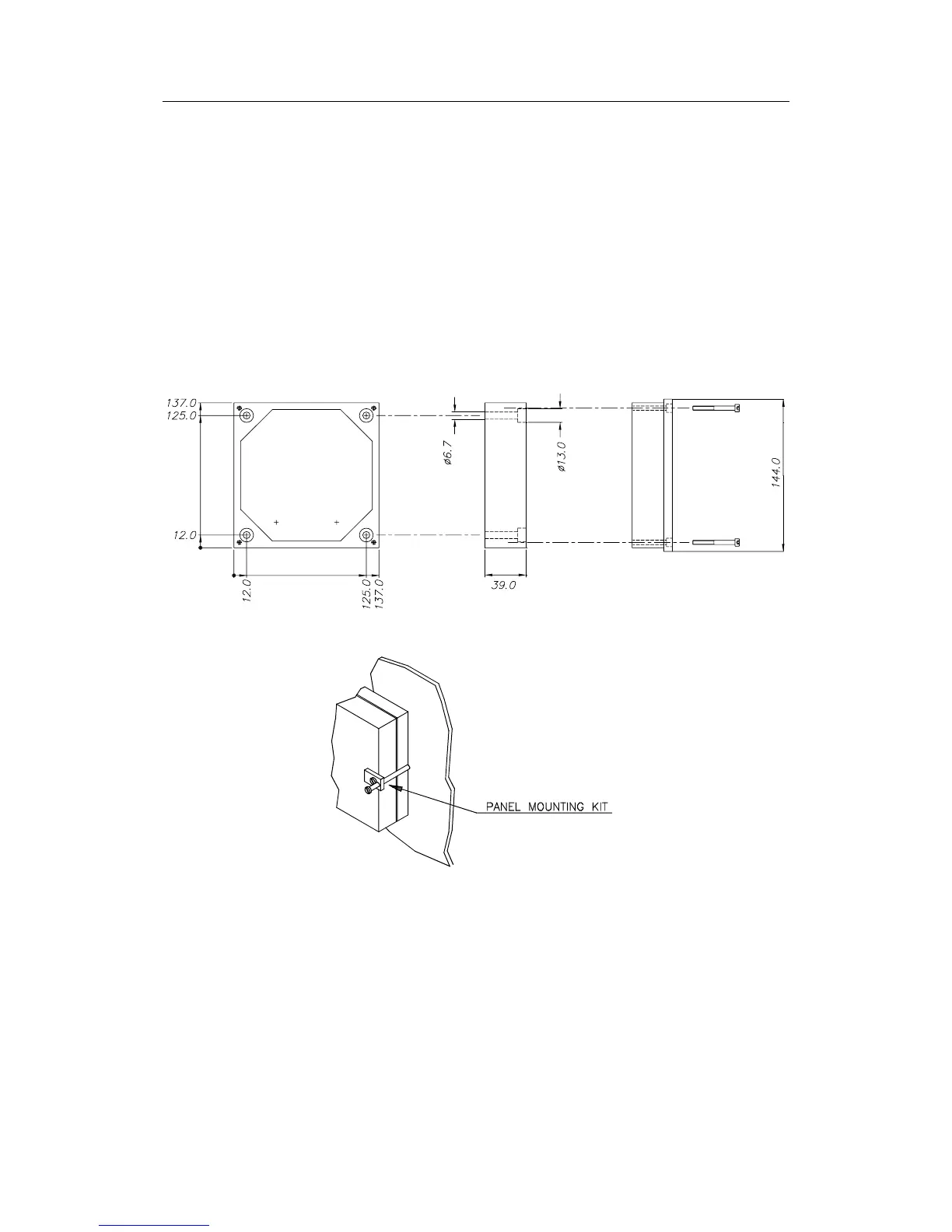

Figure 2-34 S9 Steering Lever, bulkhead mounting
Figure 2-35 S9 Steering Lever, panel mounting
Connection
If connected according to Figure 2-36, S9 can be used for NFU
steering through JD5X distribution units when the autopilot is in
STBY mode and for course change in AUTO mode.
