Simrad AP50 Installation Manual

Simrad AP50 Autopilot
42 20222410 / B
2.17 F1/2 Remote Control
The F1/2 Remote Control comes with 10 m (33 ft.) of cable and
is connected to the distribution unit as shown in Figure 2-40.
F1/2
REMOTE CONTROL
NOTE!
Disregard the color code
on the terminal label.
REMOTE
JD5X DISTRIBUTION UNIT
POWER PCB
TB1
TB2
TB3
TB5
Violet
Brown Beige
REMOTE
TB4
Stbd Port
Gnd

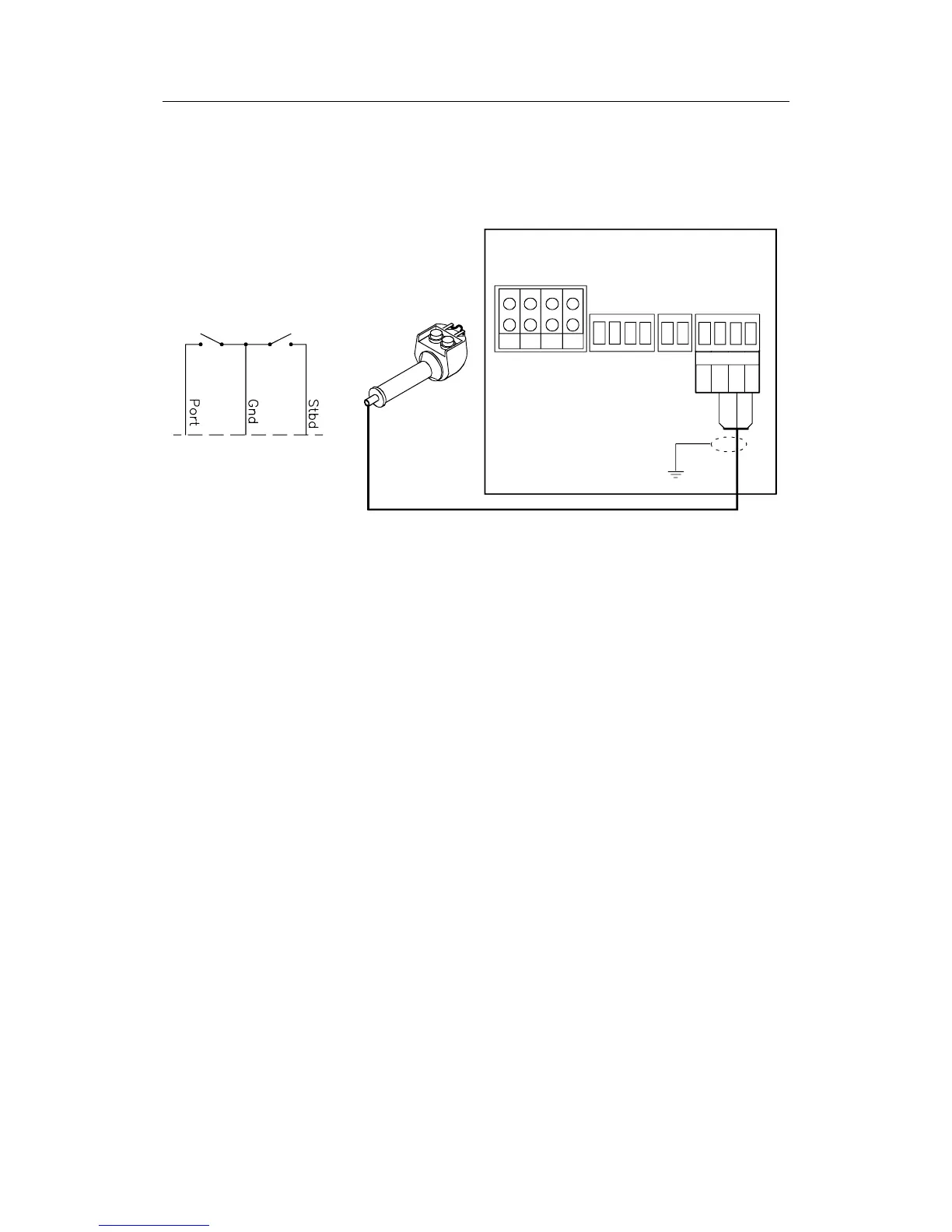

Figure 2-40 F1/2 Remote Control Connection
2.18 Interfacing to Optional Equipment (THD,
Navigation Receiver, etc.)
With the AP50 autopilot system, there are several options for
connection to other equipment for data exchange:
1. The JD5X distribution units include two NMEA input/output
ports and a Clock Data heading interface to Simrad and
Furuno radars. Only the J50-2 port (NMEA input 2) accepts
NMEA heading sentences.
2. The optional NI300X NMEA Interface (expansion) Unit
includes 4 additional NMEA input/output ports.
The following connecting diagrams illustrate the interfacing
possibilities.
Note ! See also “Interface Set-up” page 59 and the NMEA sentence
table page 112.
