Simrad AP50 Autopilot
62 20222410 / B
LANGUAGE
DOCKSIDE
INTERFACE
SEATRIAL
SERVICE
SETTINGS
SW 1.2.02
Oct 29 2004
No
Yes

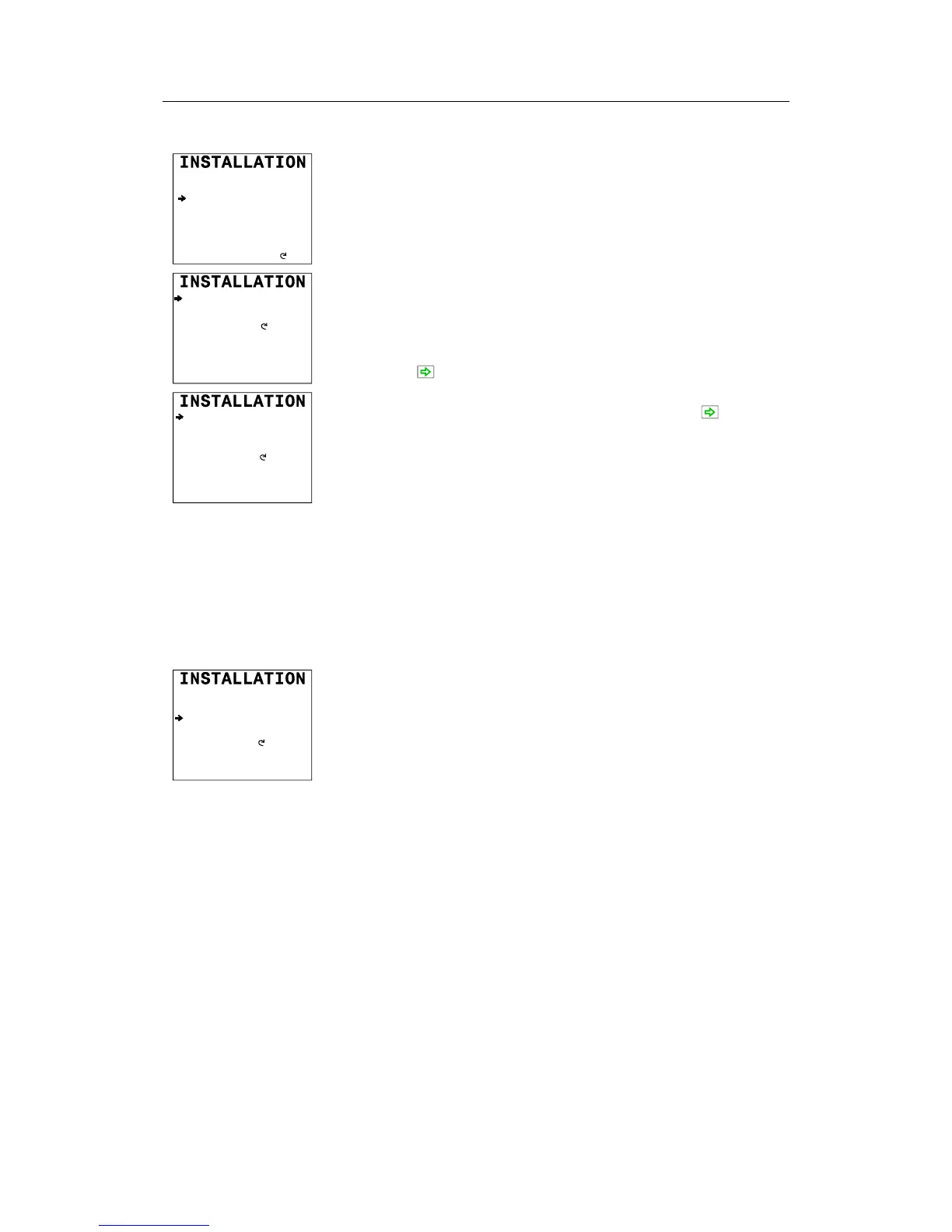

To begin Interface set-up, proceed to the Interface Set-up menu
under the Installation Menu.
To access the Interface Set-up items, turn the course knob
clockwise.
GPS1 J50-1
GPS2 -----
ECS1 -----
ECS2 -----
GYRO1 -----
GYRO2 -----
THD1 -----
THD2 -----
MAGN1 -----
MAGN2 -----
FLUX1 ROBNET
FLUX2 J50
-----
J50-1
J50-2
NI300-1
NI300-2
NI300-3
NI300-4
Input:
WIND J50-1
DEPTH
J50-1
LOG
J50-1
INSTR J50-1
RADAR SIMRAD
-----
J50-1
J50-2
NI300-1
NI300-2
NI300-3
NI300-4
Input:
The display now shows the first name on the list. Select the
hardware port where that device is connected by turning the
course knob until the appropriate hardware port is displayed.
Proceed to the names on the list that should be assigned by
pressing the (STBD) button. Assign the appropriate hardware
ports by turning the course knob, or exit from the menu by
progressing through the list of names by pushing the (STBD)
button.
Note ! Upon completion of the Interface Set-up, the names of items to
which you have assigned hardware ports will be available as
sources of data for compass, navigation, and speed in the User
Set-up Menu. It is recommended that you access the User Set-up
Menu directly after completing the Interface Set-up to select the
desired data. Refer to the Operator Manual for details on
changing the items in the User Set-up Menu.
WIND J50-1
DEPTH
J50-1
LOG
J50-1
INSTR J50-1
RADAR SIMRAD
Output
1 Hz
5 Hz
VDR
1 Hz
The standard NMEA output rate is 1 Hz. If INSTR J50-1, is set
to 5 Hz, the output port, TX1, will have an output rate of 5 Hz
for HDG or HDT (heading) messages. NMEA OUTPUT 2 on
the JD5X has a constant output rate of 10 Hz for HDG or HDT
(see
Table 3-2 on page 61. Both port 1 and 2 are still sending
HDM at 1 Hz. HDM is an obsolete sentence, but some older
equipment may still use it (see table on page
113).
If INSTR is set to VDR, rudder command, response and heading
data as defined in IEC61996, is provided at 5 Hz in the HTD and
RSA sentences.
