Simrad GC80/GC85 Expanded Gyro Compass
26 20221529 / C

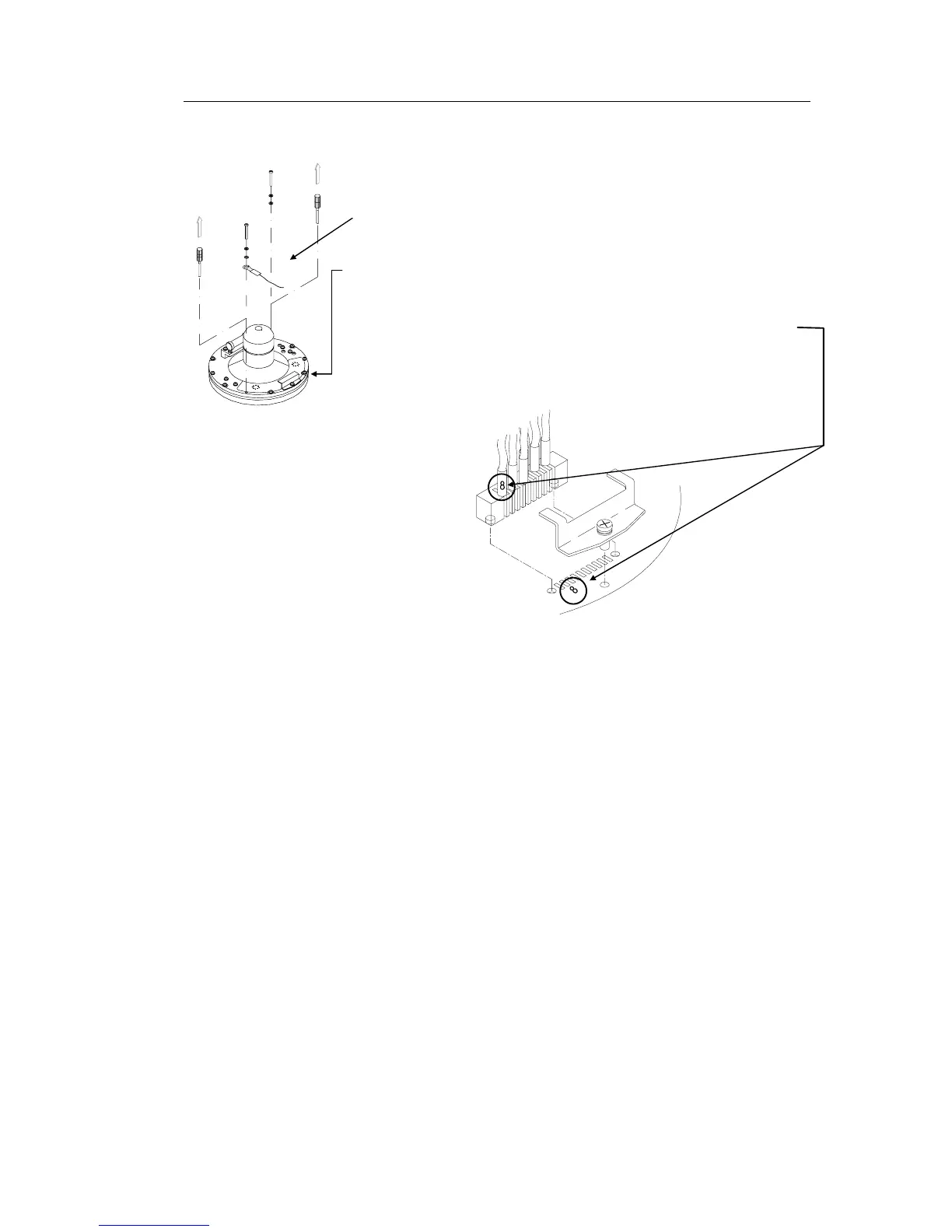

10 Replace the assembly jigs with the two remaining screws
after placing the ground wire as shown on the figure.
11 Loosen the screw on the plug-holder on the Sensitive
element, and lift the holder 2-3 mm upwards.
12 Connect the plug to the connectors on the Sensitive
element’s pcb according to the labelling on the pcb and on
the wires. Make sure that the pin guides on the plug are
properly entered, and that the wires are not twisted.
13 Firmly tighten the screw on the holder.
