MAINTENANCE
20221529 / C 25
8 Tilt the Horizontal ring to the side where the plug is
located, and carefully put the sensitive element into the
ring.
- The socket on the Sensitive element should be located
right above the plug attached to the Horizontal ring.

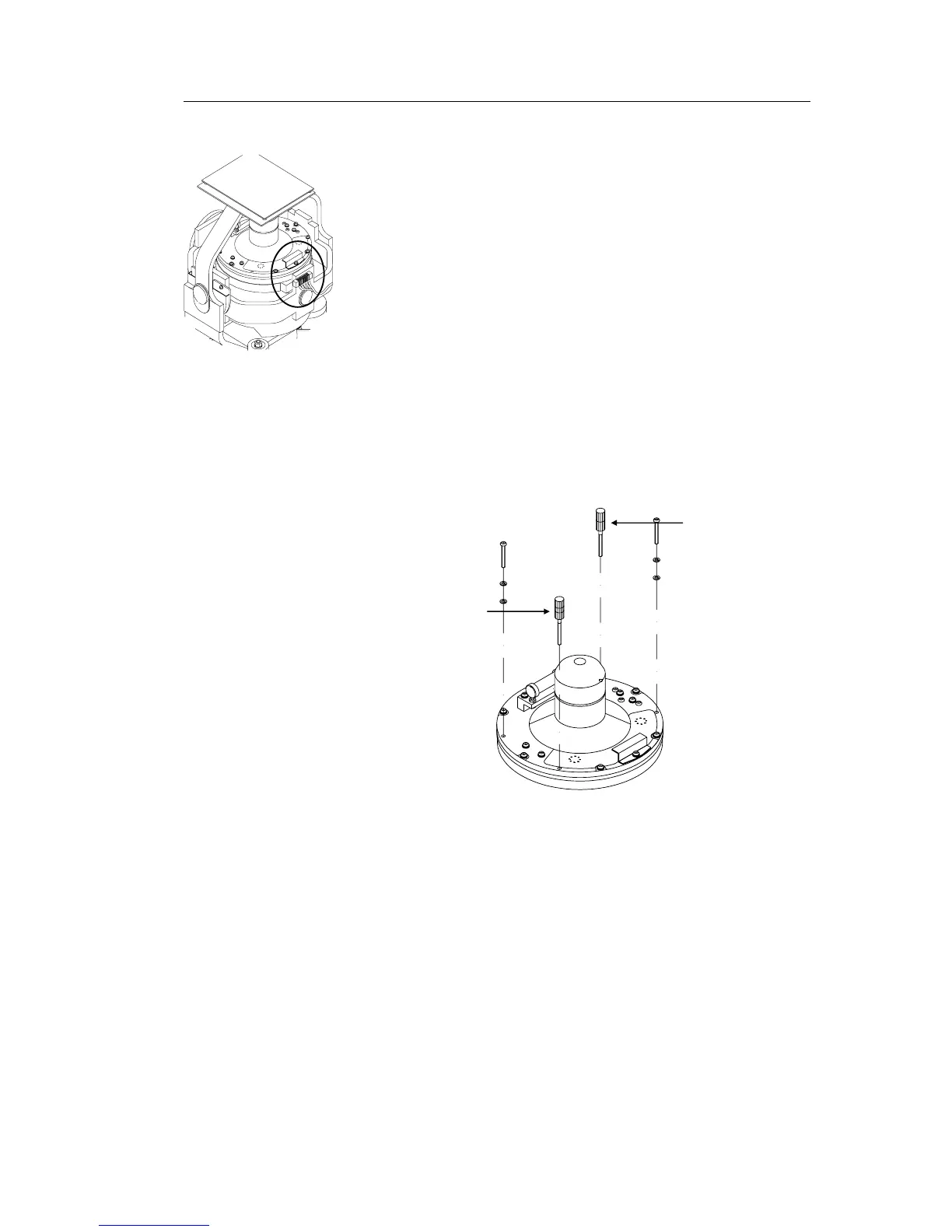

9 Position the Sensitive element on the Horizontal ring by
putting the assembly jigs into the holes as indicated on the
figure below. Observe the rings on the jigs to ensure
proper positioning. Insert and fasten the two screws in the
other holes.
ASSEMBLY JIG
WITH 1 CIRCLE
ASSEMBLY JIG
WITH 2 CIRCLES
