Simrad GO XSE Series Installation Manual

2 Positive wire (red)
3 Ground wire (black)
4 Power control wire (yellow)
5 Alarm wire (blue)
Power Control to ignition
Device will turn on once ignition is turned on to start engines.
Connect the yellow wire to the accessories output of the engine key
switch.
Ú
Note: Engine start batteries and house batteries should have a
common ground connection.
+
_
5
1
2
3
4
6

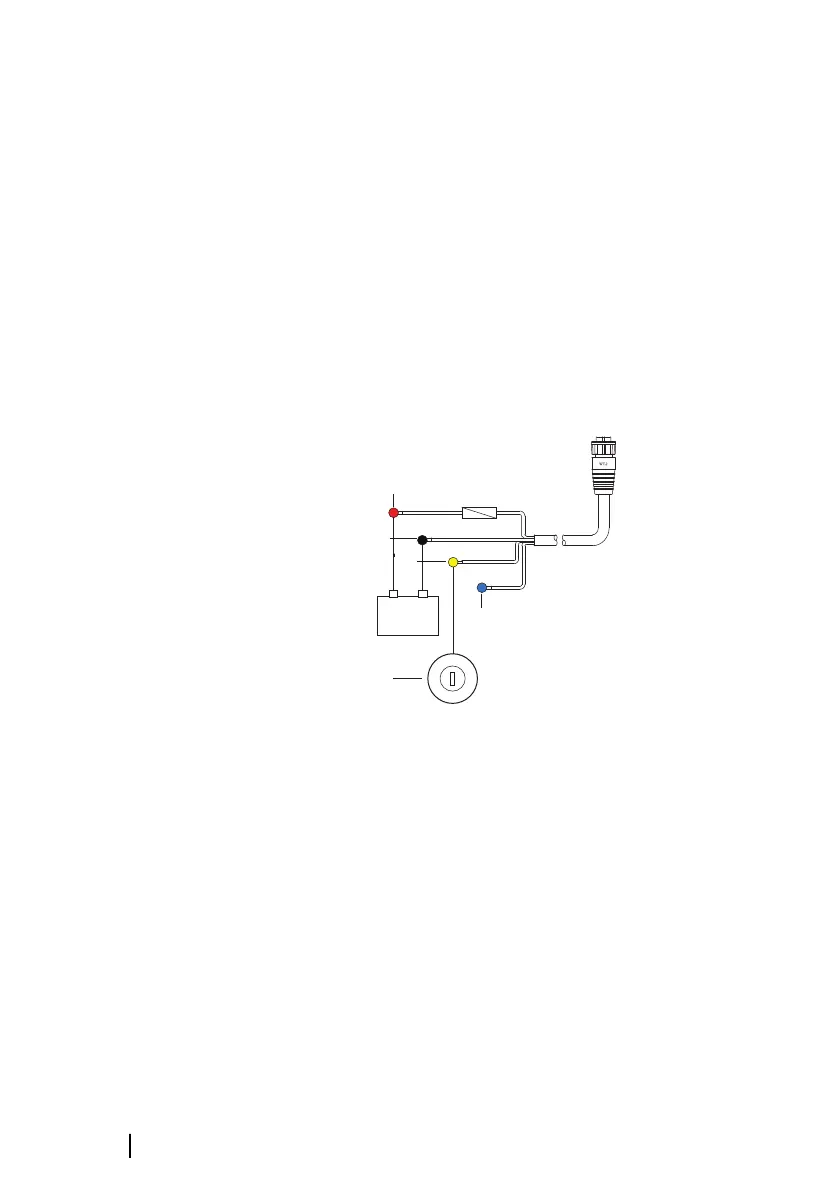

1 Power cable connector to unit
2 Positive wire (red)
3 Ground wire (black)
4 Power control wire (yellow)
5 Alarm wire (blue)
6 Ignition switch
External alarm
Ú
Note: An external alarm cannot be connected to the 5" unit.
26
Wiring | GO XSE/XSR Installation Manual
