Simrad GO XSE Series - Radar Connector

Pin Purpose
8 Temp +
9 Transducer ID
Radar connector
Ú
Note: The 5" unit does not have a Radar port.
The Radar port allows connecting the unit to your radar scanner
using a 5 pin Ethernet connector.
The Radar port can also be used for transfer of data and
synchronization of user created data. It is recommended that each
device in the system is connected to the Ethernet network. No
special setup is required for establishing an Ethernet network.
Ú
Note: Only the 12" unit can share echosounder data and charts
over the Ethernet network.
1
2
3
4
5

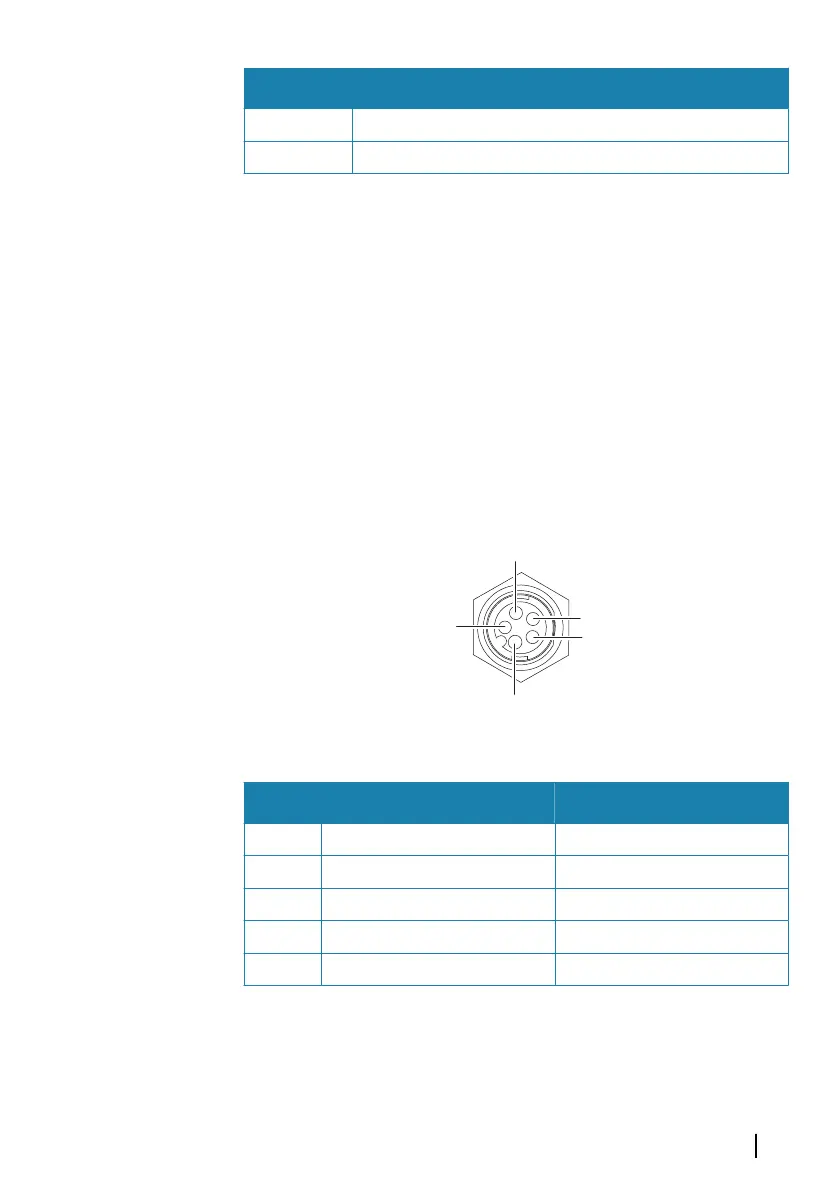

Unit socket (female)
Key Purpose Color
1 Transmit positive TX+ Blue/White
2 Transmit negative TX- Blue
3 Receive positive RX+ Orange/White
4 Receive negative RX- Orange
5 Shield Bare
Wiring | GO XSE/XSR Installation Manual
31
