Simrad GO XSE Series Installation Manual

Ú
Note: Do not connect the NMEA 2000 power cable to the same
terminals as the engine start batteries, autopilot computer, bow
thruster or other high current devices.
Echosounder
Ú
Note: A 7-pin transducer cable can be connected to a 9-pin
port using a 7-pin to 9-pin adaptor cable. However, if the
transducer has a paddle wheel speed sensor, the water-speed
data will not be displayed on the unit.
Supports:
• Sonar / CHIRP Sonar
• DownScan
• SideScan
• ForwardScan
• Active Imaging/Active Imaging 3-in-1/TotalScan/StructureScan

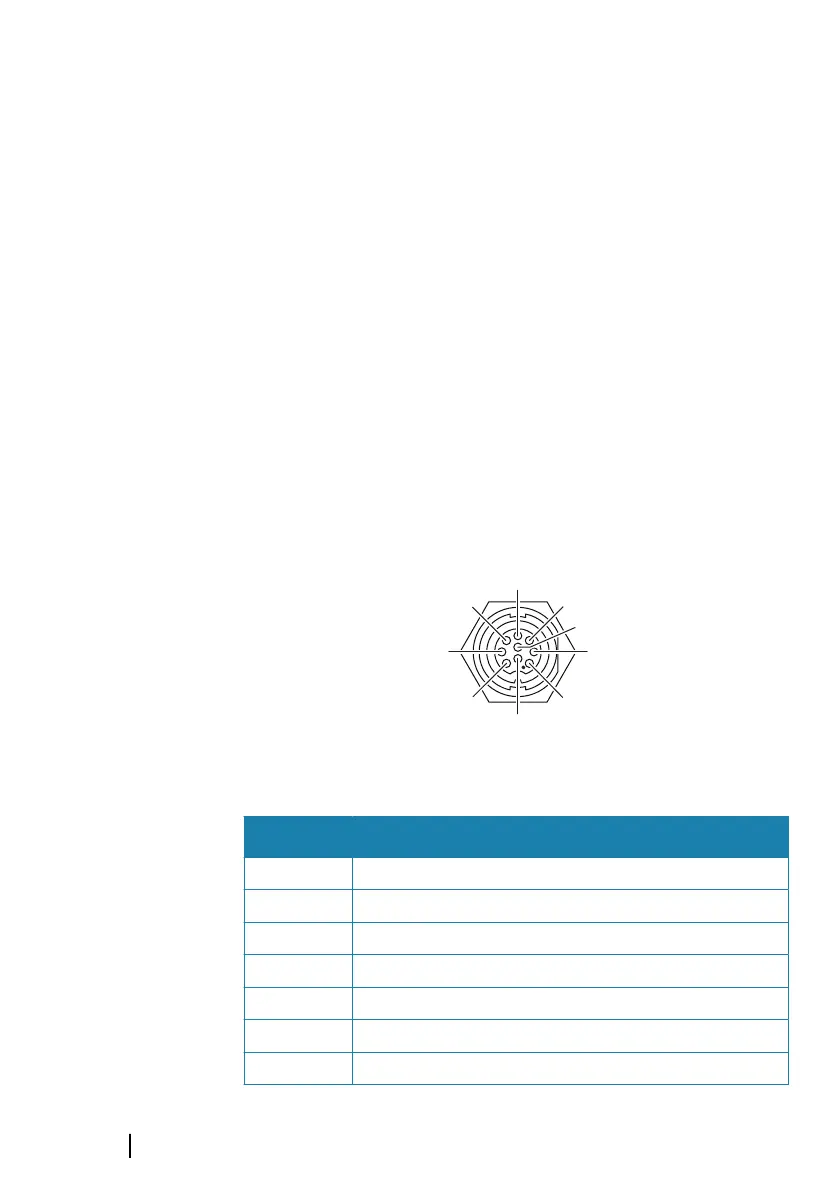

Connector details
6
7
9
1
3
4
5
2
8
Unit socket (female)
Pin Purpose
1 Drain/Ground
2 Not used
3 Not used
4 Transducer -
5 Transducer +
6 Not used
7 Not used
30
Wiring | GO XSE/XSR Installation Manual
