Simrad GO XSE Series Installation Manual

A
A
A
CC
D
B
B
B
B
E
A
A NMEA 2000 device
B Drop-cable
C Terminator
D Power supply
E Backbone

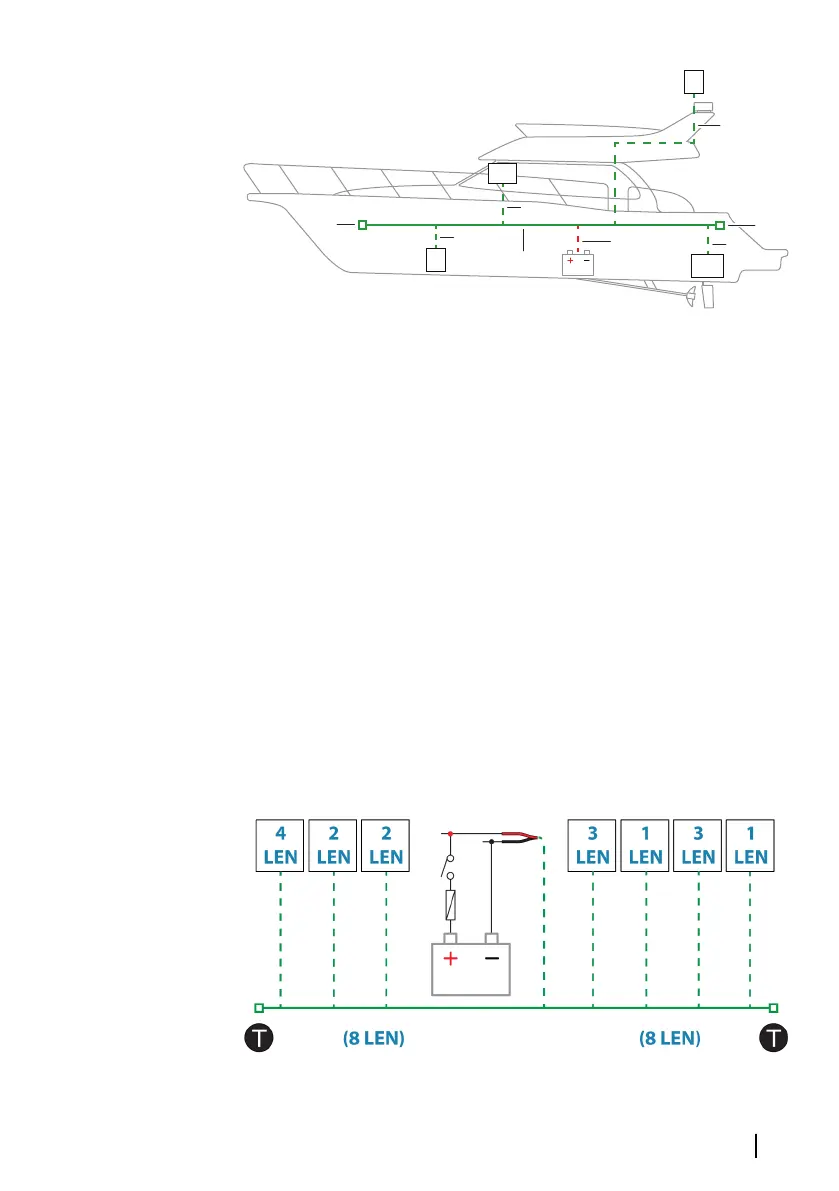

Powering the NMEA 2000 network
The network requires its own 12 V DC power supply, protected by a
3 A fuse.
For smaller systems: connect power at any location in the backbone.
For larger systems: connect power at a central point in the
backbone to balance the voltage drop of the network. Make the
installation such that the load/current draw on each side of the
power node is equal.
Ú
Note: 1 LEN (Load Equivalency Number) equals 50 mA current
draw.
Wiring | GO XSE/XSR Installation Manual
29

Simrad GO XSE Series Specifications

General

Touchscreen	Yes
Chartplotter	Yes
Resolution	1280 x 720 pixels
Chart Compatibility	C-MAP, Navionics
Radar Compatibility	Compatible with Simrad HALO radar
Card Slots	MicroSD card slot
Operating Voltage	12V DC
Operating Temperature	-15°C to 55°C
Weight (7")	0.9 kg
Display Size	7", 9"
GPS	Built-in GPS
Sonar	CHIRP
