Simrad GO XSE Series Installation Manual

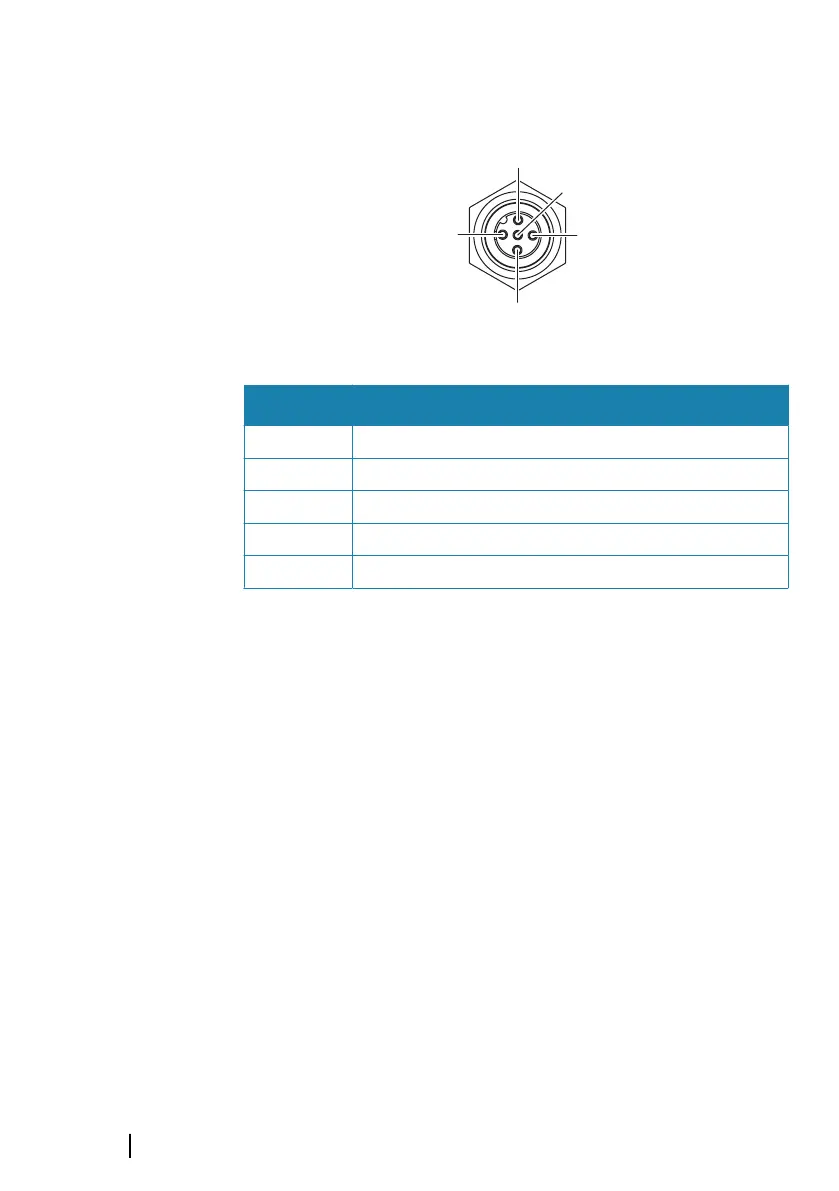

Connector details
2
1
3
4
5
Unit socket (male)
Pin Purpose
1 Shield
2 NET-S (+12 V DC)
3 NET-C (DC negative)
4 NET-H
5 NET-L
Plan and install an NMEA 2000 network
An NMEA 2000 network consists of a powered backbone from
which drop cables connect to NMEA 2000 devices. The backbone
needs to run within 6 m (20 ft) of the locations of all products to be
connected, typically in a bow to stern layout.
The following guidelines apply:
• The total length of the backbone should not exceed 100 meters
(328 ft).
• A single drop cable has a maximum length of 6 meters (20 ft).
The total length of all drop cables combined should not exceed
78 meters (256 ft).
• A terminator must be installed at each end of the backbone. The
terminator can be a terminator plug or a unit with a built-in
terminator.
28
Wiring | GO XSE/XSR Installation Manual

Simrad GO XSE Series Specifications

General

Touchscreen	Yes
Chartplotter	Yes
Resolution	1280 x 720 pixels
Chart Compatibility	C-MAP, Navionics
Radar Compatibility	Compatible with Simrad HALO radar
Card Slots	MicroSD card slot
Operating Voltage	12V DC
Operating Temperature	-15°C to 55°C
Weight (7")	0.9 kg
Display Size	7", 9"
GPS	Built-in GPS
Sonar	CHIRP
