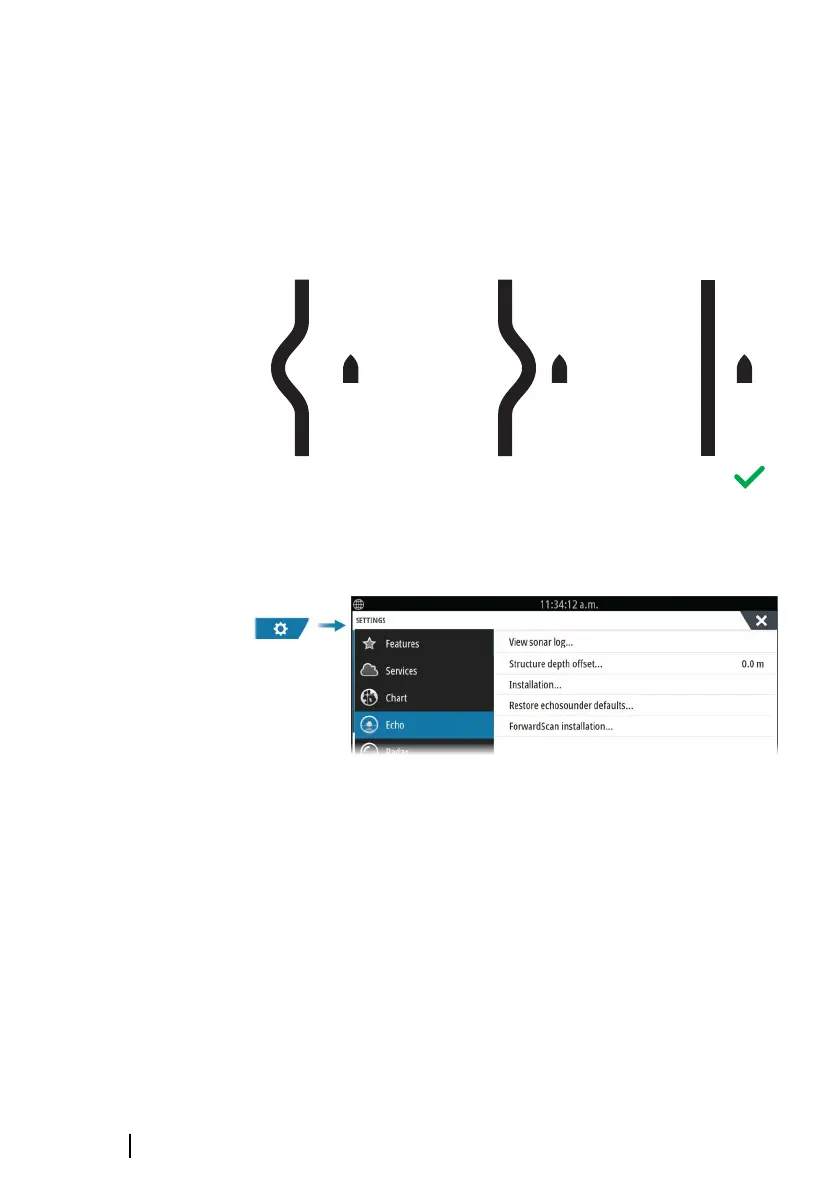

Adjust the range offset as below when the vessel is about 45 to 90
m (50 to 100 yards) from a straight-walled jetty or similar feature
that produces a straight line echo on the display.
1 Position the vessel in relation to the jetty.
2 Adjust the range offset to make the jetty echo appear as a
straight line on the display.
Echosounder settings
View sonar log
Used to view recordings. The log file is displayed as a paused image,
and you control the scrolling and display from the menu.
You can use the cursor on the image, measure distance, and set
view options as on a live image. If more than one channel was
recorded in the selected log file, you can select which channel to
display.
Structure depth offset
All transducers measure water depth from the transducer to the
bottom. As a result, water depth readings do not account for the
40
System setup | GO XSE/XSR Installation Manual
