Video
The video function allows you to view videos or camera sources on your system.
Ú
Note: The video images are not shared from the Ethernet network. You can only view
the video on the unit connected to the video source.
If a compatible FLIR M-series camera is available on the Ethernet network, you can display the
video and control the camera from the system.
For information about how to connect the camera, see the separate NSO evo3 Installation
manual.

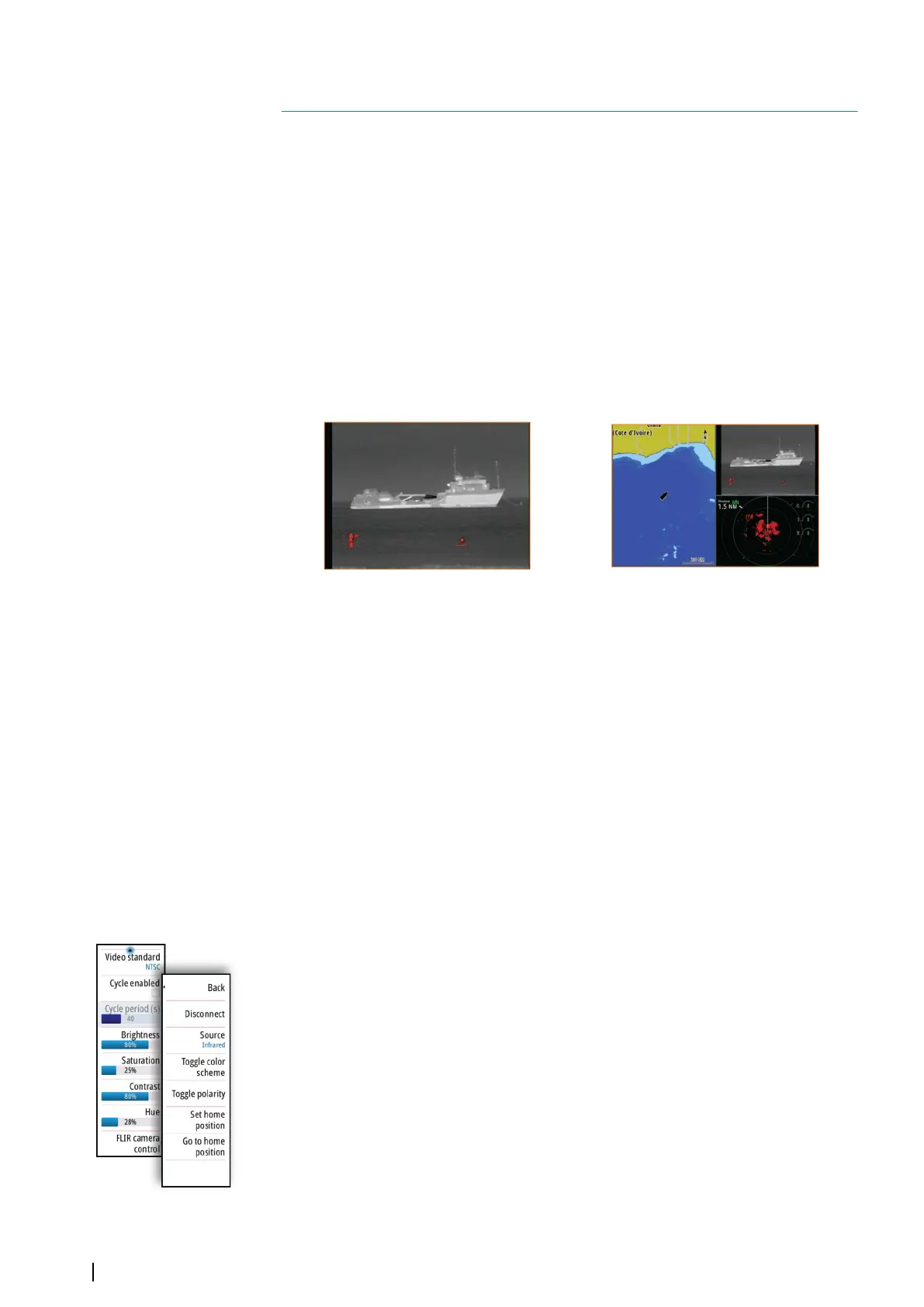

The Video panel
A video panel can be set up as a single panel, or as one of the panels on a multiple panel
page.
The video image is proportionally scaled to fit into the video panel. Areas not covered by the
image are colored black.
Setting up the video panel
Video source
The unit supports two video input channels. You can select to view one channel only, or to
cycle the image between available video cameras.
The unit also supports video input through the HDMI input connector.
The cycle period can be set from 5 to 120 seconds.
Video standard
NSO evo3 supports NTSC and PAL video. Check the local video standard or the standard of
your cameras.
Adjusting the video image
You can optimize the video display by adjusting the video image settings. The settings are
adjusted individually for each video source. Default for all settings: 50%.
FLIR camera control
When the connection is established to a compatible FLIR camera, the menu changes to
include access to FLIR camera controls.
Ú
Note: You can take over camera control from any NSO evo3 connected to the Ethernet
network.
Establishing connection with the FLIR video camera
When a video panel is active, the unit automatically recognizes the compatible FLIR camera if
it is available on the Ethernet network.
Ú
Note: When there is a DHCP server present on the Ethernet network, the FLIR camera
needs to be configured and set to have a Static IP Address before the connection can be
established. For instructions on how to configure your specific FLIR camera model, refer
to FLIR documentation.
Ú
Note: Only one FLIR camera can be connected to the Ethernet network.
19
122
Video| NSO evo3 Operator Manual
