Depth palette
Controls the Depth palette used on the map.
Paper chart
Changes the appearance of the map to a paper chart style.
Safety depth
Insight and C-MAP charts use different shades of blue to distinguish between shallow (lighter
shades) and deep (darker shades) water. After enabling Safety depth, specify the
desired safety depth limit. The Safety depth sets the limit at which depths will be
drawn without blue shading.
Depth filter
Filters out depth values shallower than the selected depth filter limit.
Shading
Shades different areas of the seabed, depending on the selected Shading category.
Ú
Note: Composition and Vegetation shading are not applicable to C-MAP charts.
Depth 1 and Depth 2
Depth presets that shade different depths in different colors.
Custom

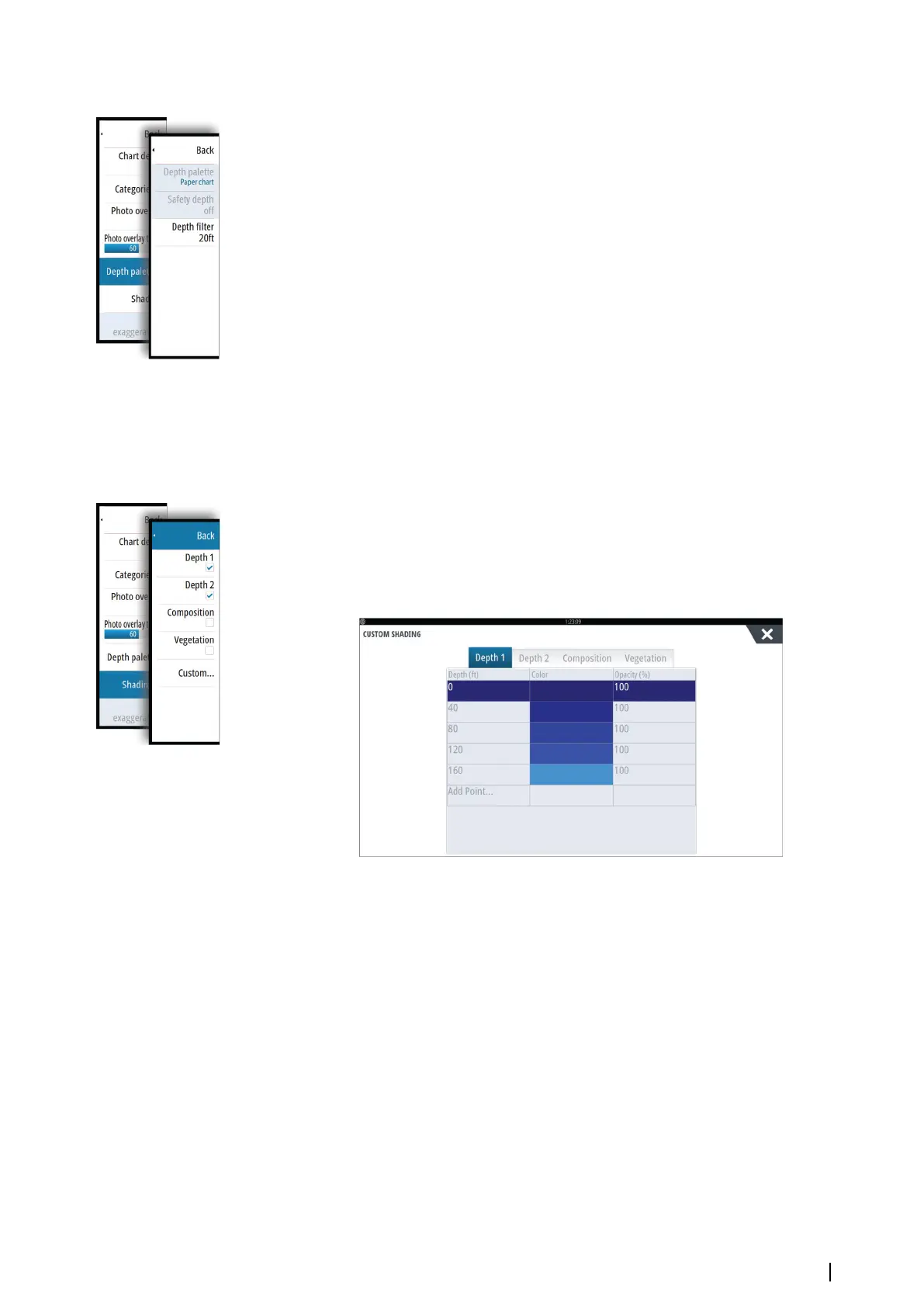

You can adjust the depth threshold, color and opacity (transparency) of color shading for
Depth 1 and Depth 2.
3D exaggeration
Graphical settings that are available in 3D mode only. Exaggeration is a multiplier applied to
the drawn height of hills on land, and troughs in water to make them look taller or deeper.
Ú
Note: This option is grayed out if the data is not available in the map card inserted.
Navionics charts
Some Navionics features require the most current data from Navionics. For those features, a
message is displayed stating that the feature is unavailable if you do not have the
appropriate Navionics charts or chart card inserted. For more information on what is required
for these features, refer to www.navionics.com.
You can also get a message if you try to use a restricted feature when the Navionics chart
card is not activated. To activate the card, contact Navionics.
