Simrad R2009 User Manual

• True motion: the reference is geographic (e.g. a coastal line or current own vessel position)
• Relative motion: the EBL follows a moving reference (own vessel or a moving target)
The markers' line width indicates whether the marker is in edit mode (bold lines) or at a fixed
position (thin lines).

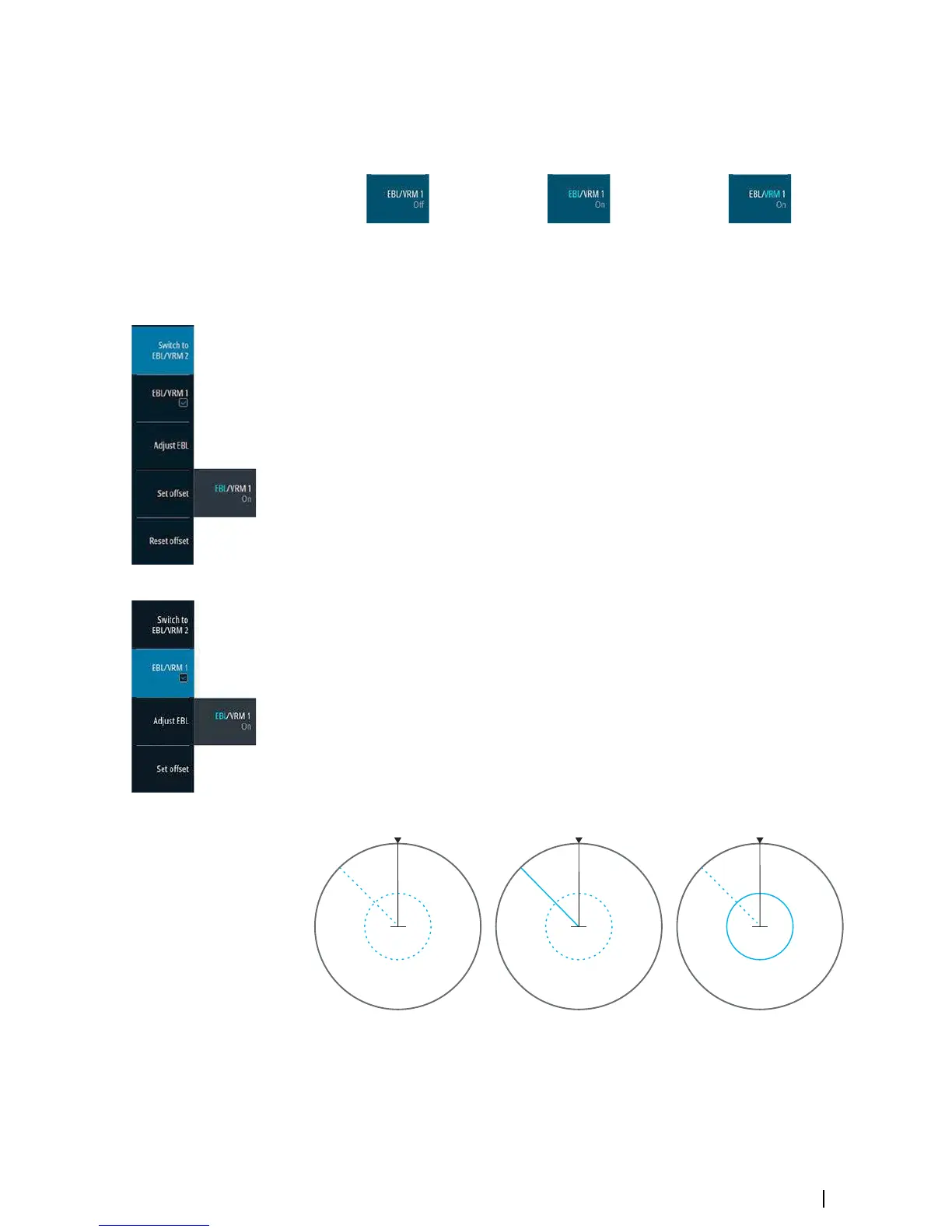

EBL/VRM1 OFF,
function not active
EBL/VRM1 ON,
EBL adjustable by rotary knob
EBL/VRM1 ON,
VRM adjustable by rotary knob
The EBL/VRM pop-up
You display the EBL/VRM pop-up by pressing the EBL/VRM softkey twice, or by re-pressing
the softkey when the function is active.
The content of the pop-up depends on status of the active EBL/VRM. The example shows the
pop-up when active EBL/VRM is offset.
The adjustable parameter is indicated with blue text in the softkey.
From the pop-up you can:
• switch between active EBL/VRM 1 and EBL/VRM 2 marker
• turn on and off displaying of the active marker
• switch between adjusting EBL and VRM for the active marker. You can also switch
between adjustable parameter by pressing the rotary knob
• set offset for active marker
• reset an offset marker to vessel position
Turning the EBL/VRM markers on and off
Both EBL/VRM markers are by system startup turned off.
• Turn ON the selected EBL/VRM by pressing the EBL/VRM softkey once
• Switch between EBL/VRM 1 and EBL/VRM 2 in the function's pop-up
• Turn OFF the selected EBL/VRM by pressing the EXIT key. Repress the EXIT key to turn off
the second marker if this is on.
• Leave the EBL/VRM function with the marker ON by pressing one of the other softkeys
You can also turn the EBL/VRM marker on and off from the function's pop-up.
Adjusting the EBL/VRM marker
The markers' line width indicates whether the marker is in edit mode or at a fixed position.
When in edit mode the adjustable parameter is bold.
EBL/VRM1 ON,
function not in edit mode
EBL/VRM1 ON,
EBL adjustable by rotary knob
EBL/VRM1 ON,
VRM adjustable by rotary knob
When an EBL/VRM marker is in edit mode, the following options are available for adjusting
the marker:
• use the arrow keys to move the EBL/VRM intersection
• turn the rotary knob to adjust the adjustable parameter (bold line and blue text in softkey)
Navigation tools | R2009/R3016 User manual
31
