Singer 5050 - Inserling a Bobbin

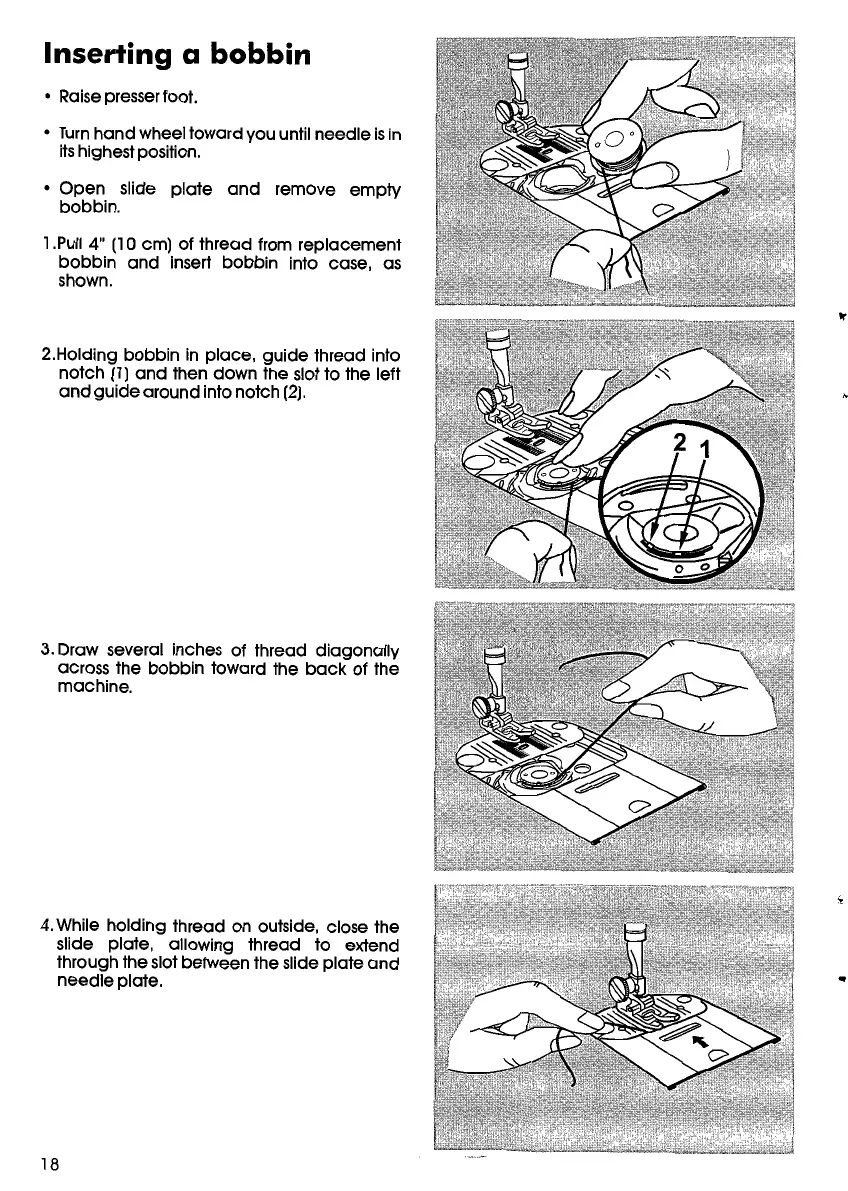

Inserting a bobbin
• Raisepresserfoot.
•
Turn hand wheel toward vou until needle isin
itshighestposition.
• Qpen slide plate and remove empty
bobbin.
1.Pull 4" (10 cm) of thread from replacement
bobbin and insert bobbin into case, as
shown.
2.Holding
bobbin in place, guide thread into
notch (1) and then down the slot to the left
and guide around into notch (2).
3. Draw several inches of thread
diagonally
across the bobbin toward the back of the
machine.
4. While holding thread on outside, close the
slide plate, allowing thread to extend
through the síot
between the slide plate and
needle plate.
18
